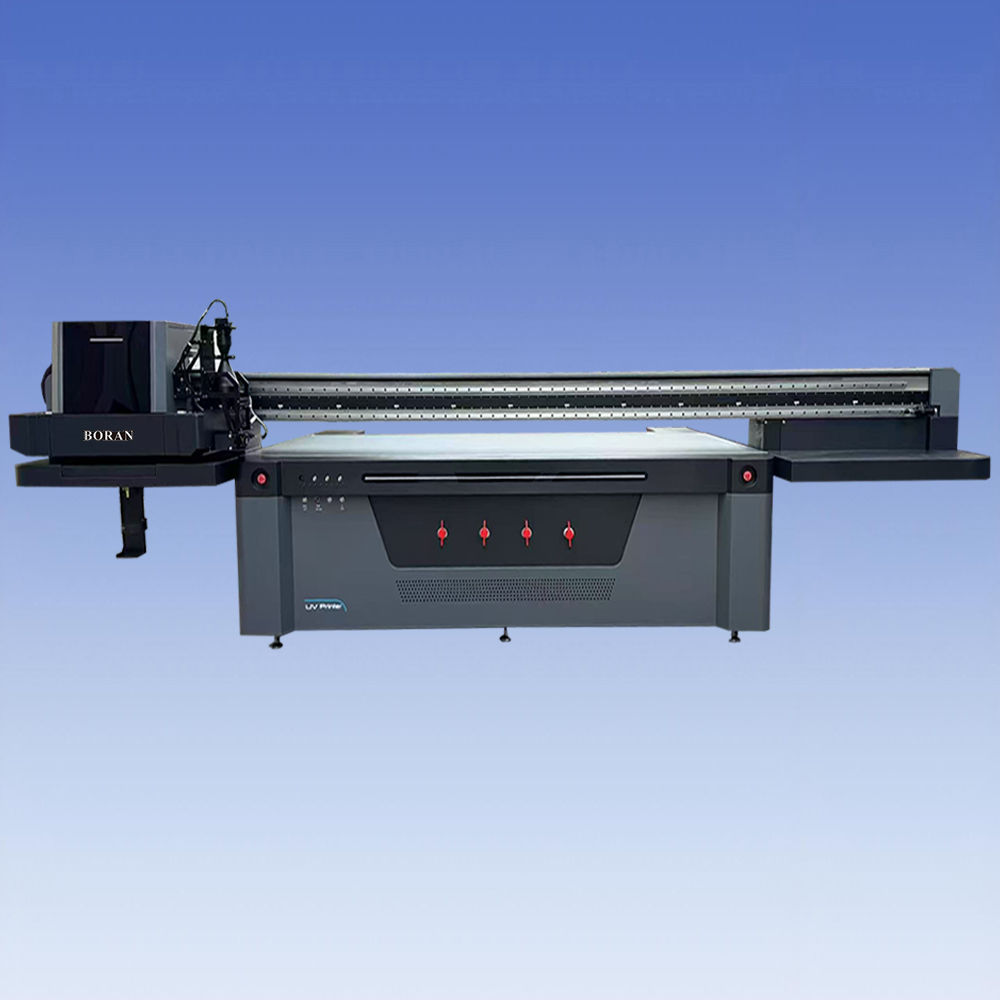

1. visual positioning uv flatbed printer.jpg

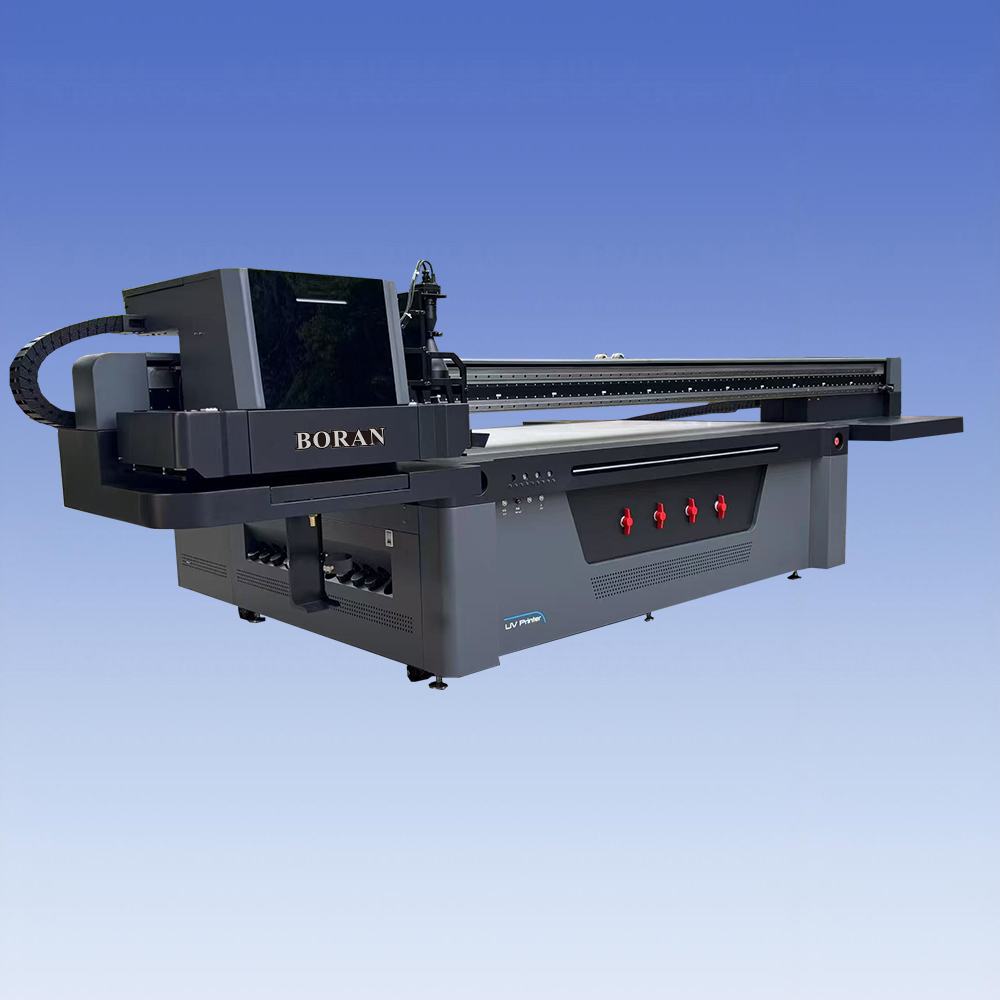

2.visual positioning 2513 uv flatbed printer.jpg

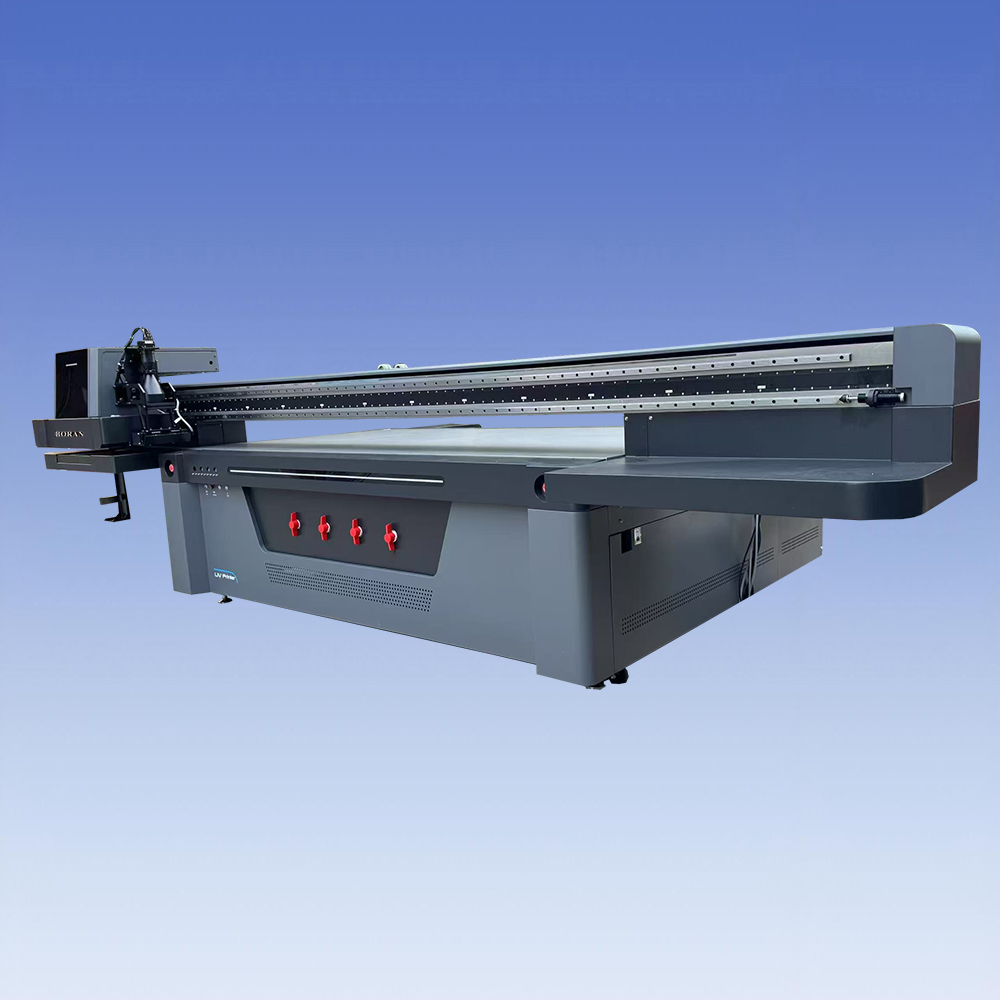

3.visual positioning 2513 uv printer.jpg

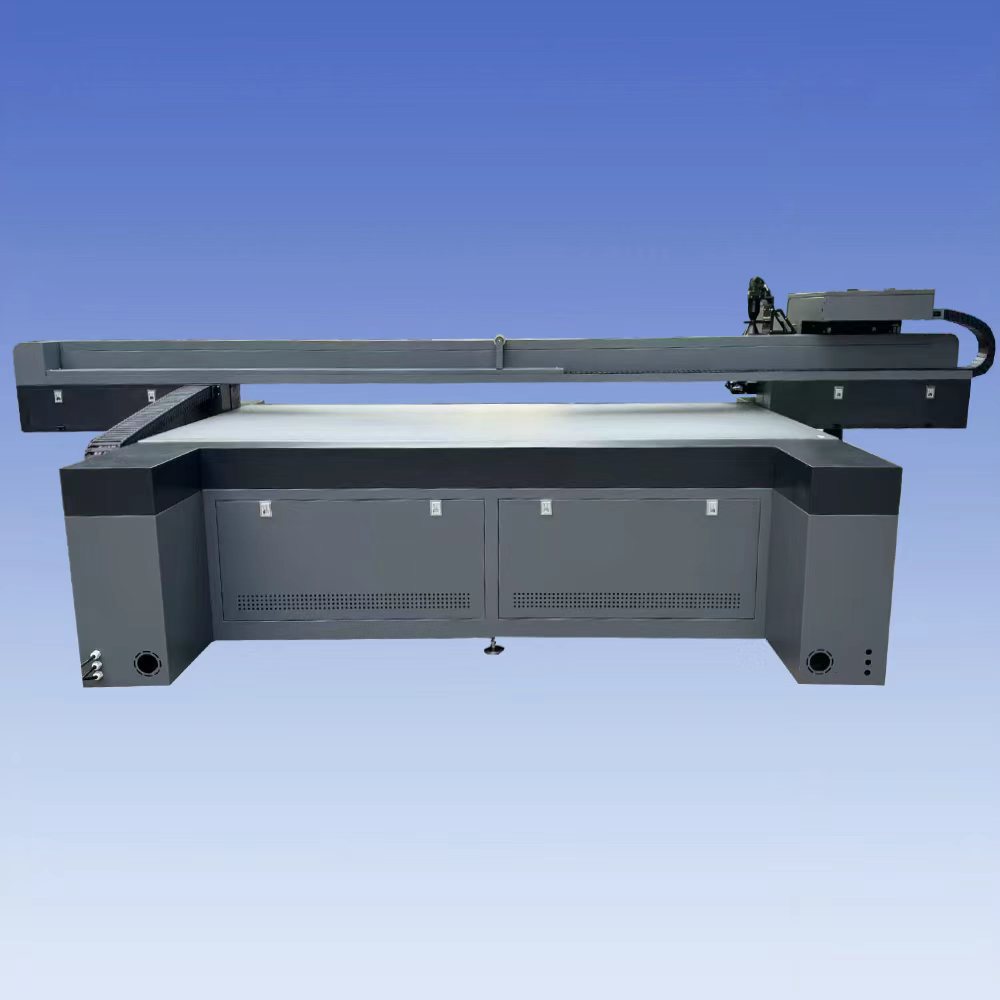

4. visual positioning uv printer.jpg

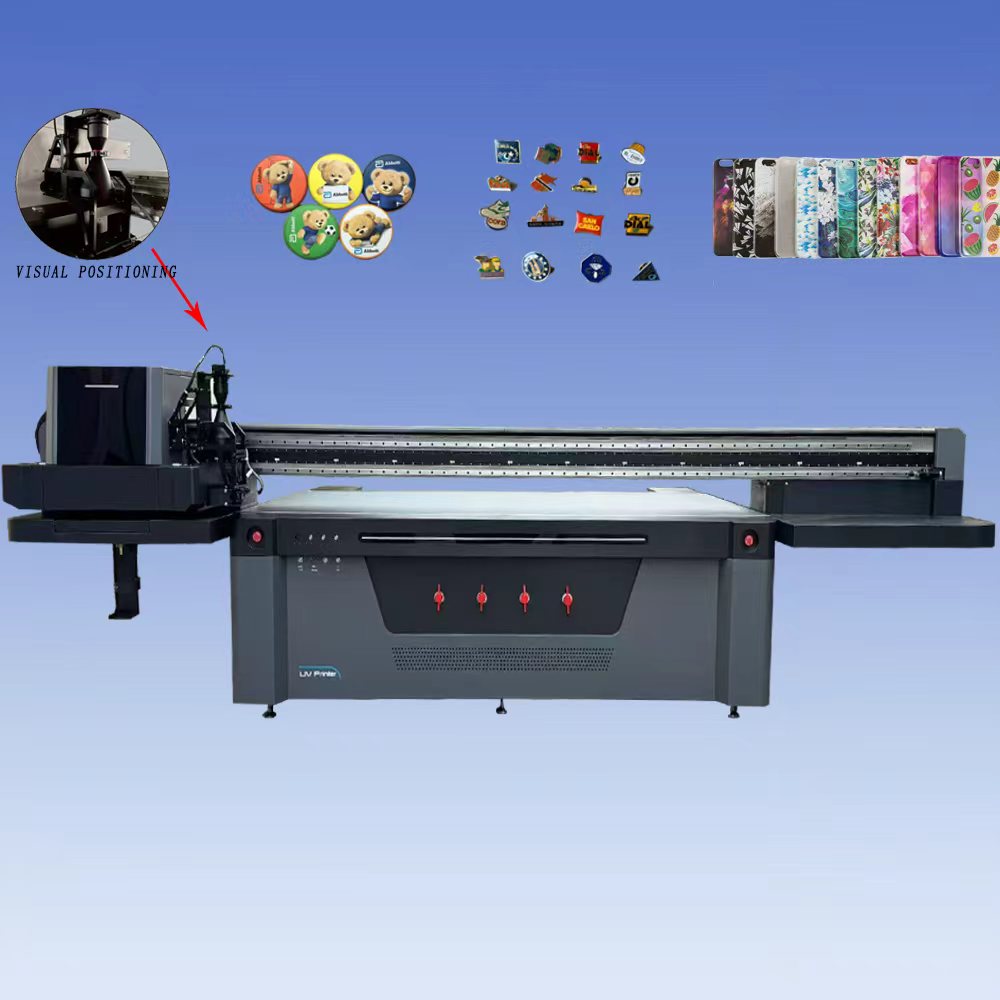

5. application of 2513 uv printer.jpg

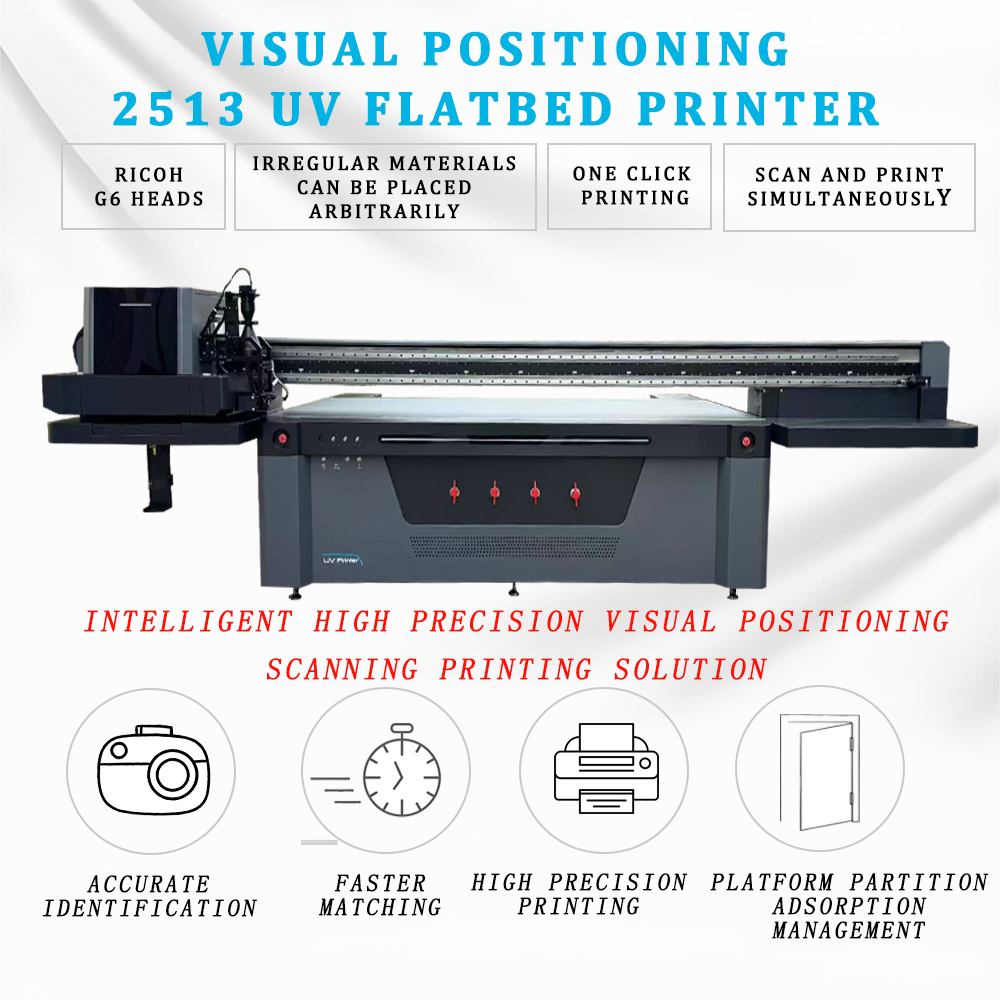

VISUAL POSITIONING 2513 UV FLATBED PRINTER

VISUAL POSITIONING 2513 UV Flatbed Printer

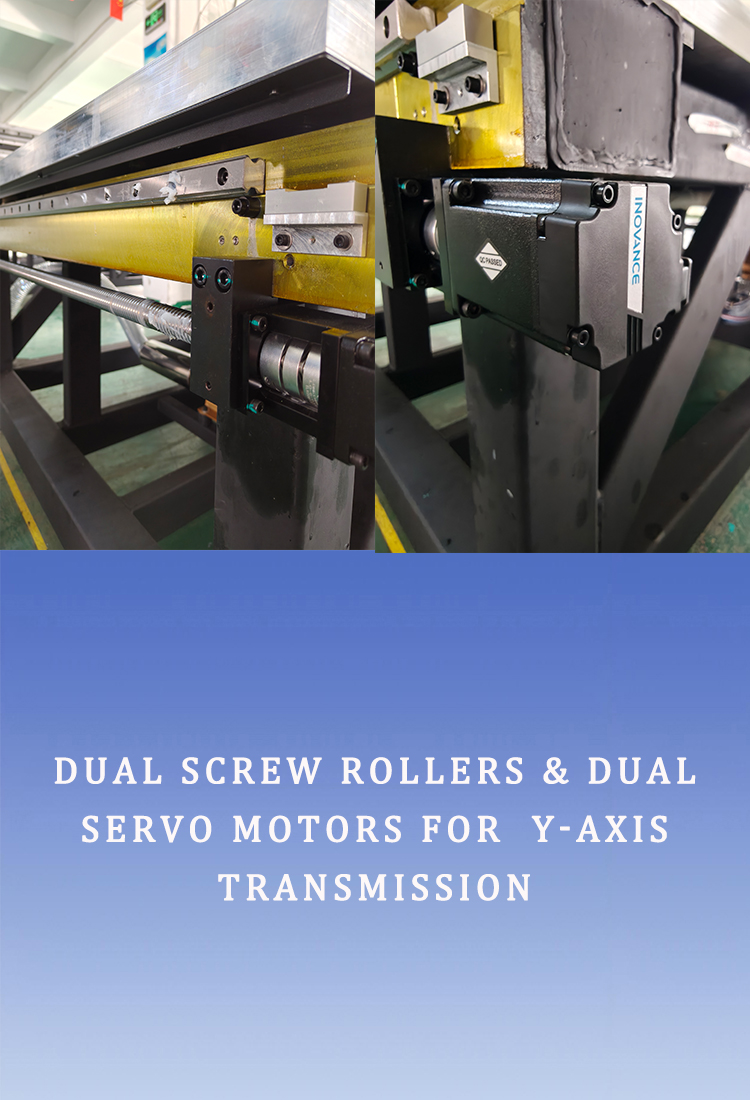

  1. Maglev linear motor for X-axis & Dual screw rollers & Dual servo motors for  Y-axis transmission
  2. Print Heads: Ricoh G6 heads ( 2-8pcs)
  3. Print Size: 2500x1300mm

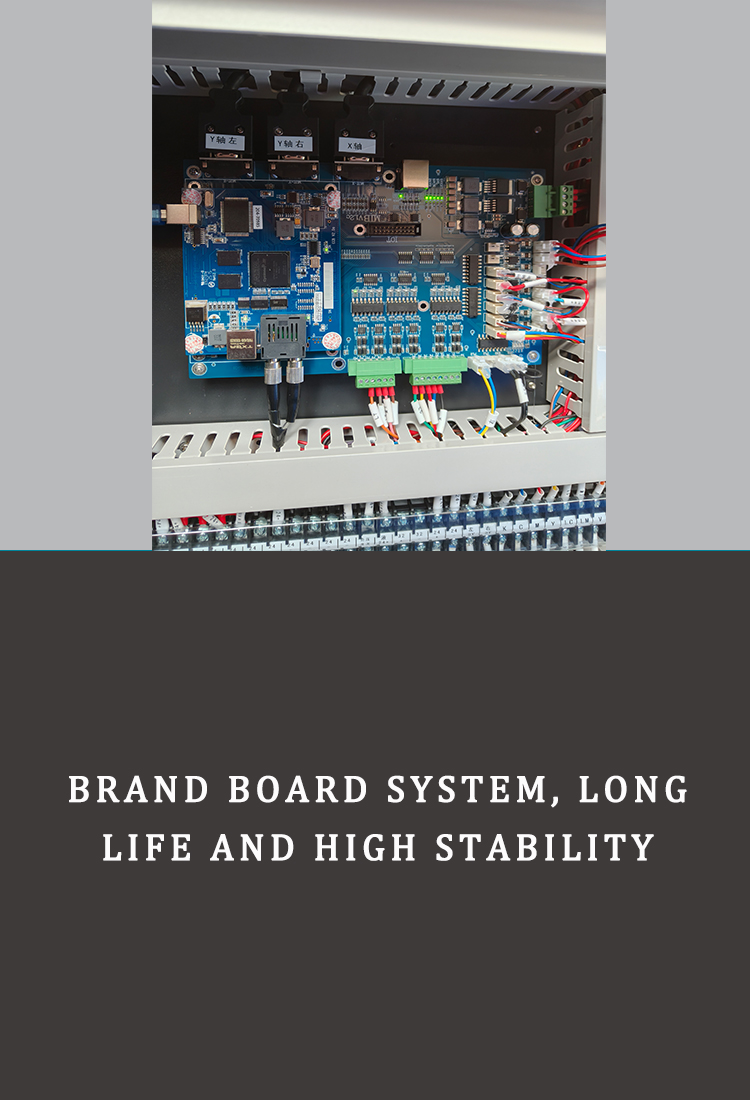

  4. Brand board system+Dual negative pressure system+Prinhads anti-collision device etc.

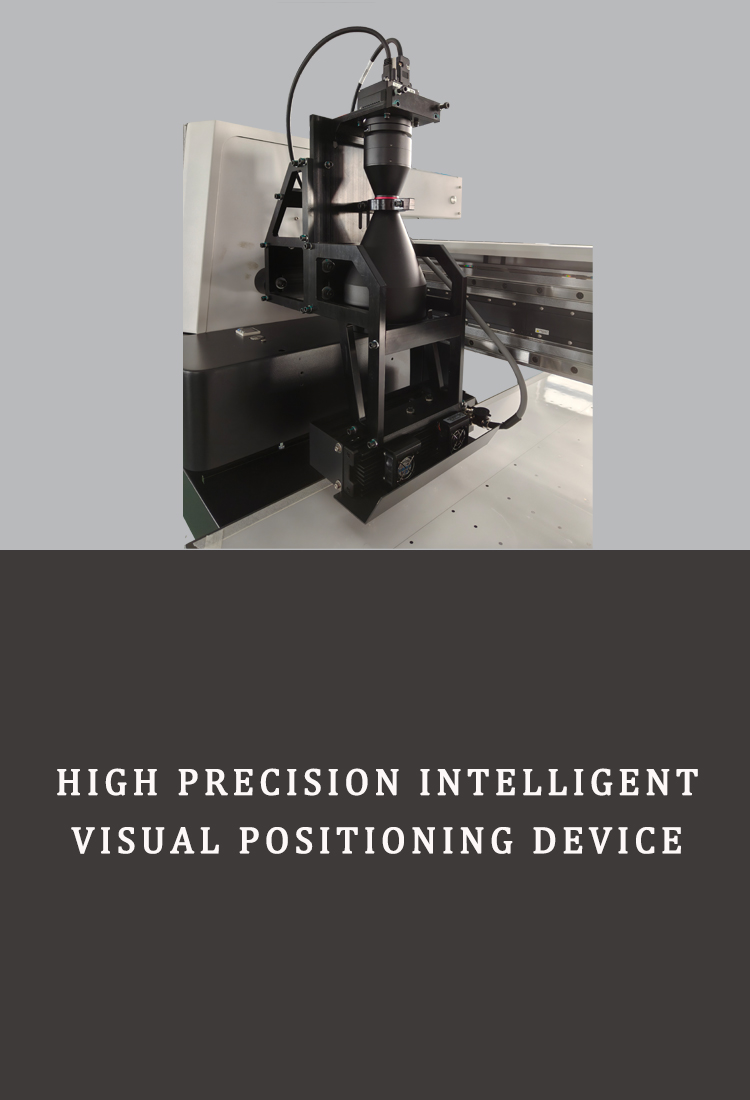

5.It is equipped with high precision intelligent visual positioning device

6.High precision, high color gamut, long service life, high stability, suitable for 24-hour non-stop production use.

  1. Application: Wide application, it can not only print different board materials, but also can accurately position the smaller or irregular printed products, such as jewelry, badges, nameplates, toys, handicrafts, etc， achieve batch printing, and meet personalized customization.
    Contact us

    4

    Specification

    MODEL

    BR-2513V

    PRINT SIZE

    2500mm×1300mm

    PRINT HEAD

    Ricoh G6 Heads

    PRINTHEAD QUANTITY

    3 PCS

    (3-8pcs  optional)

    PRINTHEAD HEIGHT

    100mm

    PRINT WEIGHT

    Max Weight 100kg

    PRINT PRECISION

    &PRINT SPEED

    4pass 726dpi×600dpi

    20㎡/h  (3 heads)



    6pass 726dpi×900dpi

    15㎡/h  (3 heads)



    8pass 726dpi×1200dpi

    10㎡/h  (3 heads)

    INK

    UV Ink

    PRINT COLOR

    CMYK+W/CMYK+W+V

    ( CMYK+W/CMYK+W+V/ Double CMYK+W/ Four CMYK/CMYK+W+CMYK /CMYKLcLm+W+V optional)

    Print Media

    PVC board, PS Board，foam board, metal, glass ,ceramic tile, acrylic,KT board ect. various types of Board material and irregular-shaped products such as jewelry, badges, nameplates, toys, handicrafts, etc.



    Machine Structure

    heat treatment, the triangular structure is precision machined using high-precision gantry milling

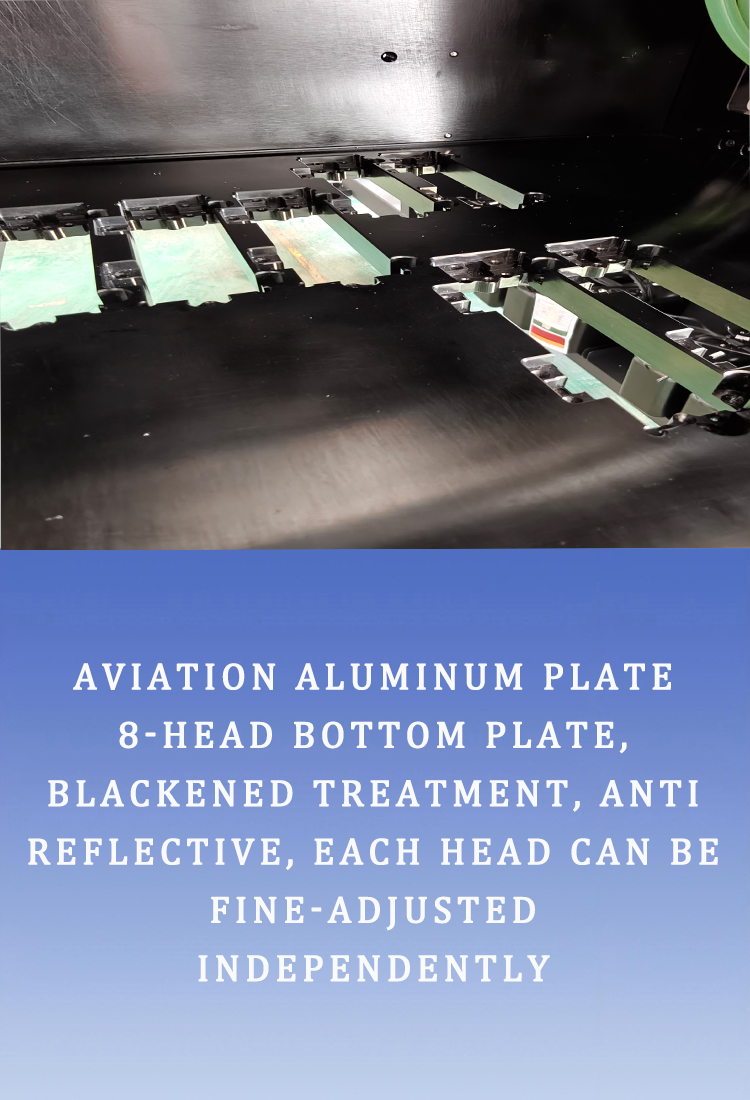

    Printheads Bottom Plate

    Aviation aluminum plate 8-head bottom plate, blackened treatment, anti reflective, each head can be fine-adjusted  independently

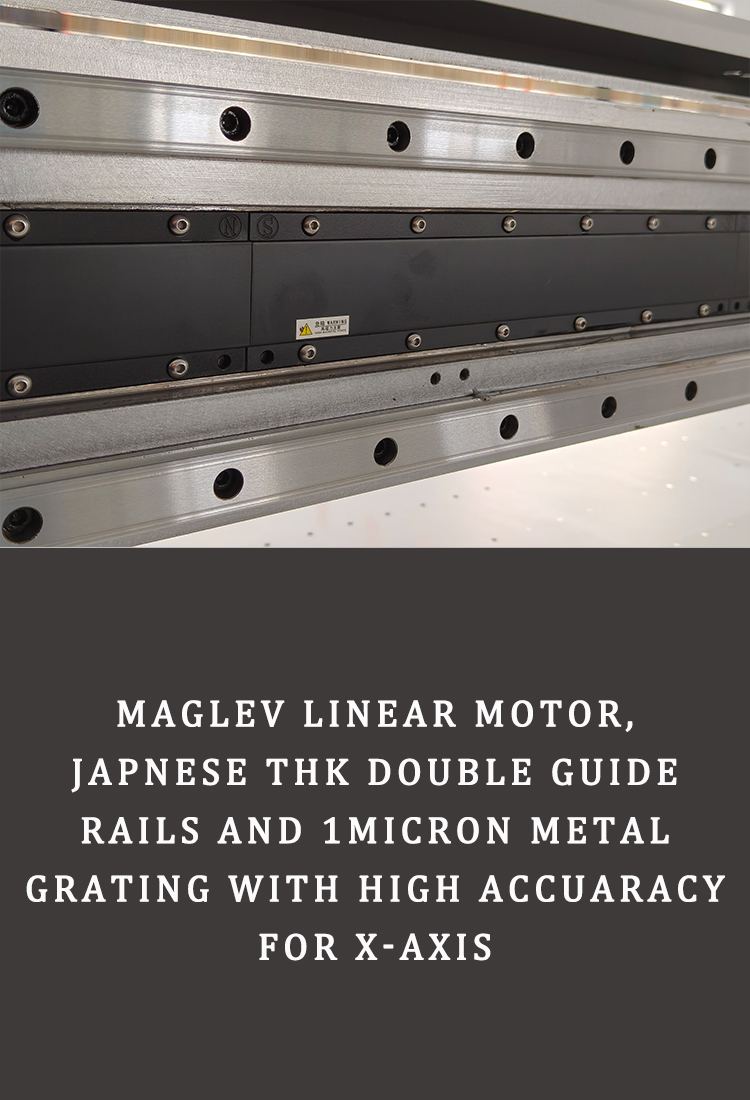

    X Axis

    Industrial grade high-strength steel beam+magnetic levitation linear motor+1um metal grating+Japanese THK high-speed silent 20 rail

    Y Axis

    Brand double screw rods +double brand guide rails+double 400W brand motor drives

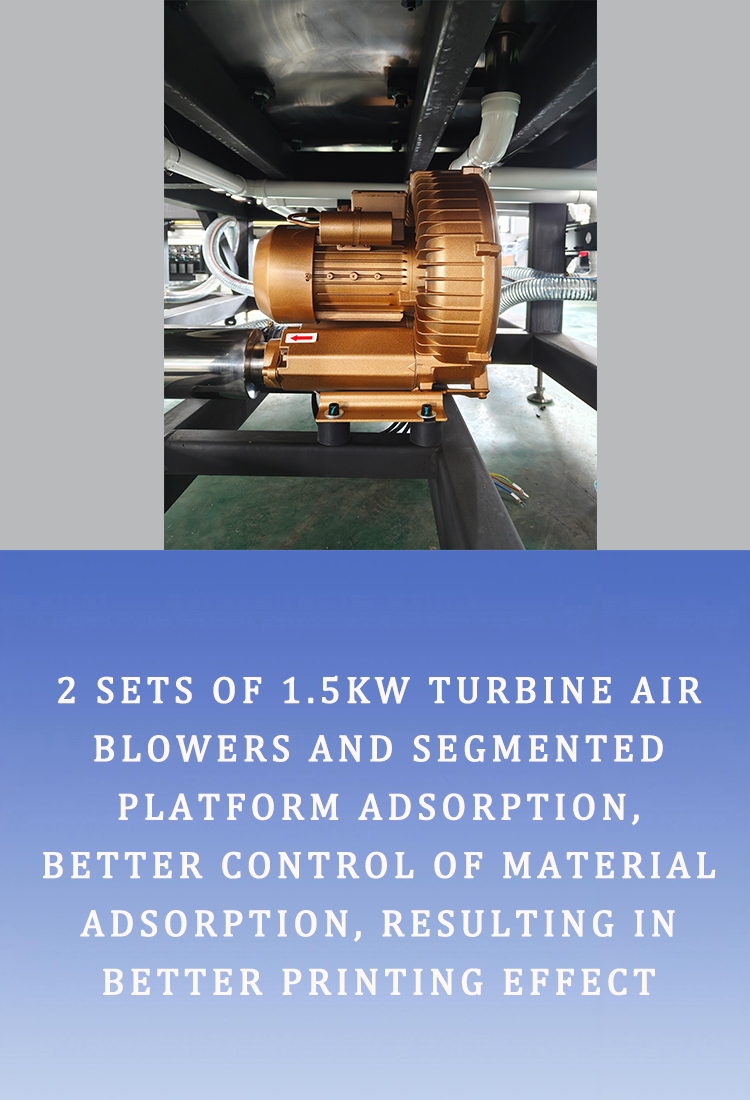

    PLATFORM ADSORPTION

    Double1500W Turbo fan

    DRYING SYSTEM

    UV LEDS

    (The UV leds adopt led beads from South Korea)

    RIP SOFTWARE

    PRINTFACTORY (PHOTOPRINT optional)

    COMPUTER OPERTIAON SYSTEM

    Windows 10

    FILE FORMAT

    TIFF,PDF,JPEG

    POWER REQUIREMENT

    AC220V(+10),50HZ~60HZ, 4.5KW

    ENVIRONMENT

    Temperature:20℃-32℃，Humidity:40%-60%,

    MACHINE SIZE

    L×W×H(4750×2200×1450)MM

    PACKAGE

    L×W×H(4850×2300×1700)MM

    Product Features

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8

    Advantage of UV Flatbed Printers

    1.Personalized customization
    It can realize the customization of personalized gifts. At the same time, there is no too much limitation on the product. Mobile phone cases, stationery and other crafts can be printed, and there is no limit to the printed pattern.
    2.High precision positioning
    Printing materials can be placed freely, and the AI visual positioning system can quickly and accurately identify the location of the printing materials, improving printing efficiency.
    3.Wide range of printable materials
    This visual positioning UV flatbed printer can not only print various board materials, but also has no major limitations compared to other types of devices in meeting personalized gift customization. The device has been widely used in electronic manufacturing, toys, handicrafts, medical, logistics and other fields, meeting the printing needs of precious metal handicrafts, badges and other shaped products. It will play an important role in industrial automation and intelligent manufacturing, promoting productivity improvement and industrial upgrading.
