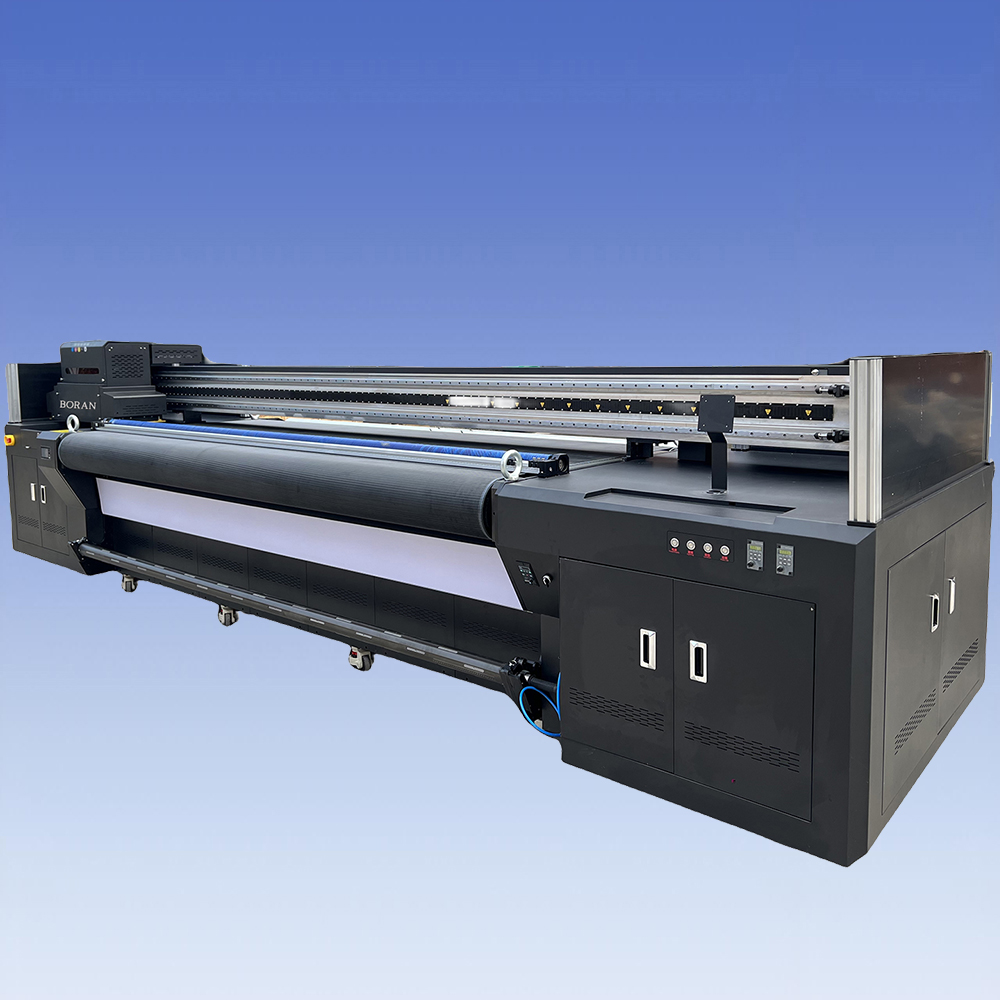

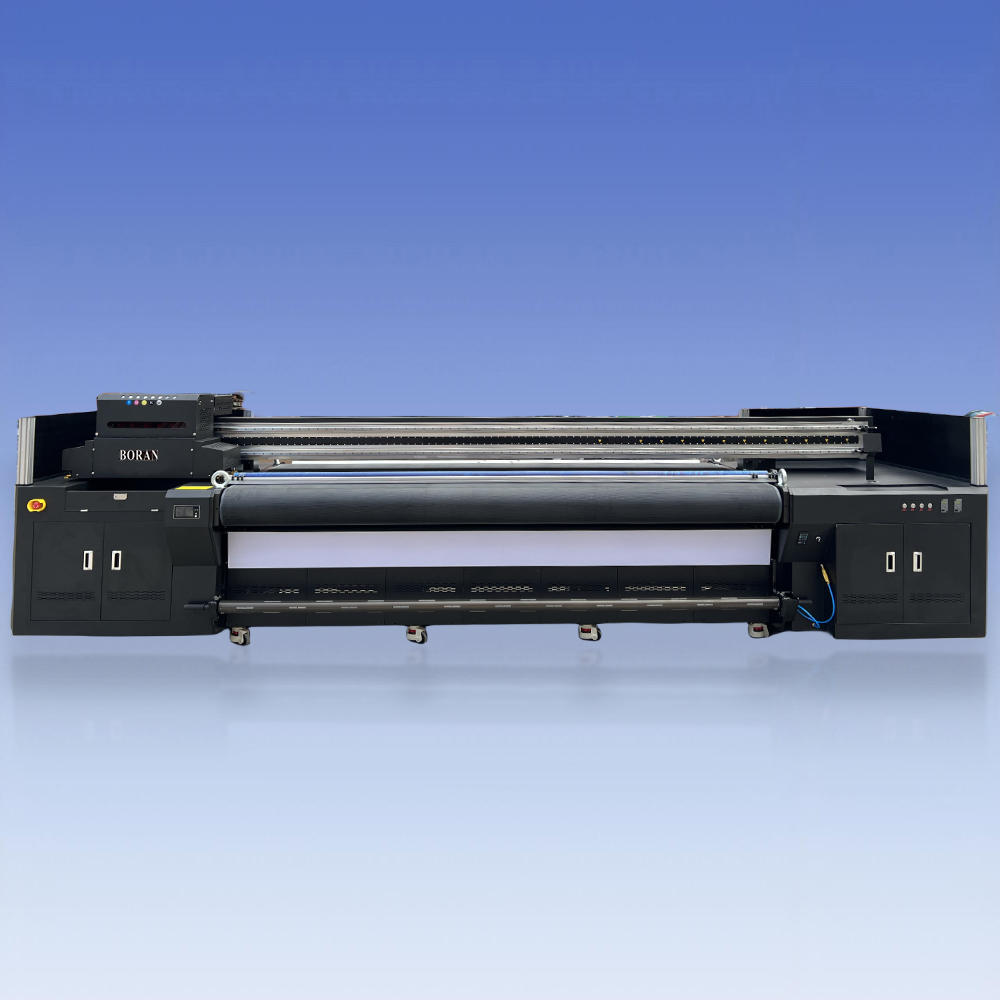

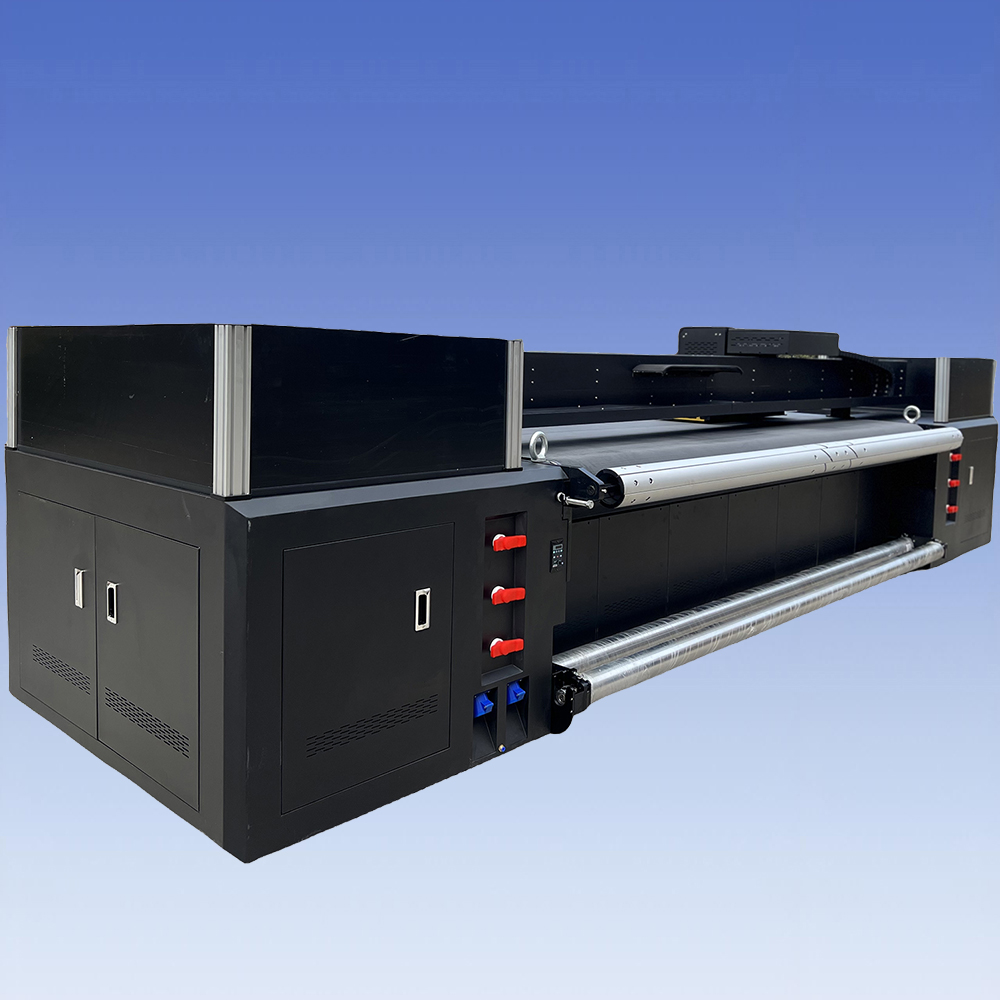

3.2m UV Hybrid Printer UV Multifunctional PrintingMachine

3.2m UV Hybrid Printer UV Multifunctional Printing Machine
Print heads: Konica 1024A Heads (Ricoh G6 /G5 heads optional）
The Max Print Width: 3200mm
Color: CMYK/double CMYK/ Four CMYK/CMYK+W+CMYK/CMYK+W/CMYK+W+V/ Double CMYK+W(CMYKLcLm+W /CMYKLcLm+W+V optional)
Speed:10-40㎡/h (according to the head quantity)

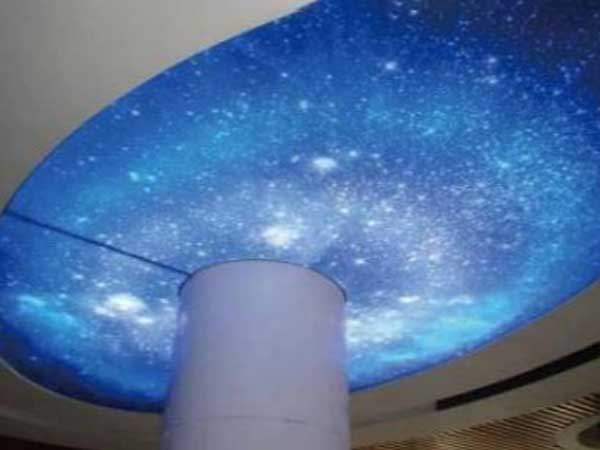

Application: UV multifunctional printer has been widely used in roll to roll materials and board materials area such as PVC ceiling film, flex banner, wallpaper, canvas, flooring leather, sample book ,acrylic, glass, metal, PVC sheet, plastic etc.

Product Introduction

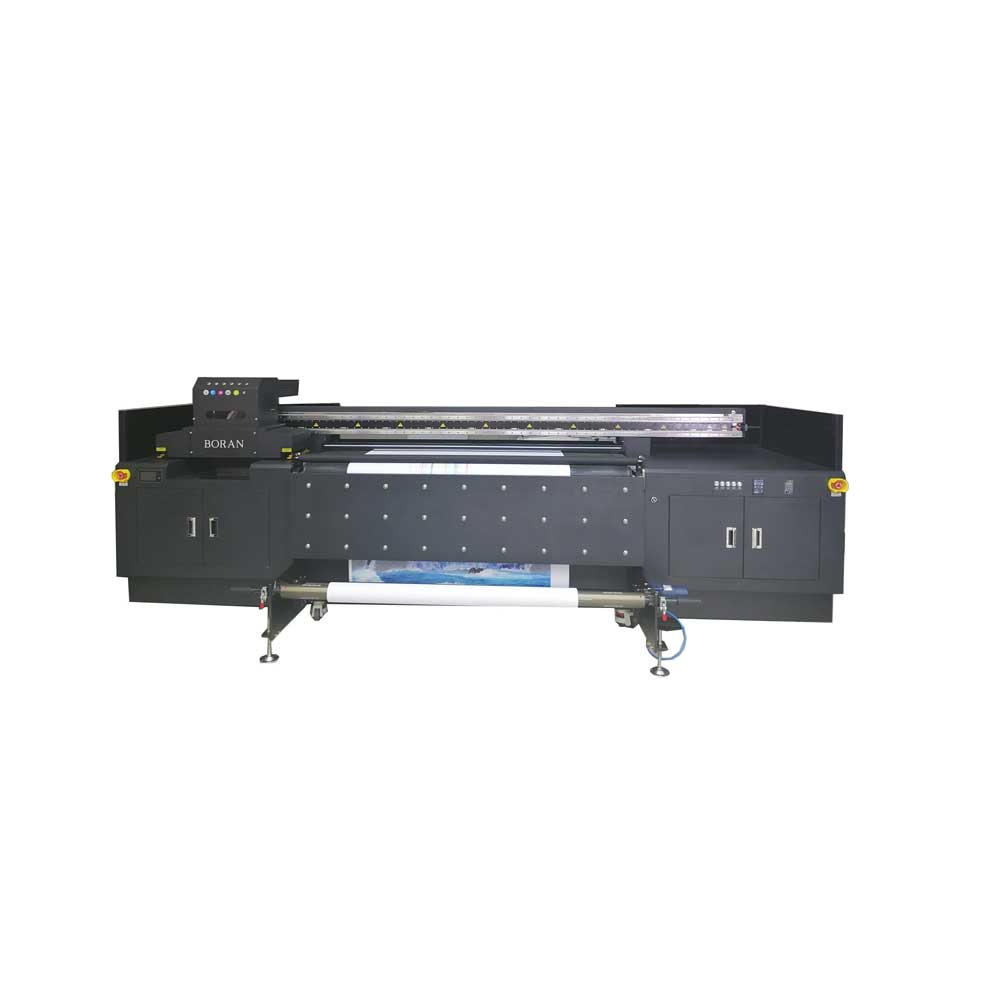

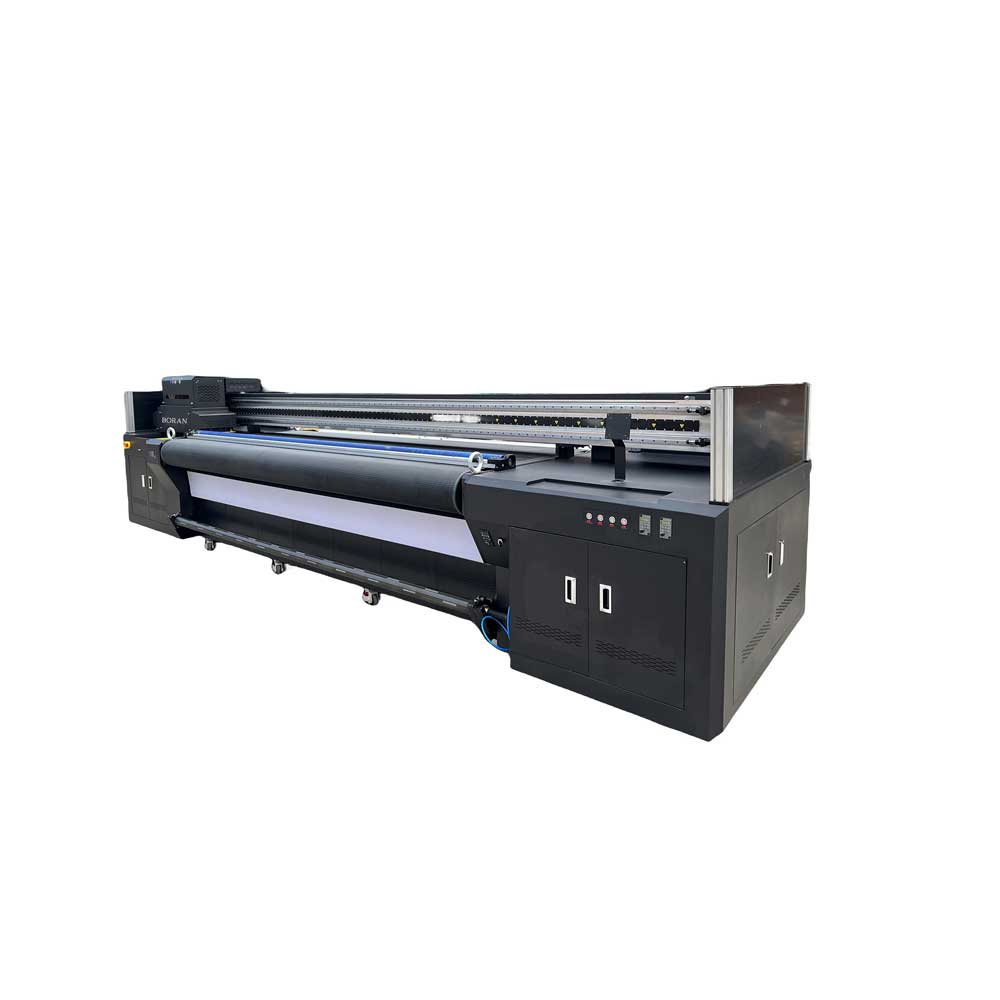

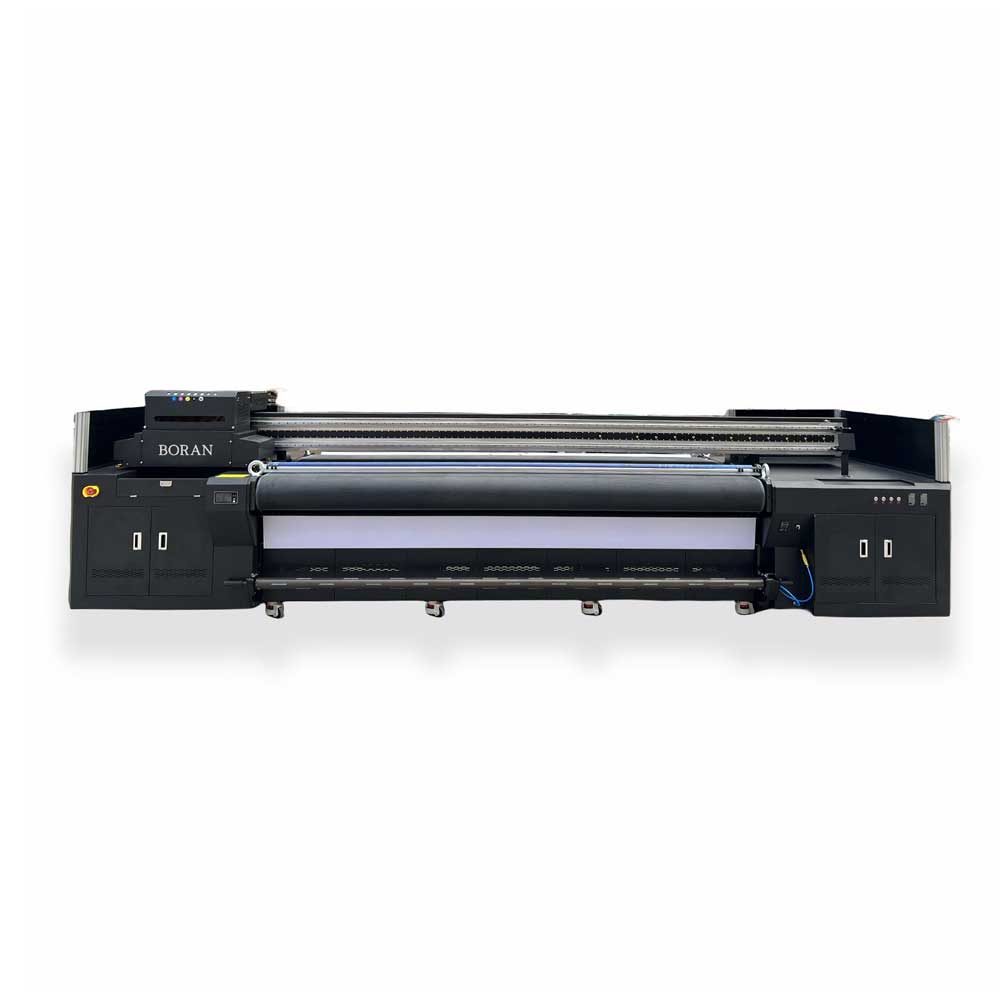

UV Multifunctional Printer 3.2m UV Hybrid Printer is a high-quality large format UV hybrid printer for industrial-level production. Its max printing width is 1.8m. It supports 4-8pcs ofor Konica1024A or Ricoh G5/G6 printheads which allows for a wide range of speed requirements and more color can be optional.

Our UV multifunctional printer has been widely used in roll to roll materials and board materials area such as PVC ceiling film, flex banner, wallpaper, canvas, flooring leather, sample book ,acrylic, glass, metal, PVC sheet, plastic etc.

010203040506

Technical Parameters

MODEL	BR-H3200
MAX PRINT WIDTH	3200mm
PRINTHEADS	Konica 1024A Heads (Ricoh G6 /G5 heads optional）
PRINTHEAD QUANTITY	5 PCS (3-8pcs optional)
PRINTHEAD HEIGHT	60mm
MEDIA WEIGHT	100KG Max Weight 100KG
PRINT PRECISION &PRINT SPEED	4pass 726dpi×600dpi	28㎡/h (4 heads)
	6pass 726dpi×900dpi	24㎡/h (4 heads)
	8pass 726dpi×1200dpi	20㎡/h (4 heads)
INK	UV Ink

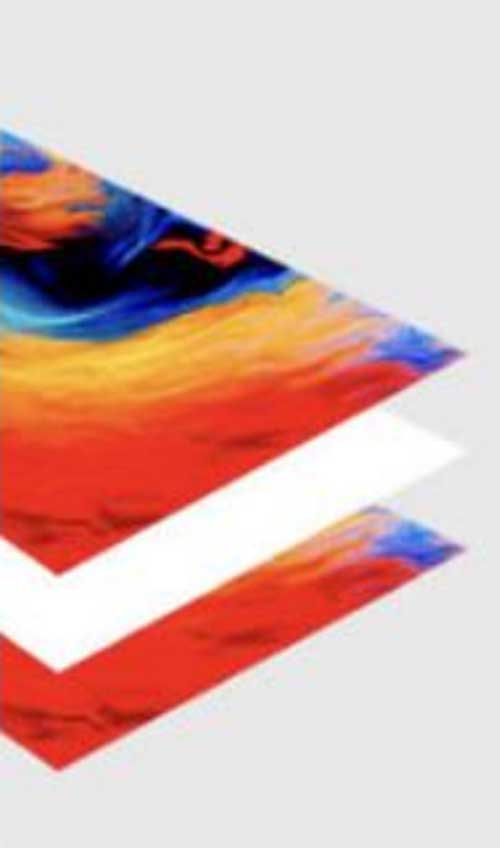

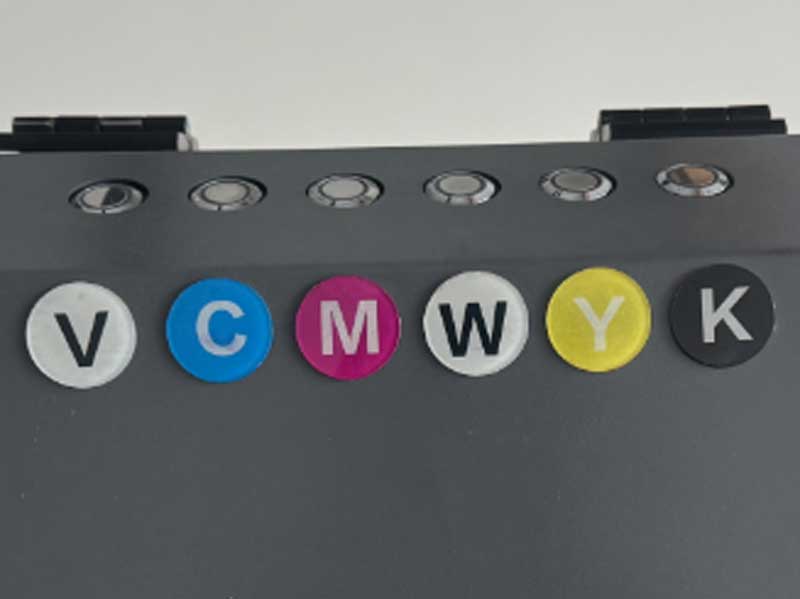

PRINT COLOR	CMYK/double CMYK/ Four CMYK/CMYK+W+CMYK/CMYK+W/CMYK+W+V/ Double CMYK+W (CMYKLcLm+W /CMYKLcLm+W+V optional)
PRINT MEDIA	Banner,light sheet, PVC soft film,wallpaper,leather,mat ,PVC board, PS Board，foam board, metal, glass ,ceramic tile, acrylic,KT board , ect. Various of roll to roll materials & Board material

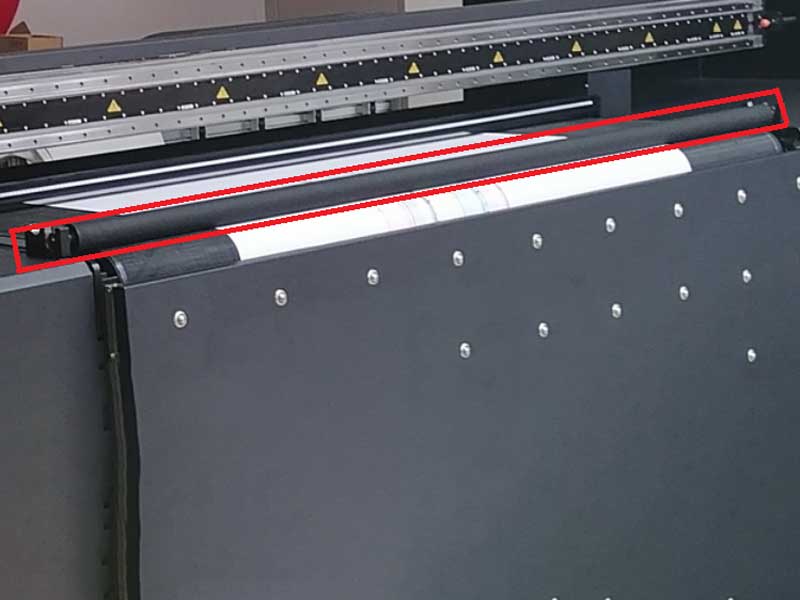

PLATFORM ADSORPTION	Double 1500W Turbo fan
DRYING SYSTEM	UV led
RIP SOFTWARE	PHOTOPRINT
COMPUTER OPERTIAON SYSTEM	Windows 7/Windows 10
FILE FORMAT	TIFF,PDF,JPEG
POWER REQUIREMENT	AC220V(+10),50HZ~60HZ, 5KW
WORKING ENVIRONMENT	Temperature:20℃-32℃，Humidity:40%-60%,
EQUIPMENT SIZE	L×W×H(5700×1700×1600)MM
PACKING SIZE	L×W×H(5850×1850×1850)MM

Feature

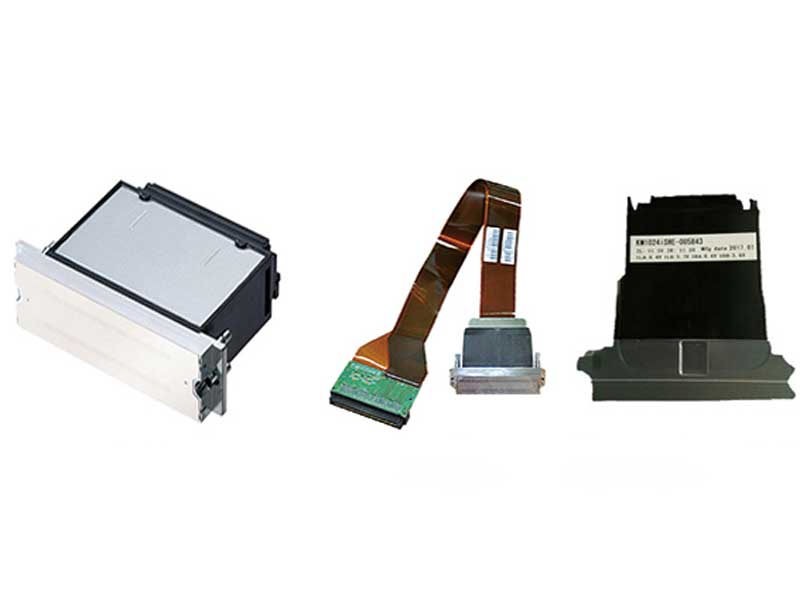

Adopt industrial gray heads Konica 1024A , and Ricoh G5 or G6 heads are also optional

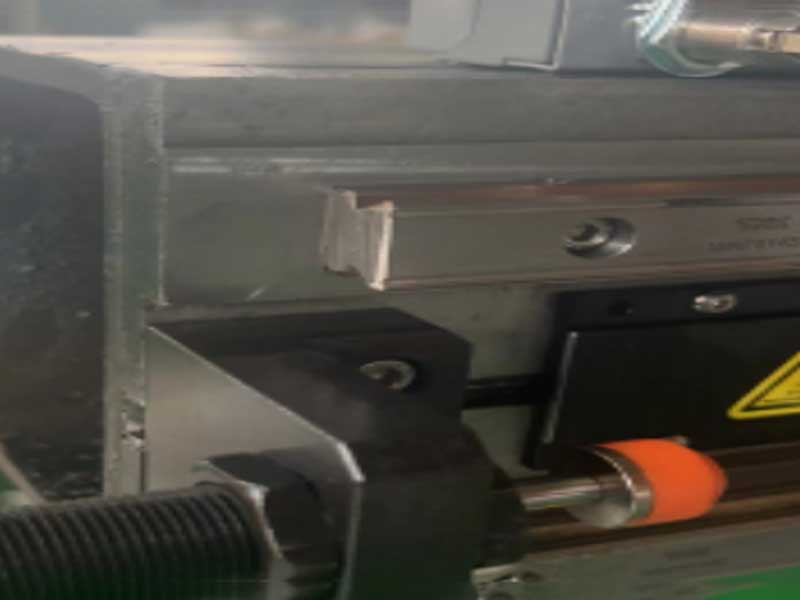

Thickened precision milled steel beam

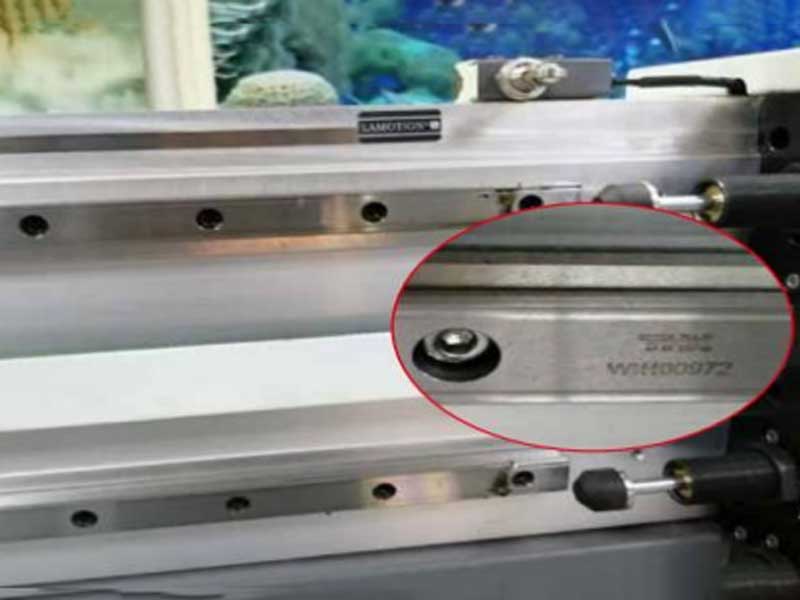

Imported quality THK guide rail

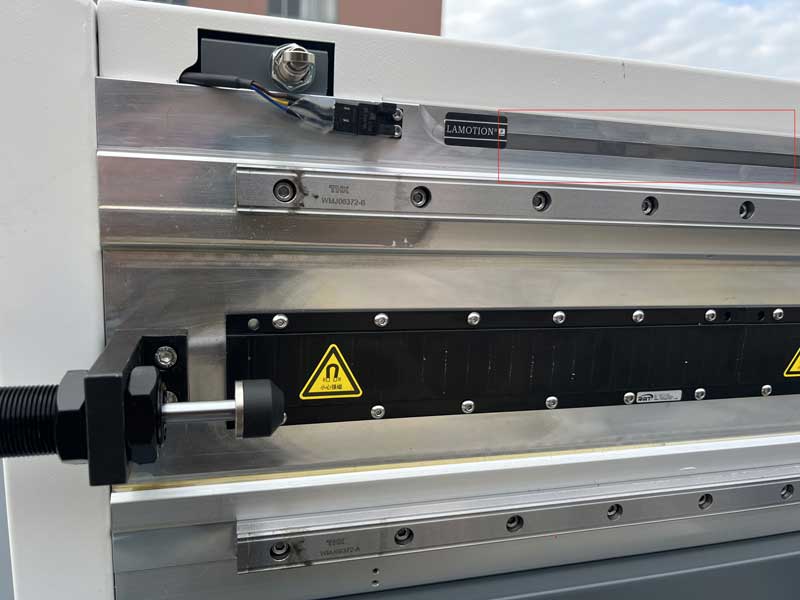

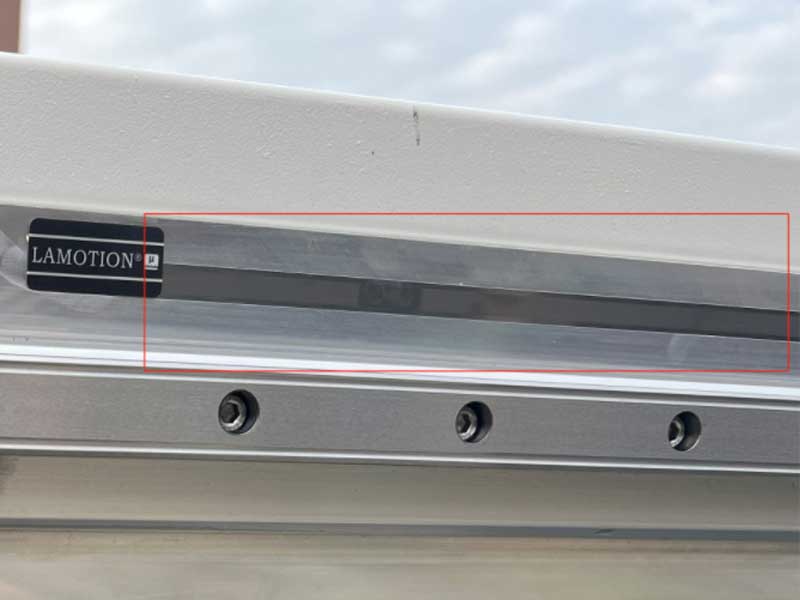

Imported 1 micron metal grating
Imported magnetic levitation linear motor in x axis
Professional RIP software
