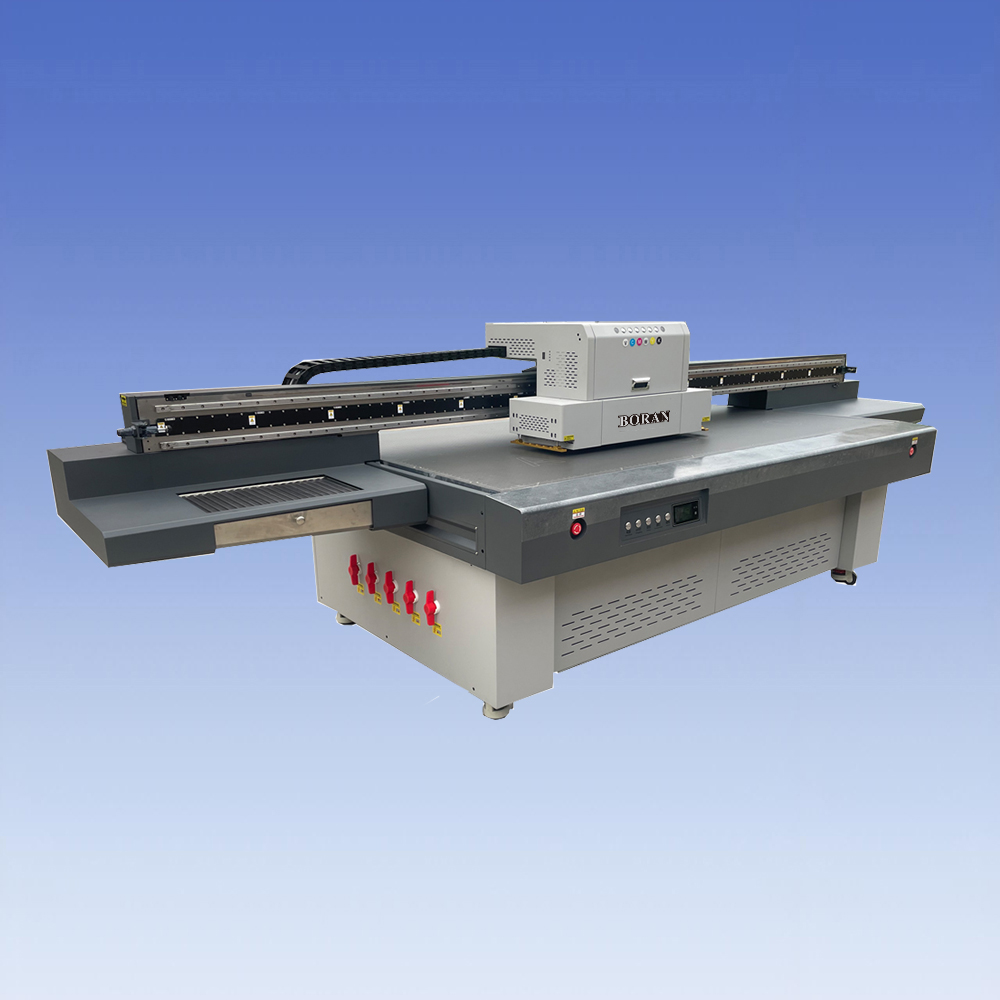

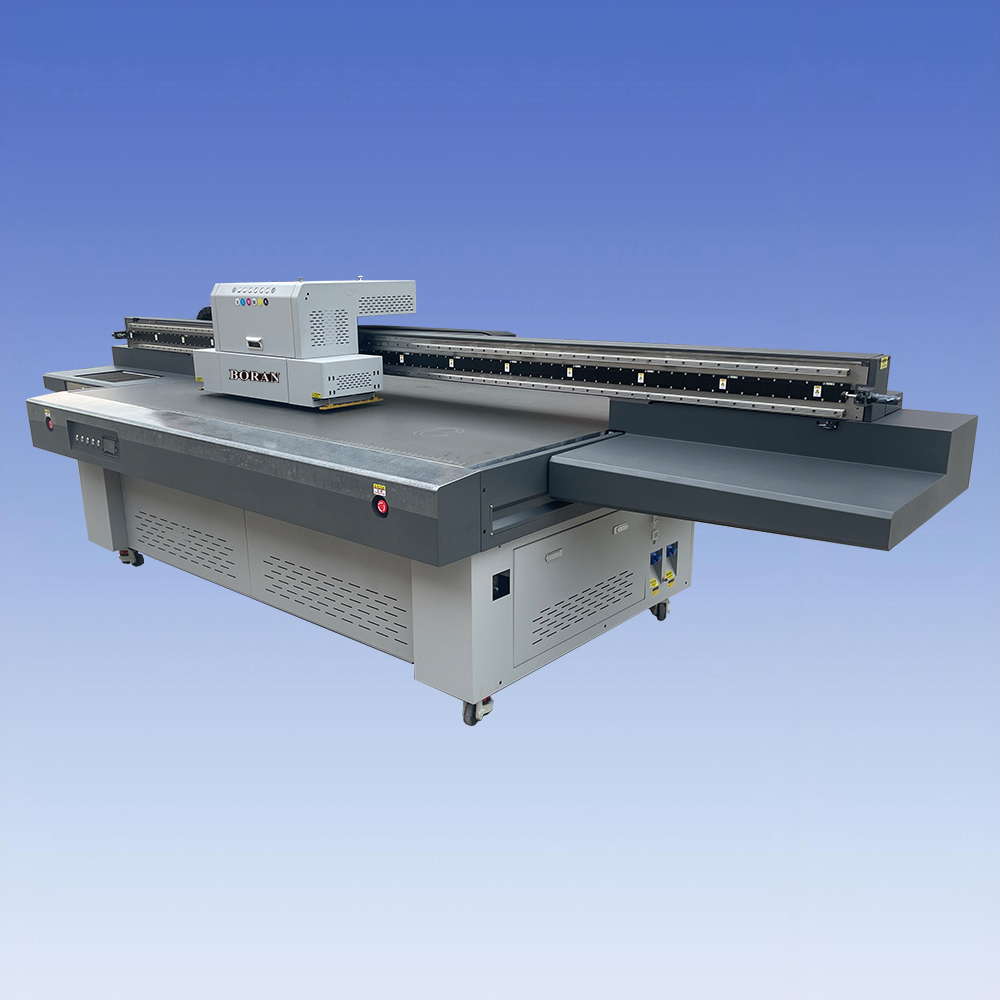

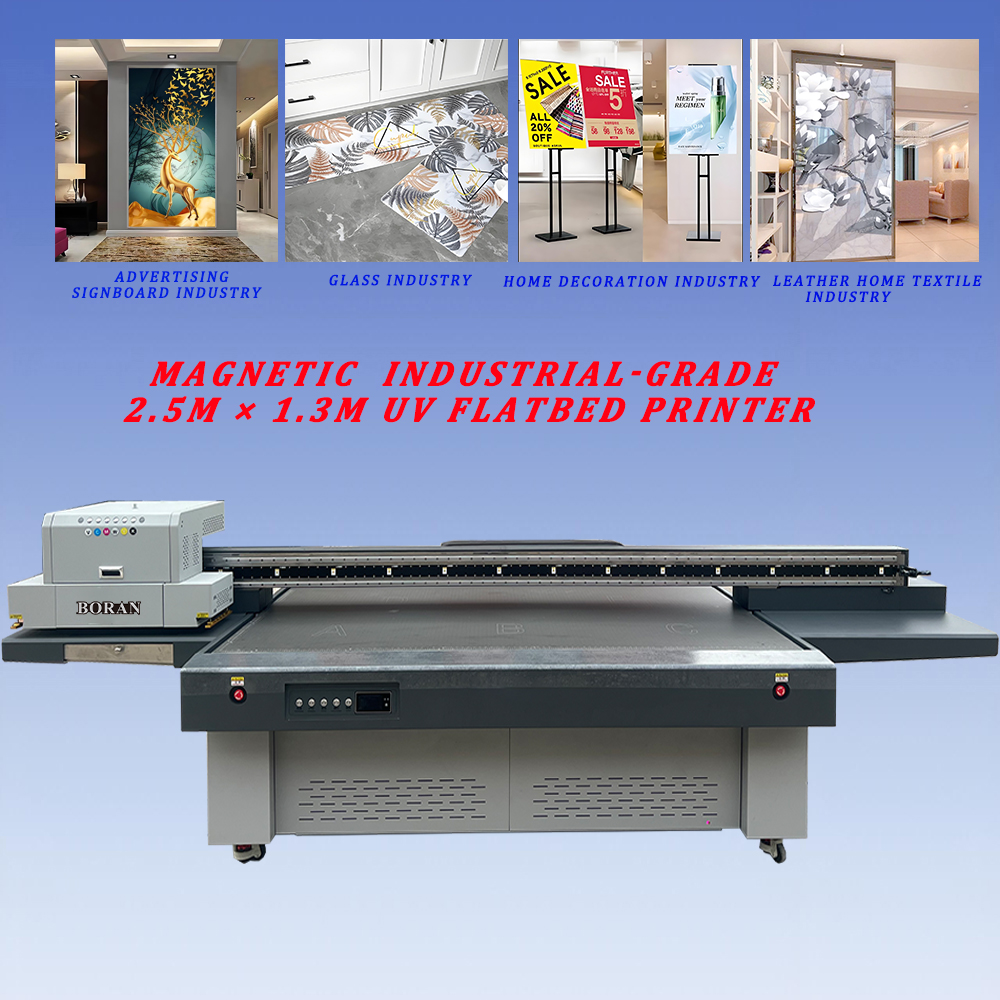

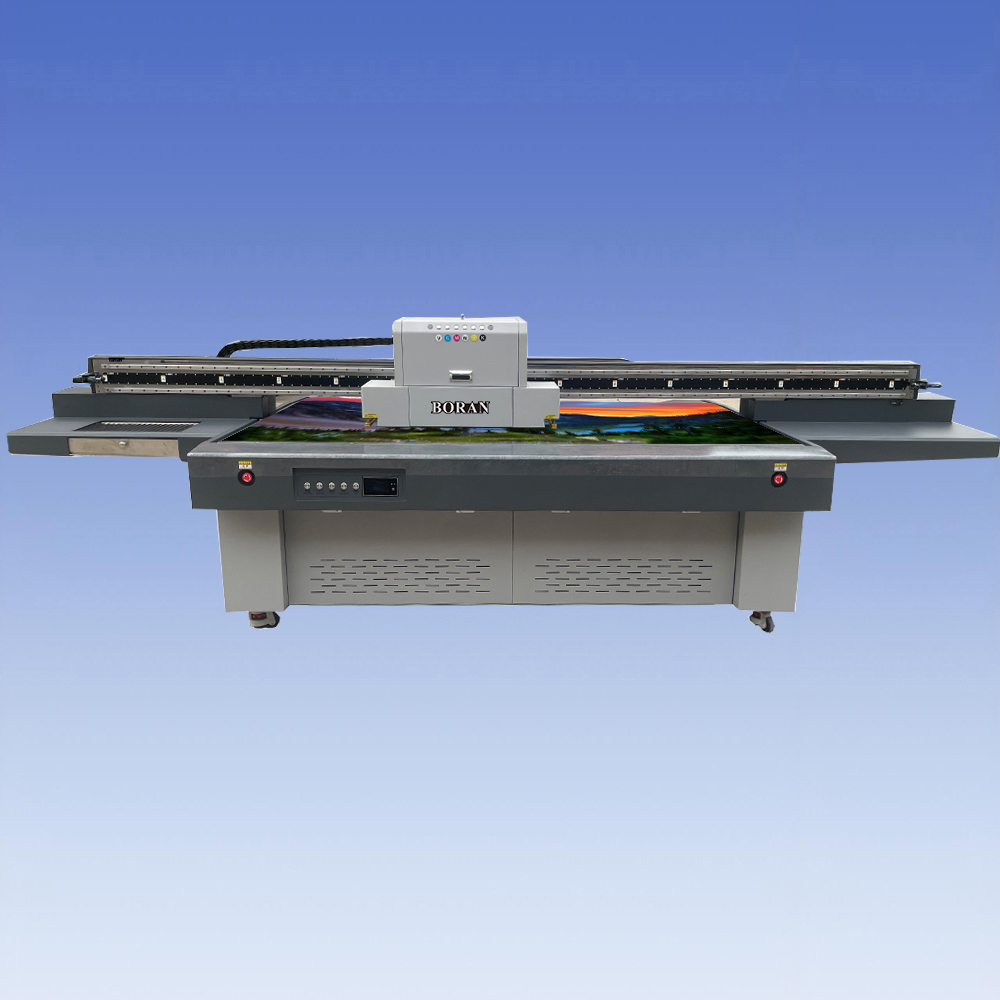

Magnetic Industrial-grade 2513 Large format UV flatbed printing machine

Magnetic Industrial-grade 2513 Large format UV flatbed printing machine

Print Heads: Ricoh G6 heads

Printhead Quantity: 4pcs(CMYK+W+V), more heads can be optional

Size: 2500x1300mm

Color: CMYK+W+V

(CMYK+W/ Double CMYK+W/ Four CMYK/CMYK+W+CMYK/CMYKLcLm+W+V optional)

Speed:10-40㎡/h

Application: Acrylic, glass, metal, wood, ABS board, PVC sheet, plastic, billboard, canvas, ceramic tile, phone cover, ceramic tile, flooring leather, sample book etc.

    PRODUCT SPECIFICATION:

    MODEL

    BR-2513UV

    PRINT SIZE

    2500mm×1300mm

    PRINT HEAD

    Ricoh G6 Heads

    PRINTHEAD QUANTITY

    4 PCS

    (3-8pcs  optional)

    PRINTHEAD HEIGHT

    100mm

    PRINT WEIGHT

    Max Weight 100kg

    PRINT PRECISION

    &PRINT SPEED

    4pass 726dpi×600dpi

    20/h  (3 heads)

    6pass 726dpi×900dpi

    15/h  (3 heads)

    8pass 726dpi×1200dpi

    10/h  (3 heads)

    INK

    UV Ink

    PRINT COLOR

    CMYK+W+V

    ( CMYK+W/CMYK+W+V/ Double CMYK+W/ Four CMYK/CMYK+W+CMYK /CMYKLcLm+W+V optional)

    Print Media

    PVC board, PS Boardfoam board, metal, glass ,ceramic tile, acrylic,KT board ect. various types of Board material and irregular-shaped products



    PLATFORM ADSORPTION

    1500W Turbo fan

    DRYING SYSTEM

    UV led

    RIP SOFTWARE

    PHOTOPRINT

    COMPUTER OPERTIAON SYSTEM

    Windows 7/Windows 10

    FILE FORMAT

    TIFF,PDF,JPEG

    POWER REQUIREMENT

    AC220V(+10),50HZ~60HZ, 4.5KW

    ENVIRONMENT

    Temperature:20℃-32Humidity:40%-60%,

    MACHINE SIZE

    L×W×H(4750×2200×1450)MM

    PACKAGE SIZE

    L×W×H(4850×2300×1750)MM

    PRODUCT Details

    • 1

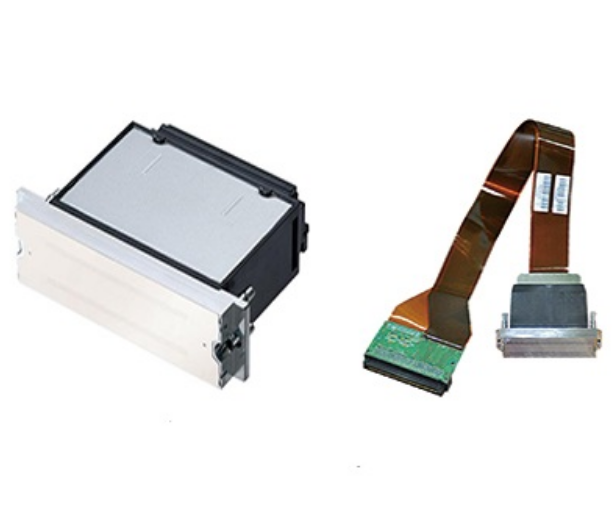

      1.Imported industrial grade print head Ricoh G6 heads

    • 2

      2.Brand Shanghau UMC industrial boards

    • 3

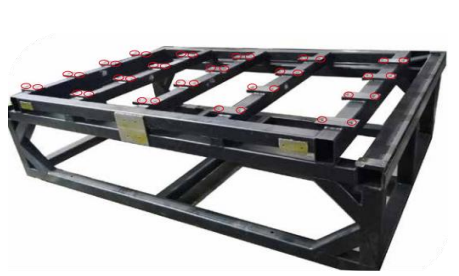

      3. Integral gantry milling steel frame

    • 4

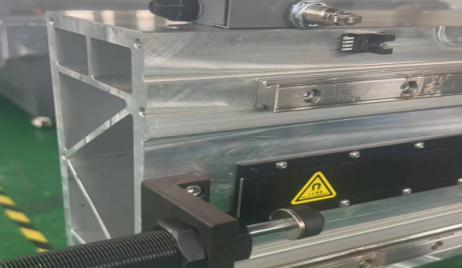

      4.Industrial-grade high-precision steel beam

    • 5

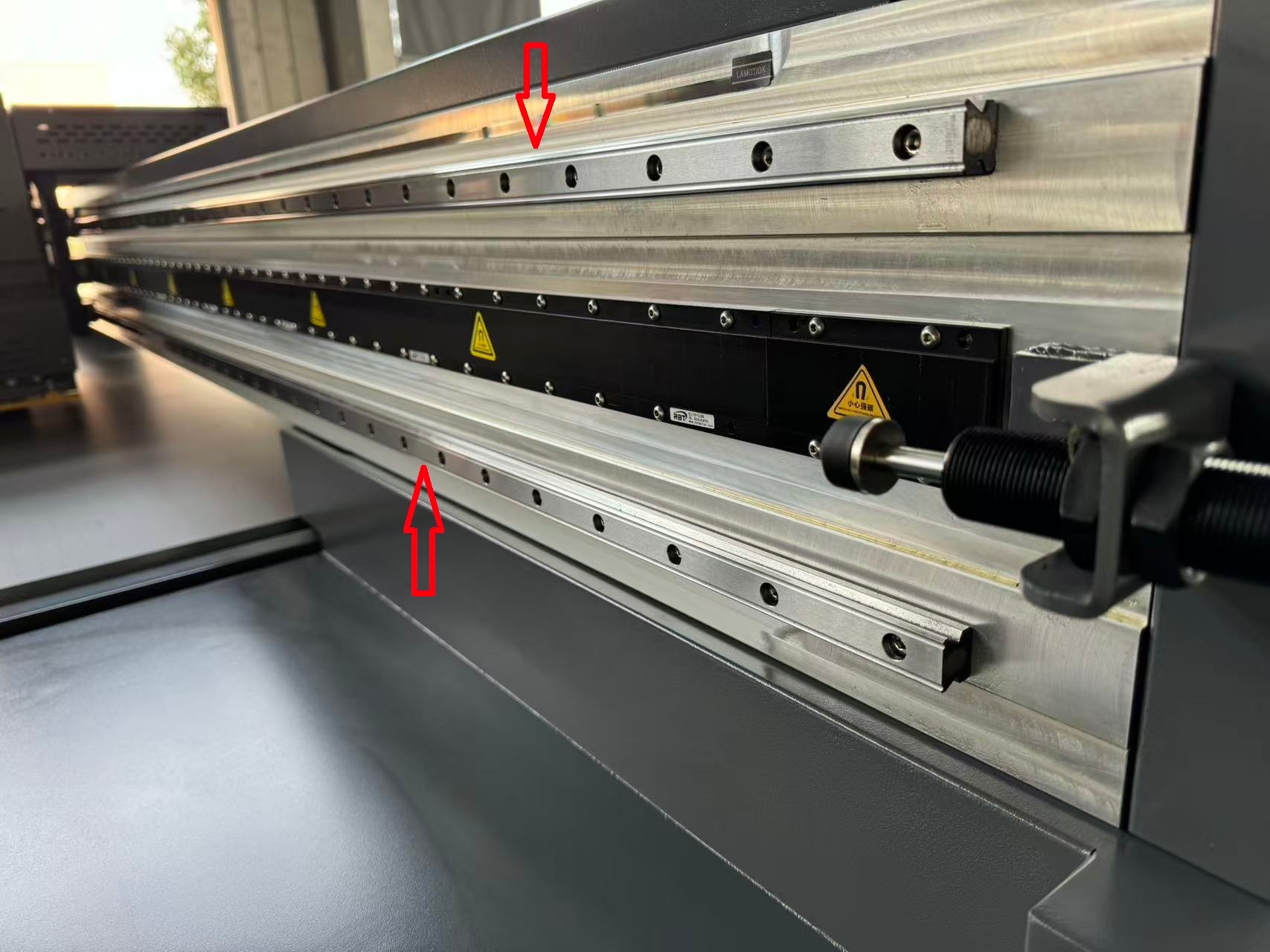

      5.Brand Double THK guide rails

    • 6

      6.Imported 1 micron metal grating

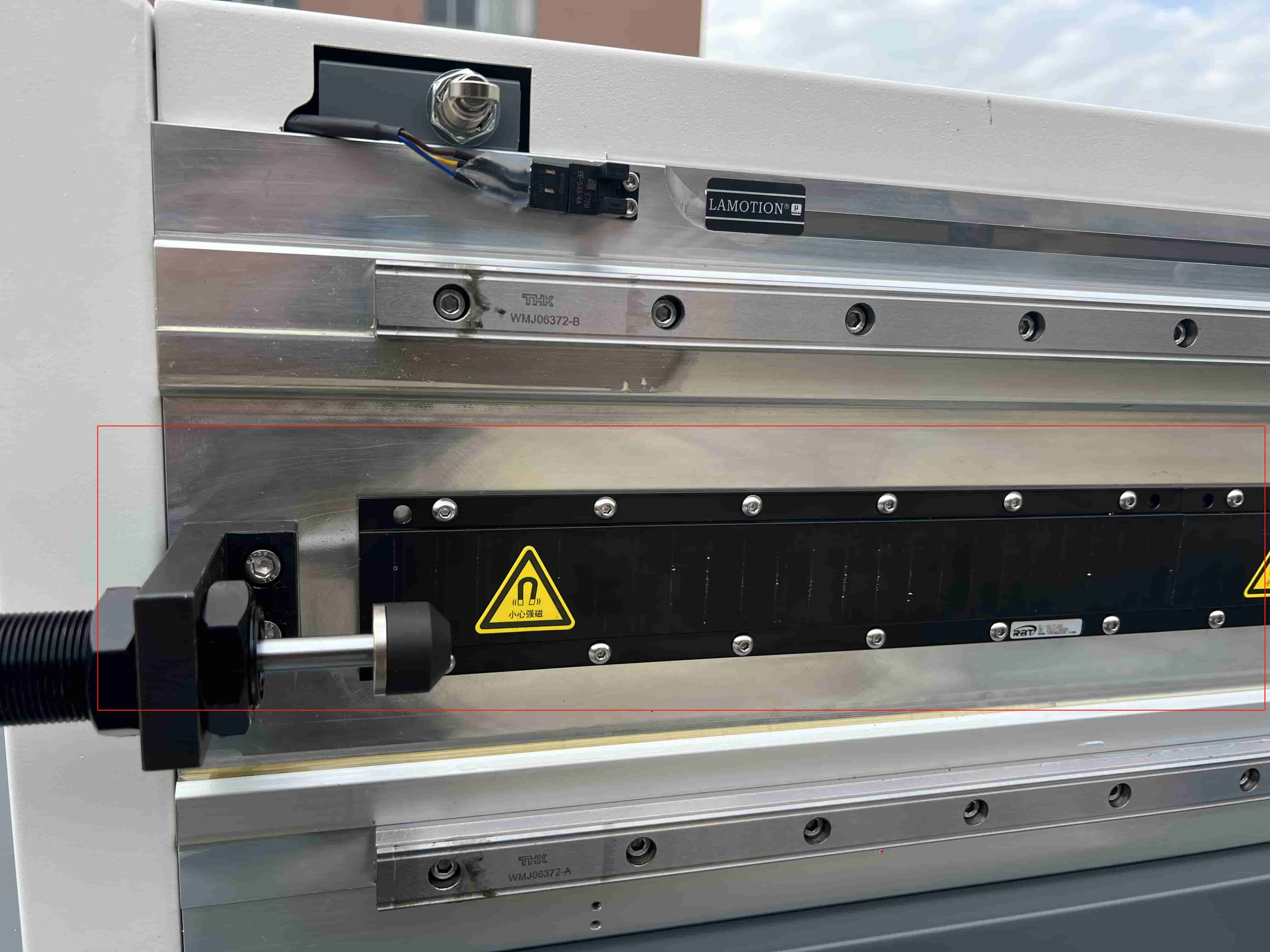

    • 7

      7.Magnetic levitation linear motor in x axis

    • 8

      8.Double precision screw rod with double grinding technology and big power of Motor in Y axis

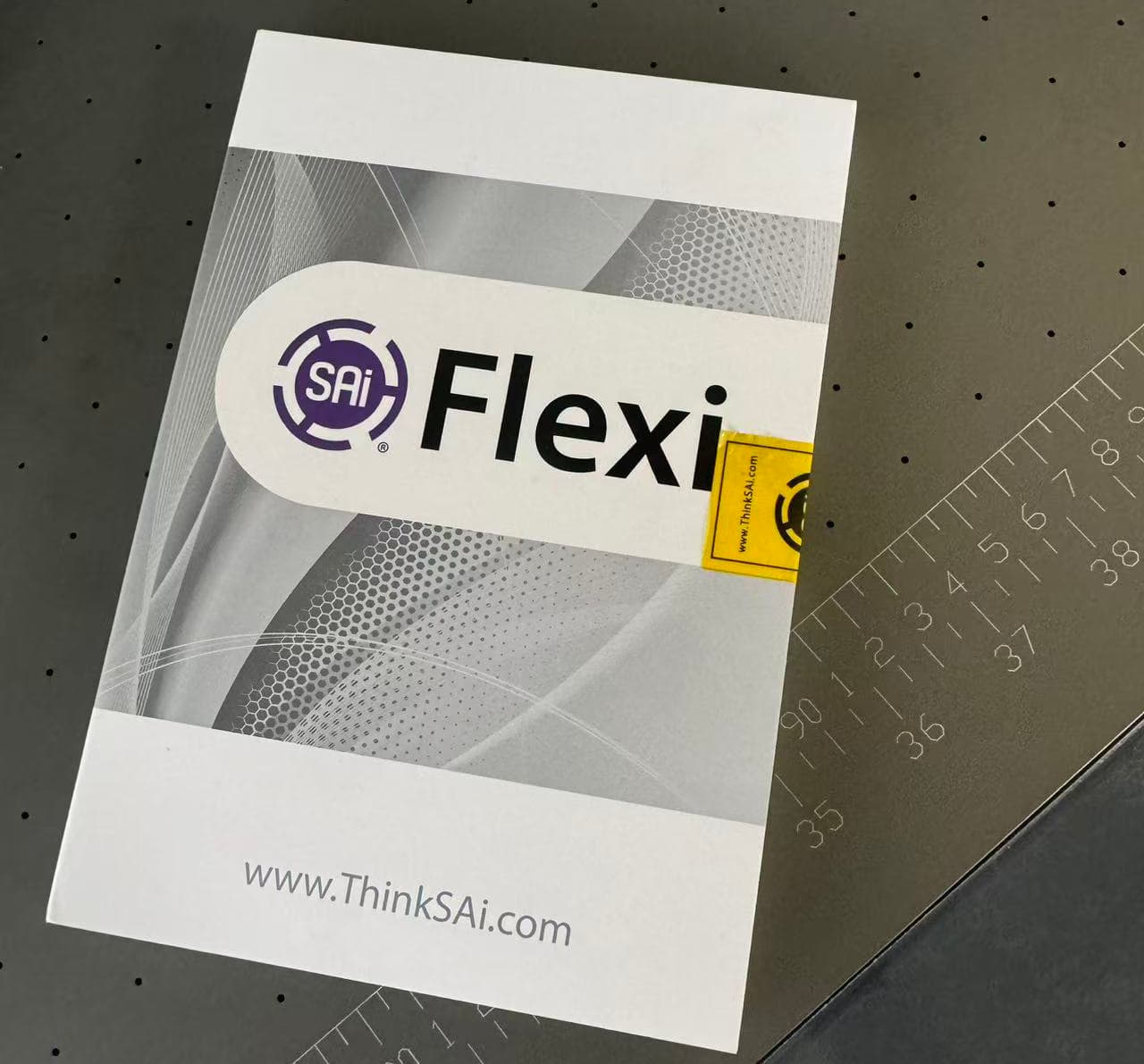

    • 9

      9.Rip PP software

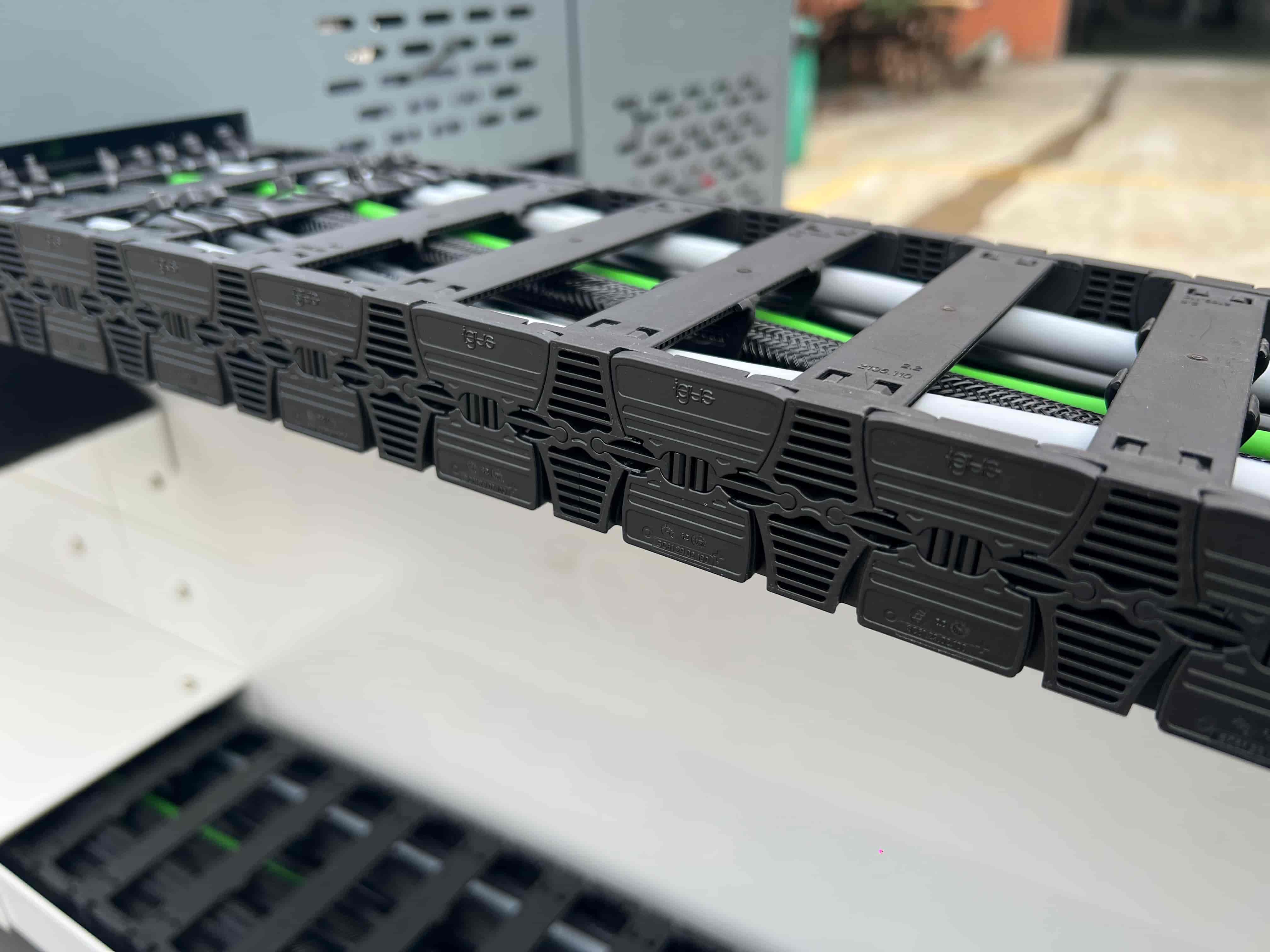

    • 10

      10. German IGUS drag chain

    • 11

      11.Thickened hard oxide aluminum platform with segmented platform adsorption

    • 12

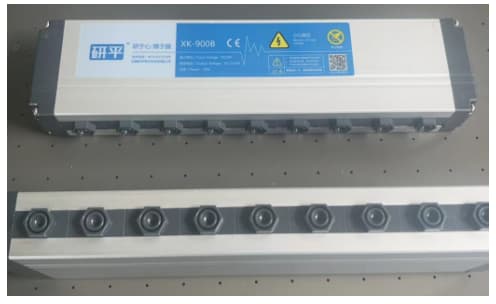

      12.Eliminate static electricity system

    • 13

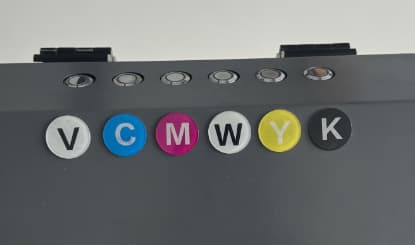

      13.color-separation filling ink button

    • 14

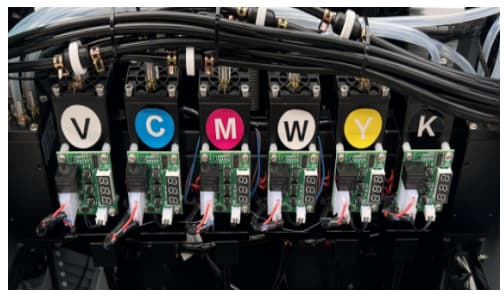

      14.secondary heating ink cartridge with negative pressure

    • 15

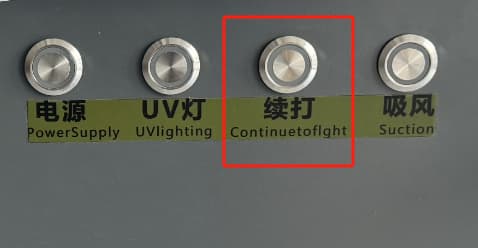

      15.Automatic positioning and continuing work function

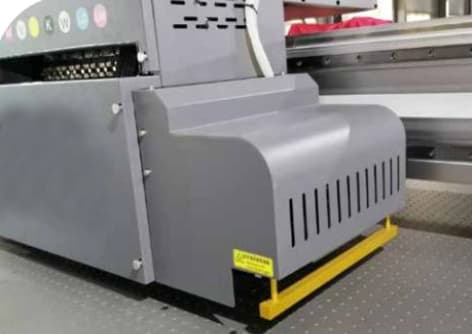

    • 16

      16.Bi-directions anti-collision function for carriage

    • 17 (1)

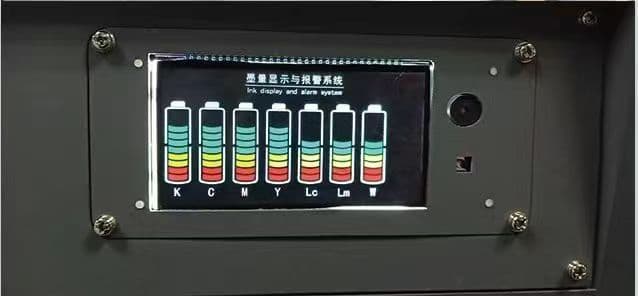

      17.Ink level display screen

    • 18

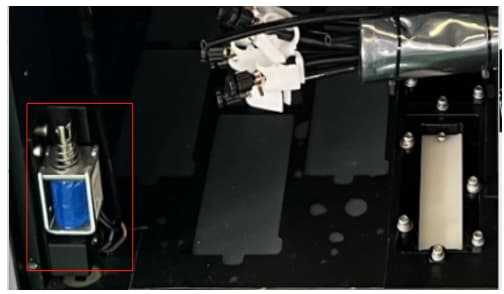

      18.Automatic head height measurement function

    Each imaging step is beyond your imagination.
    Diverse collisions, fashion meets technology.

    1.Personalized customization

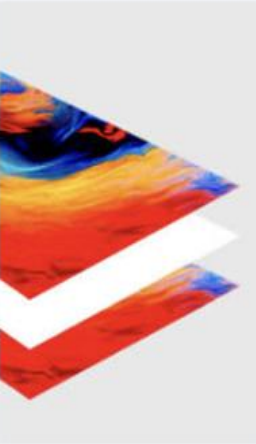

    1. Color-white-color

    CMYK +white+CMYK printed at the same time to achieve different positive effects of transparent material.



    color-white-color-effect





    2. Drop height print effect

    Break through the traditional plane printing, to achieve heterosexual surface high drop printing, breakthrough in the printing field



    drop-height-print-effect



    3. CMYK+white+varnish

    CMYK+white+varnish printed at the same time to to achieve the glossy printing effect and reduce the cost



    cmyk-white-varnish



    4.Embossed printing effect

    The embossed printing effect completed by the stacking of white ink, after UV lamp irradiation curing, the printing effect is richer and has the 3D effect !

    embossed-printing-effect

    PRODUCT ADVANTAGE

    1. Personalized customization

    Compared with other types of devices, our UV flatbed printers have no significant limitations in meeting personalized gift customization needs. They can customize craft gifts such as phone cases and stationery, and print patterns such as photos and portraits of people without restrictions. At the same time, for some companies with strong corporate culture, employee benefits, customer gifts, etc., the company logo can be printed at will, which has special significance.



    2. Multi effect display

    The UV printing effect of our UV flatbed printer is is outstanding . For example, the 3D visual presentation of printed patterns is uneven to the touch, which improves the authenticity and added value of the product. Especially after being covered with varnish, the effect is very realistic and the texture is highlighted.



    3. Strong adaptability

    From the perspective of material, operational skills, and adaptability to different industries, flatbed printers can meet the printing needs of over 90% of materials on the market, from soft materials to hard flat materials, including paper, cloth, plastic, PE, PVC, and other metal plates. In terms of machine operation, it is also an easy-to-use way to design software and hardware. Moreover, tablet applications can be seen everywhere in our daily lives.

    APLLICATION AREAS

    Advertising Industry

    • KT board UV printer

      KT board UV printing

    • glass UV printer

      glass UV printer

    • acrylic UV printer

      KT board UV printer

    • PVC board  PMMA board UV printer

      PVC board PMMA board UV printer

    • Stainless steel sheet UV printer

      Stainless steel sheet UV printer

    • UV flatbed printer for Aluminum plate

      UV flatbed printer for Aluminum plate

    Decoration Industry

    • canvas printer

      canvas UV printing

    • ceramic tile UV printing machine

      ceramic tile UV printing

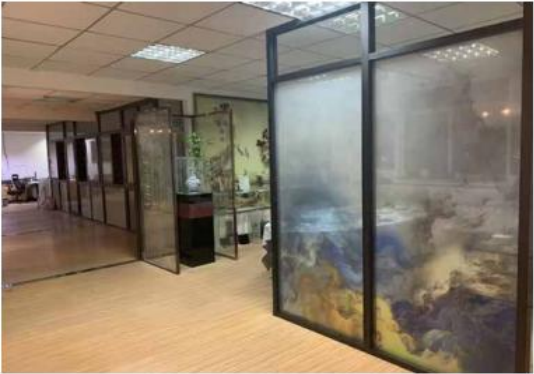

    • glass printer

      glass door UV printing

    • wood floor UV printing machine

      Wood Floor UV printing

      • flooring leather UV printing machine

        flooring leather UV printing

      • PVC Loop Door Mat UV printer

        Doormat UV printing

      Packaging Industry

      • tea can gift box printing machine

        gift box UV printing

      • wood packaging box UV pritning machine

        Wood box UV printing

      • metal box UV printer

        metal box UV printing

      • cardboard carton digital printer

        carton box UV printing

      • cosmetics  packaging box  printing machine

        cosmetics packaging box UV printing

      • Food-Packaging-Box--printer

        fast food box UV printing

      Gifts & Crafts Industry

      • key Pendant positioning printing machine

        Key pendant UV printing

      • Souvenir badge uv printing machine

        Souvenir badge UV printing

      • Refrigerator magnet printer machine

        refrigerator magnet UV printing

      • phone-case-printing-machine

        phone case UV printing

      • lighter uv printing machine

        lighter UV printing

      • toy uv printer

        toy UV printing
