2513 UV Flatbed Printer for acrylic wood glass leather etc

2513 UV Flatbed Printer for acrylic wood glass leather etc
Print Heads: Ricoh G6 heads (Ricoh G5/G5S, Konica 1024A heads optional)
Printhead Quantity: 2-8pcs
Max Printing Size: 2500x1300mm
Color: CMYK+W/CMYK+W+V/ Double CMYK+W/ Four CMYK/CMYK+W+CMYK/CMYKLcLm+W+V optional
Speed:10-40㎡/h
Application: Acrylic, glass, metal, wood, ABS board, PVC sheet, plastic, billboard, canvas, ceramic tile, phone cover, ceramic tile, flooring leather, sample book etc.
Visual positioning function can be optional for irregular-shaped products

Product Introduction

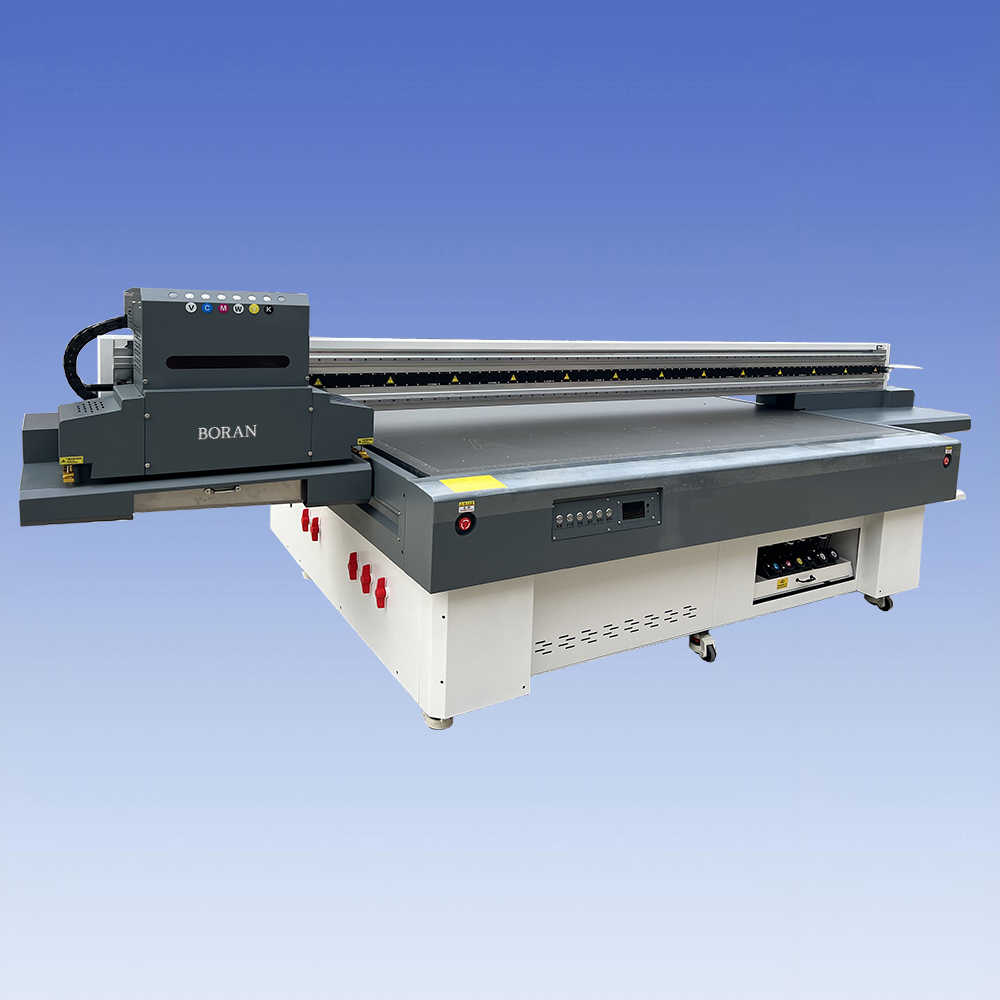

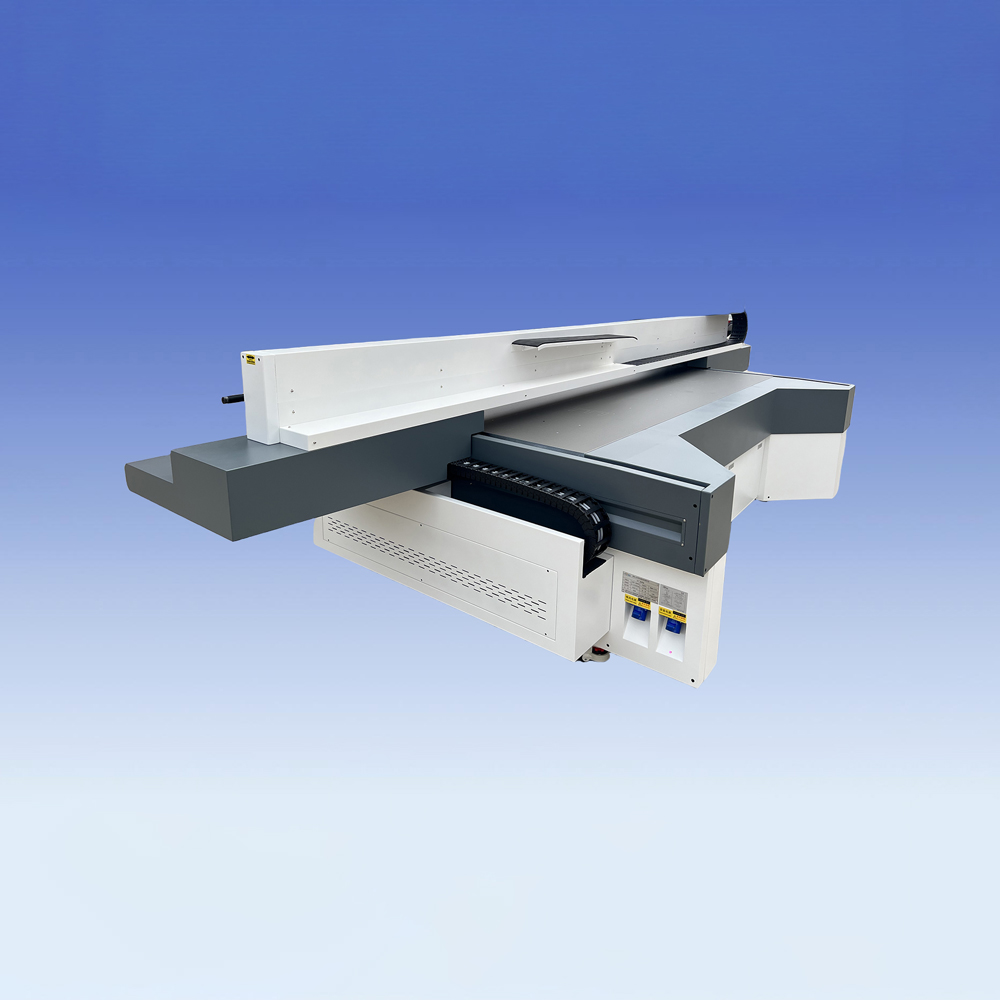

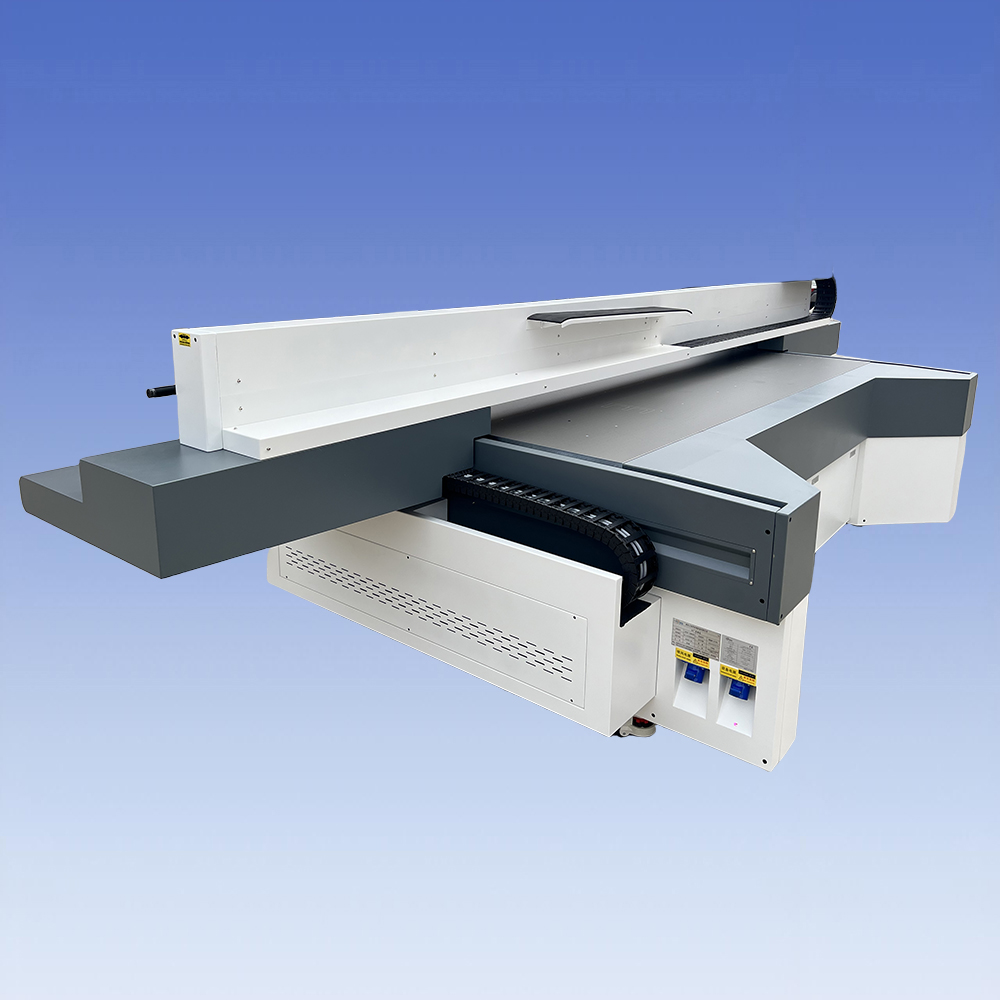

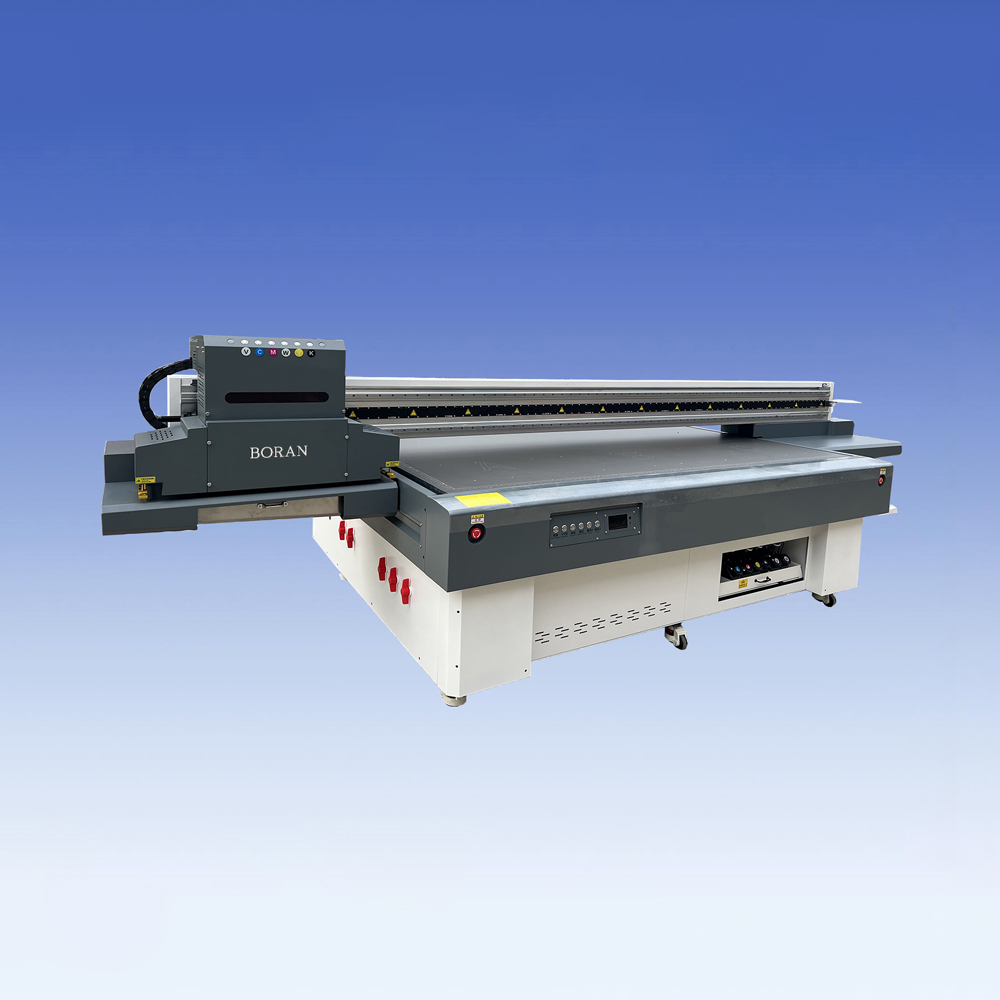

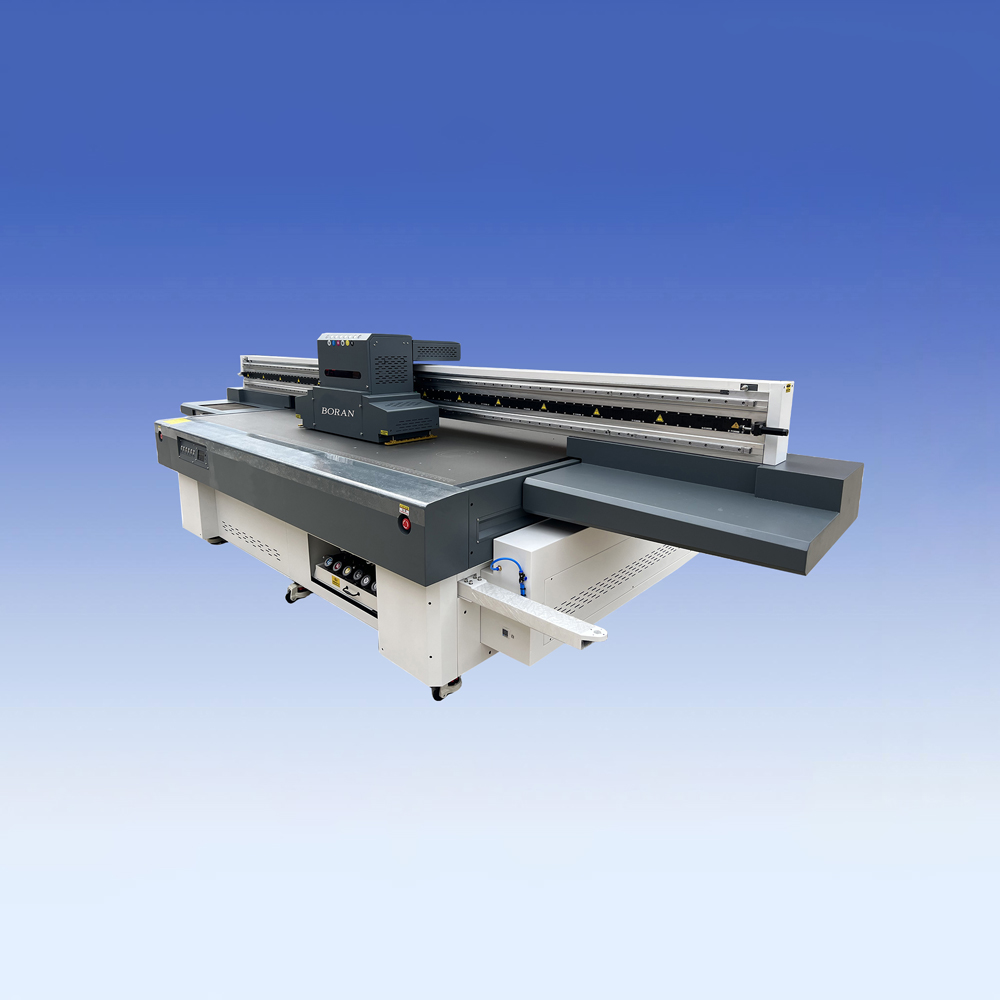

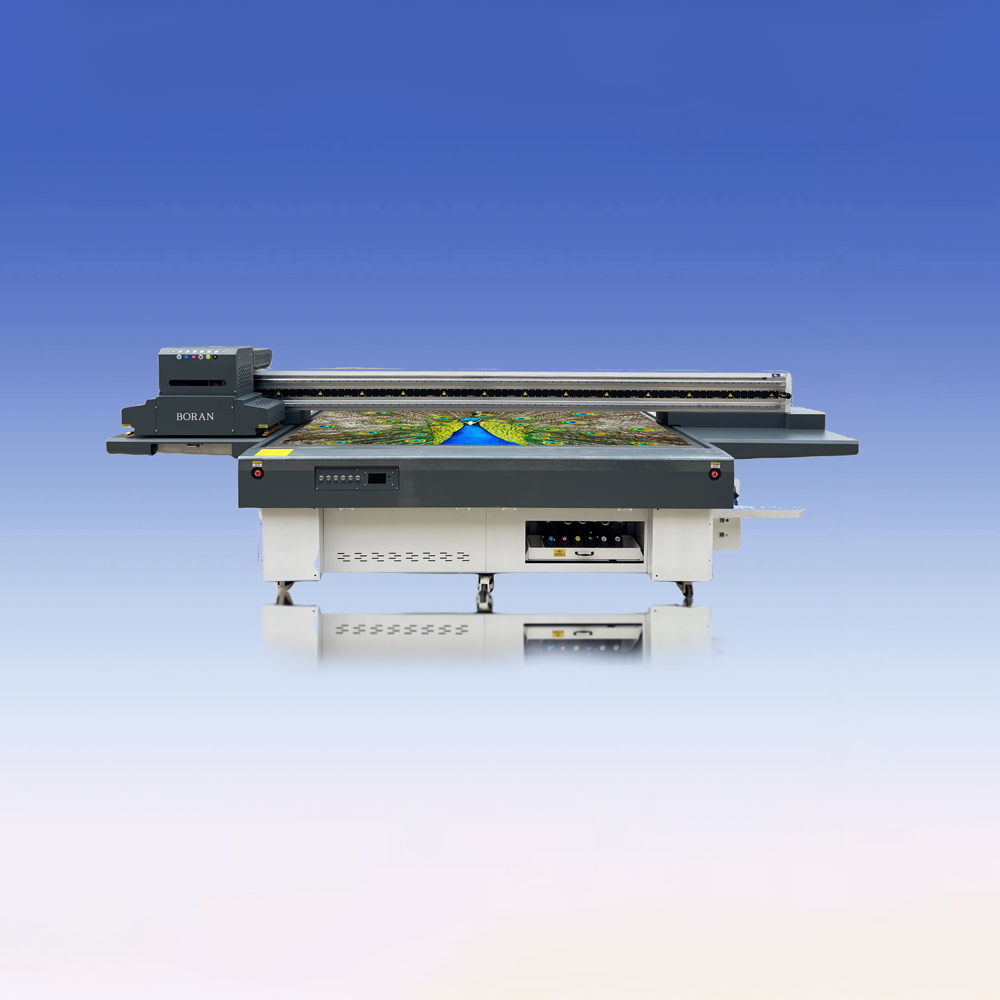

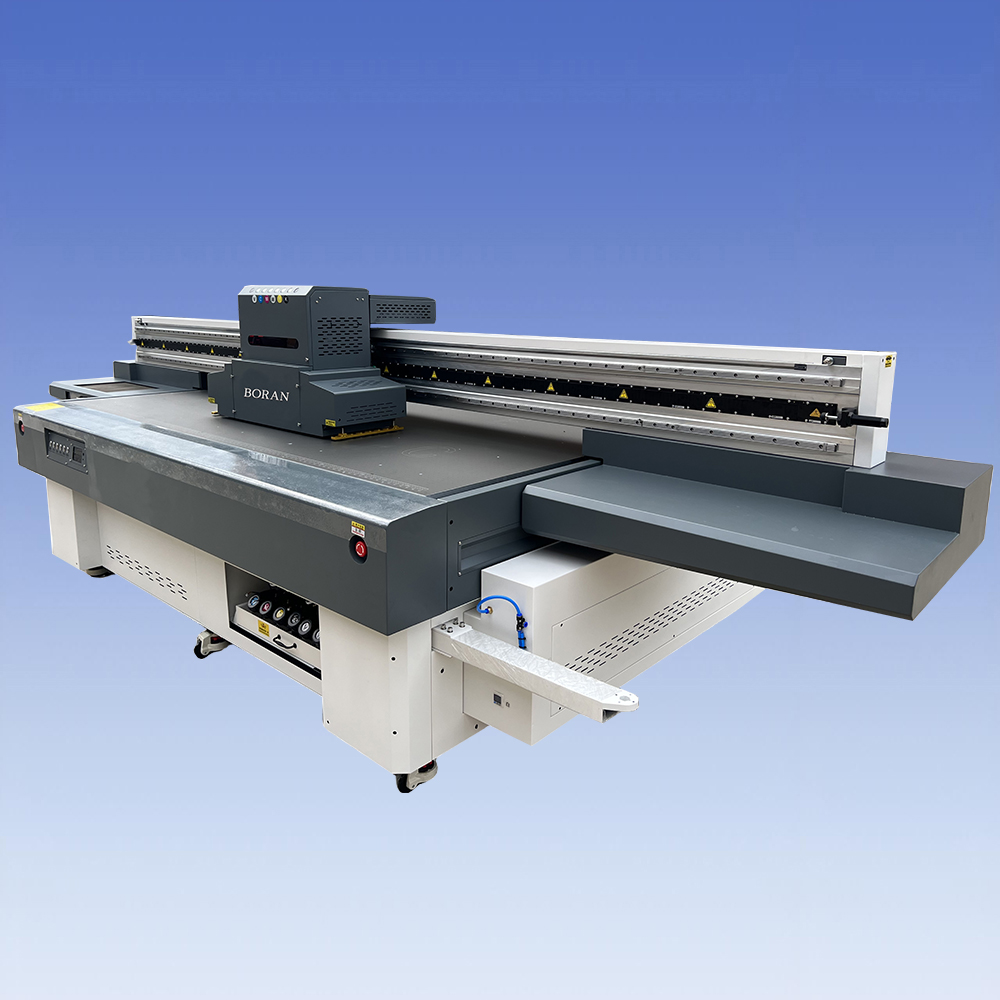

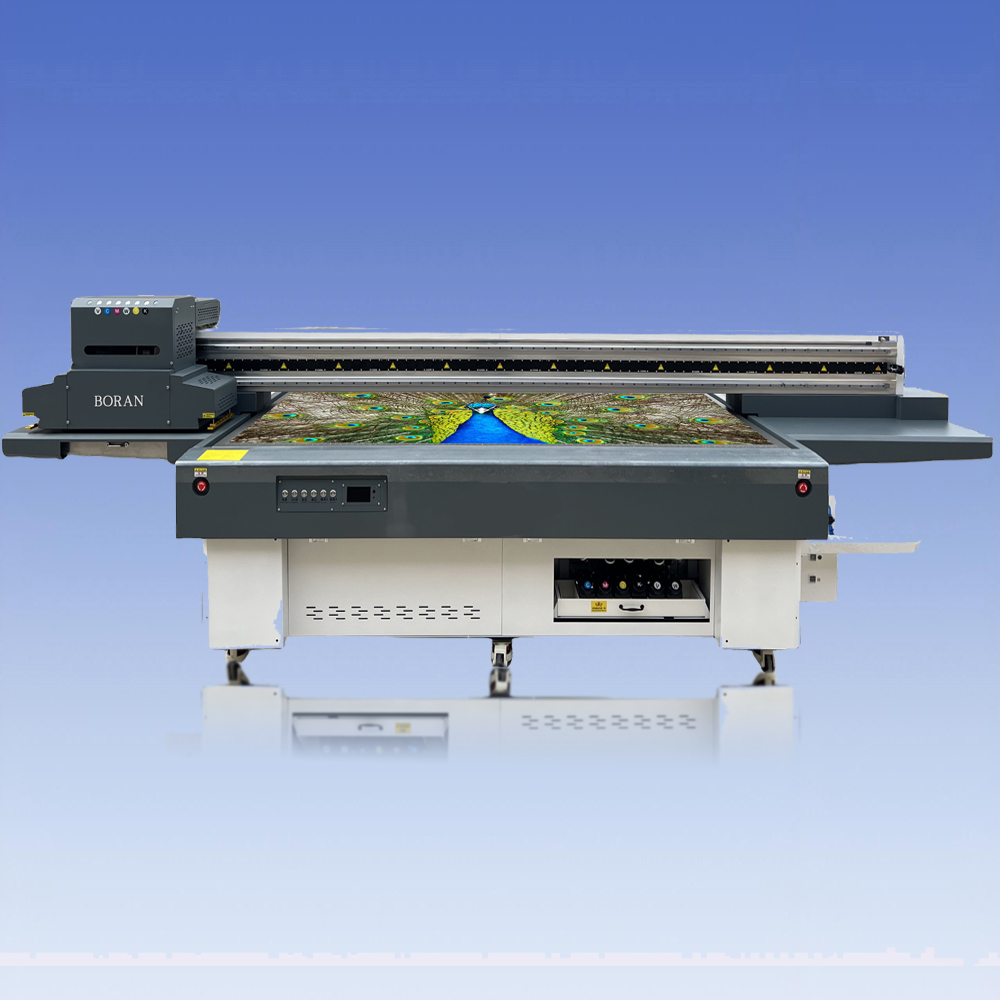

BORAN Large Format Industrial 2513 UV Led Flatbed Printer with AI-scanner Camera is a high-quality large format UV flatbed printer for industrial-level production. Its max printing size is 2.5x 1.3m. It supports 2-8pcs of Ricoh G5/G6 printheads which allows for a wide range of speed requirements and more color can be optional.

AI-scanner Camera system can visual position some Irregular- shaped products, which makes these irregularly-shaped products more accurate.

Our large format UV flatbed printer has been widely used for acrylic, glass, metal, wood, ABS board, PVC sheet, plastic, billboard, canvas, ceramic tile, phone cover, ceramic tile, flooring leather, sample book etc.

01020304

Specification

MODEL	BR-R2513
PRINT SIZE	2500mm×1300mm

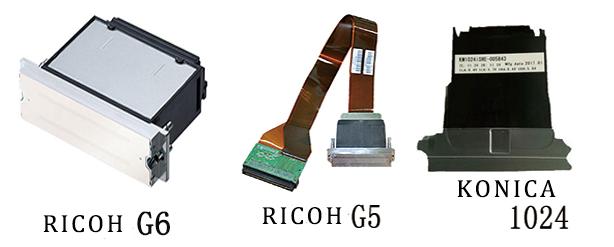

PRINT HEAD	Ricoh G6 Heads （Ricoh G5 /Konica 1024A heads optional）
PRINTHEAD QUANTITY	3 PCS (3-8pcs optional)
PRINTHEAD HEIGHT	100mm
PRINT WEIGHT	Max Weight 100kg
PRINT PRECISION &PRINT SPEED	4pass 726dpi×600dpi	20㎡/h (3 heads)
	6pass 726dpi×900dpi	15㎡/h (3 heads)
	8pass 726dpi×1200dpi	10㎡/h (3 heads)
INK	UV Ink
PRINT COLOR	CMYK+W/CMYK+W+V (Double CMYK+W/3 CMYK+W/4 CMYK /CMYKLcLm+W+V optional)
Print Media	PVC board, PS Board，foam board, metal, glass ,ceramic tile, acrylic,KT board ect. various types of Board material
PLATFORM ADSORPTION	Double1500W Turbo fan
DRYING SYSTEM	UV led
RIP SOFTWARE	PHOTOPRINT
COMPUTER OPERTIAON SYSTEM	Windows 7/Windows 10
FILE FORMAT	TIFF,PDF,JPEG
POWER REQUIREMENT	AC220V(+10),50HZ~60HZ, 4.5KW
ENVIRONMENT	Temperature:20℃-32℃，Humidity:40%-60%,
MACHINE SIZE	L×W×H(4750×2200×1450)MM
PACKAGE SIZE	L×W×H(4850×2300×1750)MM

Product Features

1.Imported industrial grade print head Ricoh heads:

Ensure printer higher precision,faster speed and longer service life

Support CMYK+W+V/Double CMYK+W/Four CMYK/CMYKLcLm+W+V

Support 2-8 heads for meeting different speed requirement

Head max print height 100mm and 15mm high drop printing for printing media.

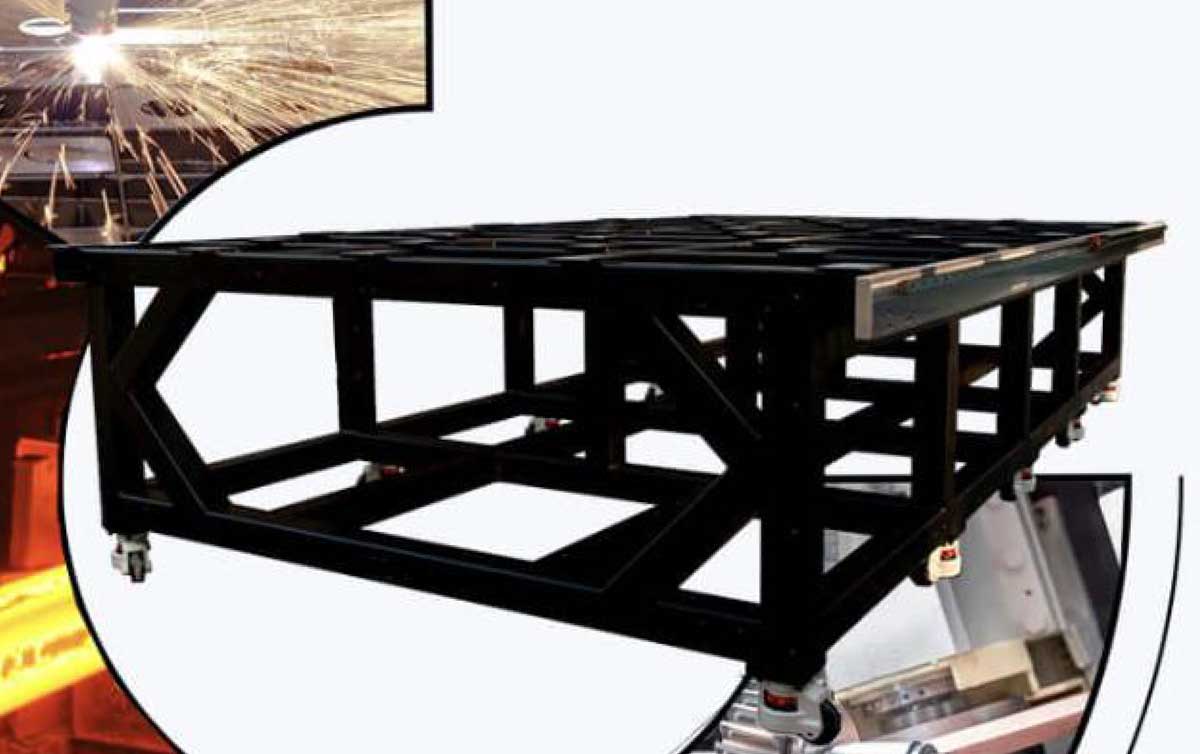

2. Integral steel frame :

seamless welding and tempering so that deformation is avoided during use and transportation.

Integral gantry milling to ensure the assembly accuracy

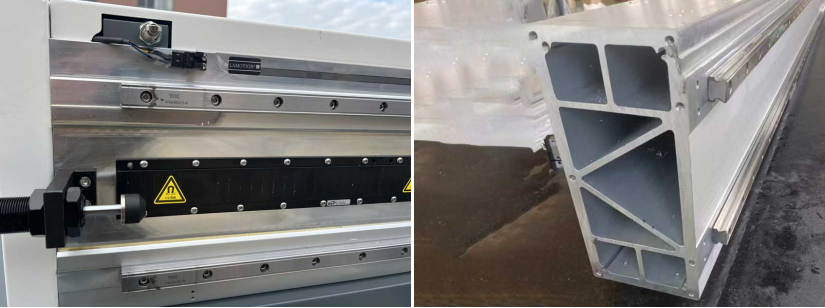

3.Aviation industry aluminium beam with imported Double THK guide rail:

High-quality structure ensure higher precision of printing and the printing stability, and the printer life longer.

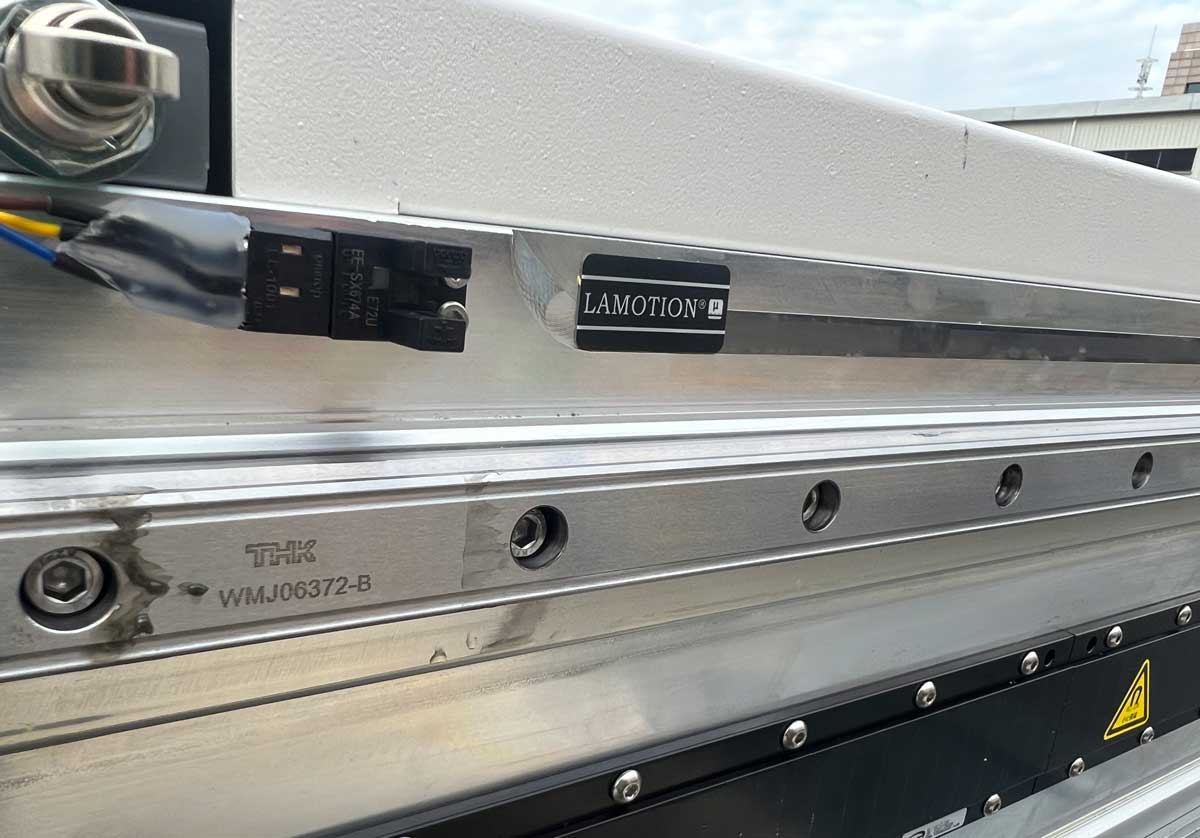

4.Imported 1 micron metal grating:

Ensure high positioning accuracy and no flying carriage

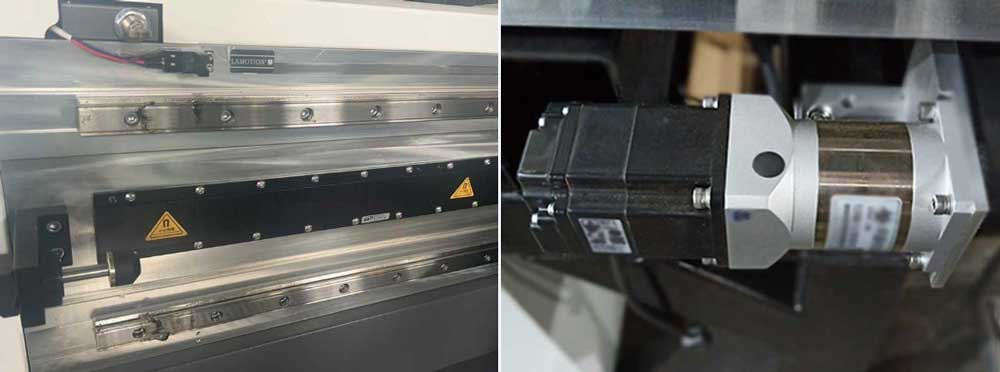

5.Imported magnetic levitation linear motor in x axis & Double precision screw rod with double grinding technology and imported Fuji Motor in Y axis:

reliable and long life, fast printing speed, simple structure, accurate ink point position, high positioning accuracy, easy maintenance, low printing noise, fast response speed, long running time without wear.

Compared with transmission belt drive, printing speed of the linear motor is increased by 20%-25%, which greatly meets the customer's requirements for printing speed.

Low noise effectively alleviate noise in working environment, reliable and long life can effectively reduce replacement cost.

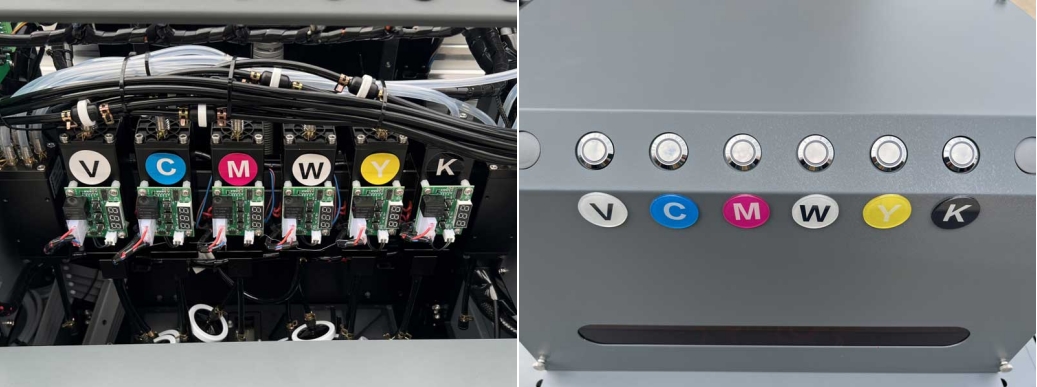

6.secondary ink cartridge & color-separation ink pressing button:

Ink thermostat system from secondary ink cartridge ensures ink can reach the specified temperature, and ink printing is Smoother, the printing effect is better.

The color-separation ink pressing button can better control fill ink one by one color , so that ensure the quality of printing.

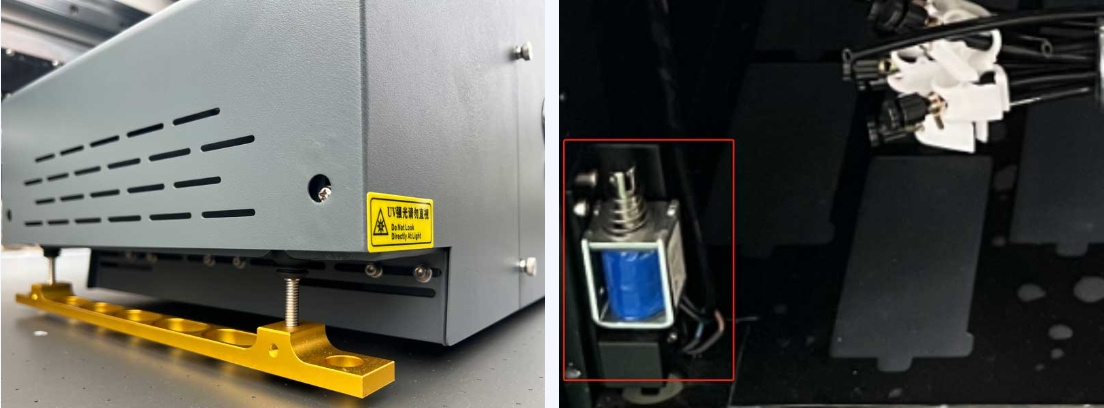

7.Anti-collision system &Eliminate static electricity system& Automatic height measurement system

Anti-collision device can resume printing.

Eliminate static electricity system can remove static electricity generated on material surface and ensure the printing effect

Automatic height measurement system can measure the material thickness automatically.

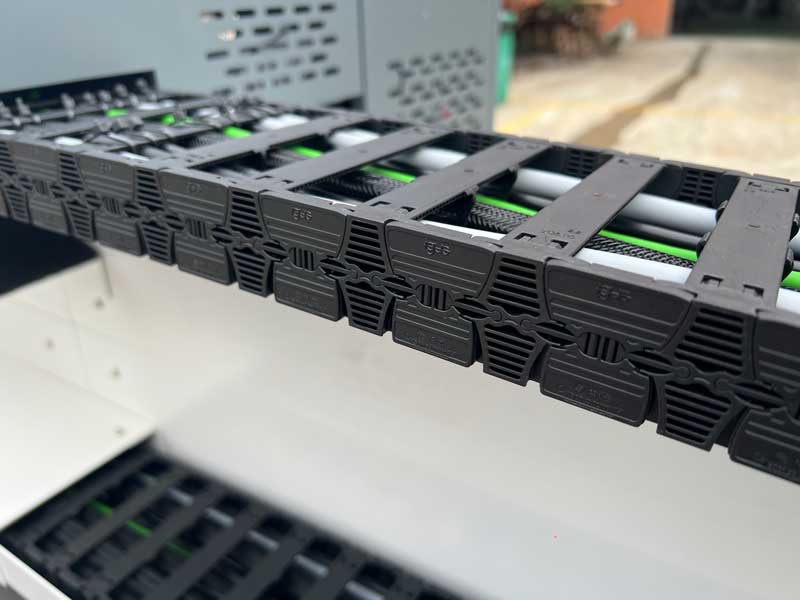

8.German IGUS tow chain:

German IGUS tow chain with long life and low sound， which is installed to ensure long-term stability and reliability.

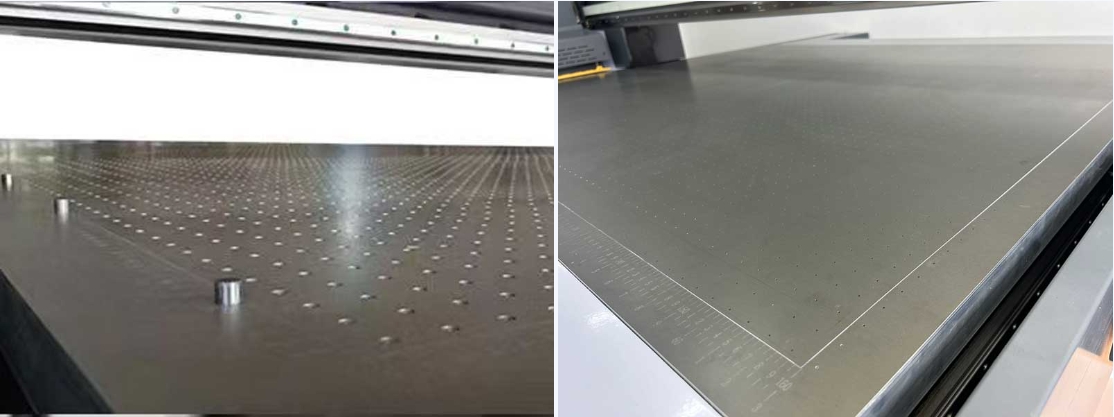

9.Thickened Hard-oxidized alumina adsorption platform with automatic positioning function:

platform surface has high hardness, scratch resistance, corrosion resistance, easy to clean

Hard-oxidized adsorption platform has strong adsorption capacity , which can effectively absorb printing material during printing process, prevent printing material from shifting, effectively ensurehigh-precision printing output, avoid print heads scraping caused by material warping and damage problem.

Segmented adsorption function ensures adsorption area can be adjusted at will, which ensure you can print different sizes of material better.

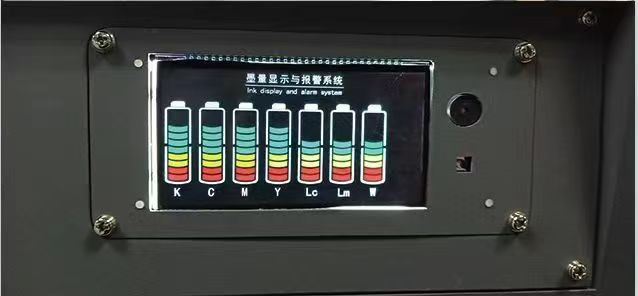

10. Ink level display screen

The ink level display on the ink level screen ensure more accurately display the remaining ink level, in order to replenish ink in a timely manner and ensure uninterrupted printing
