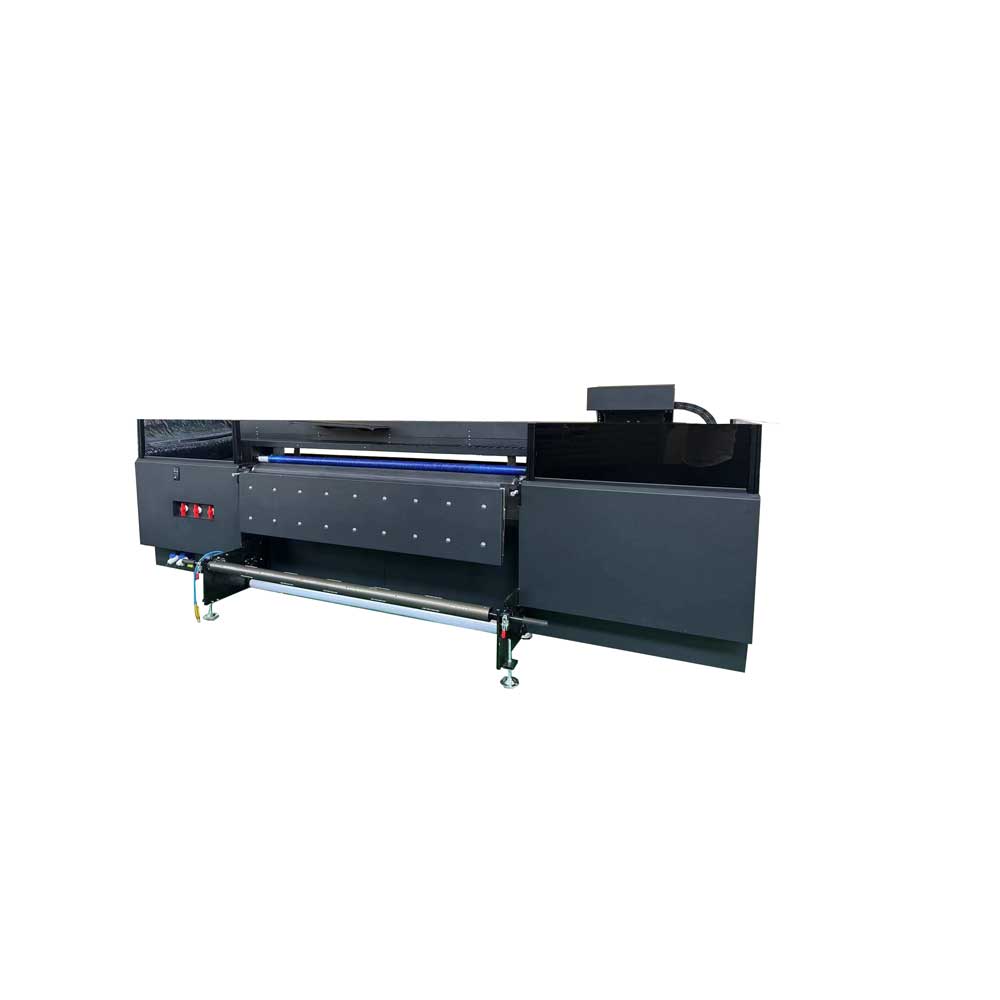

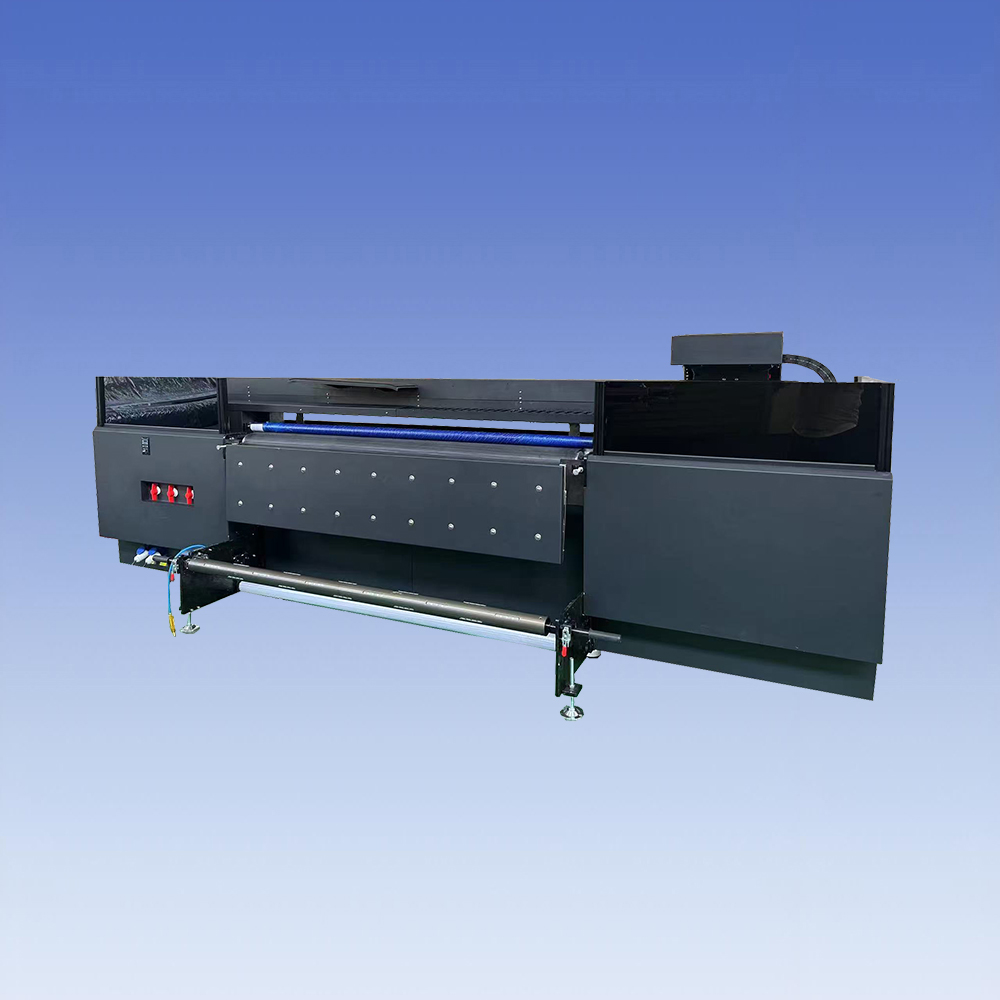

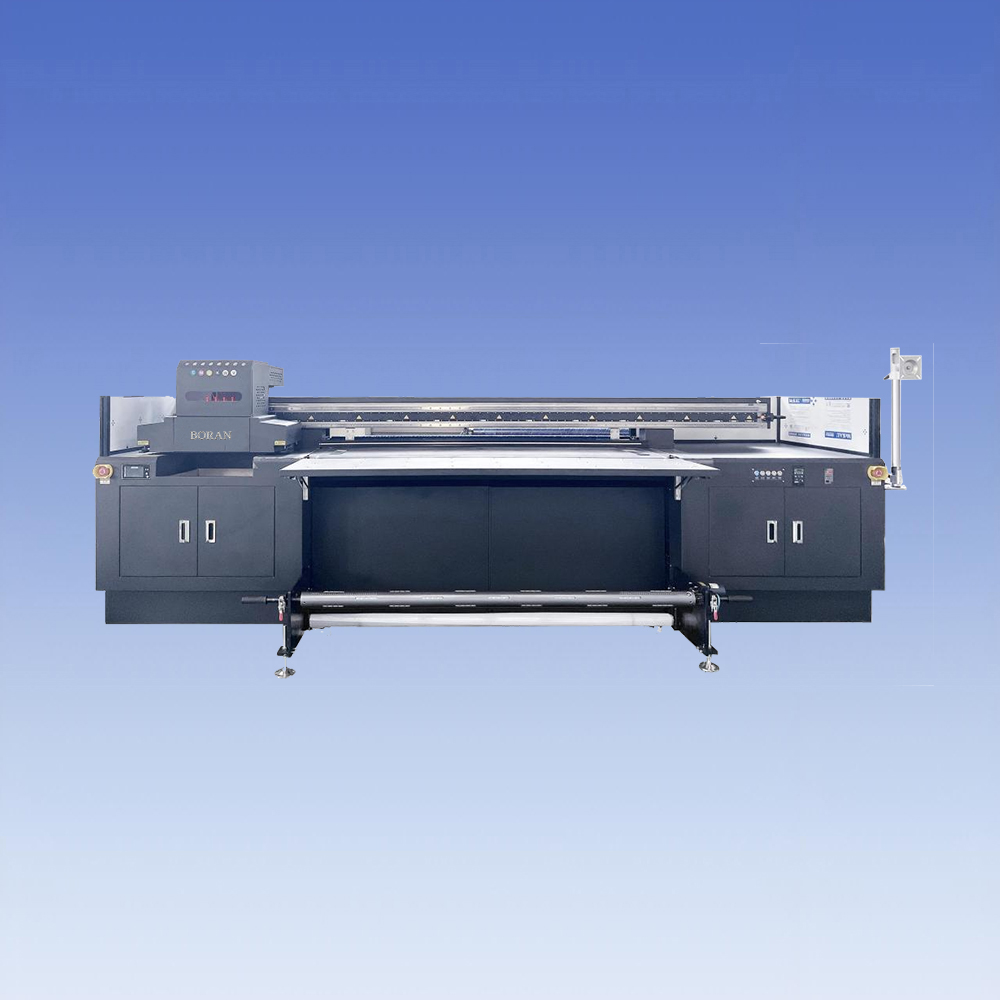

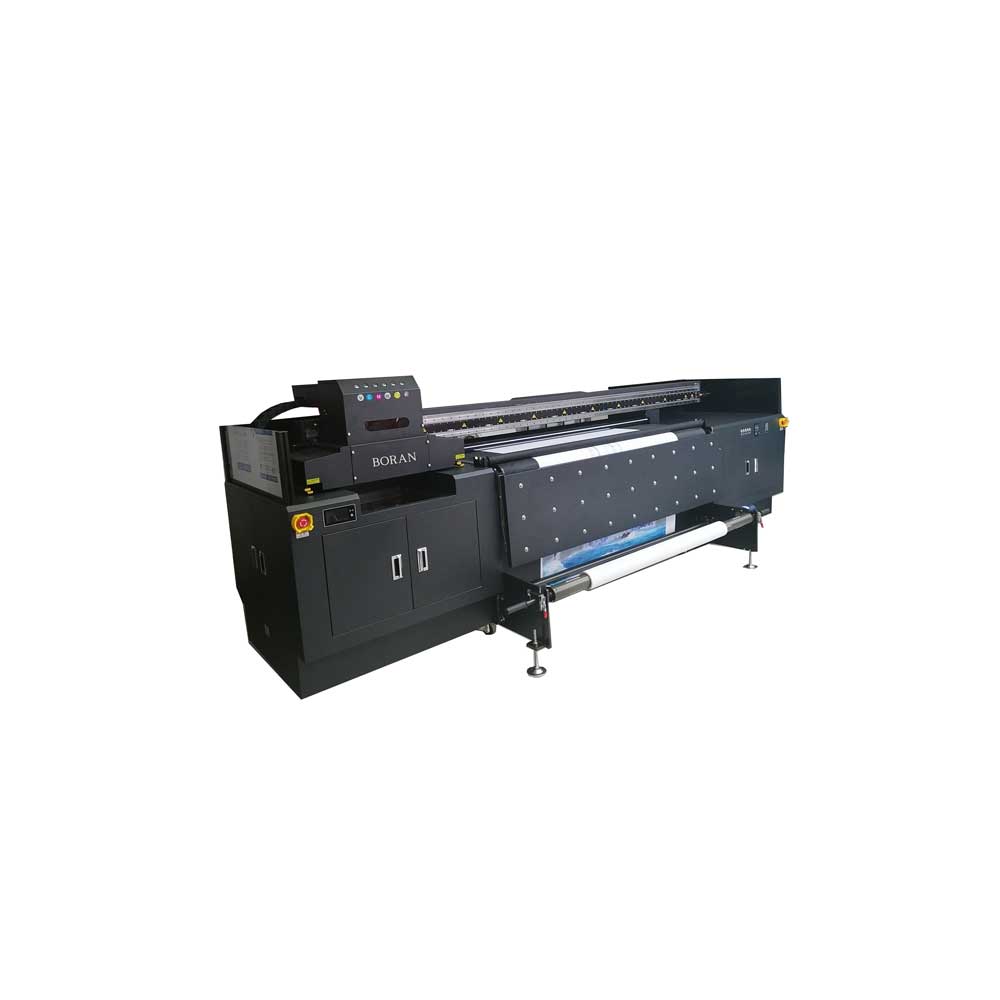

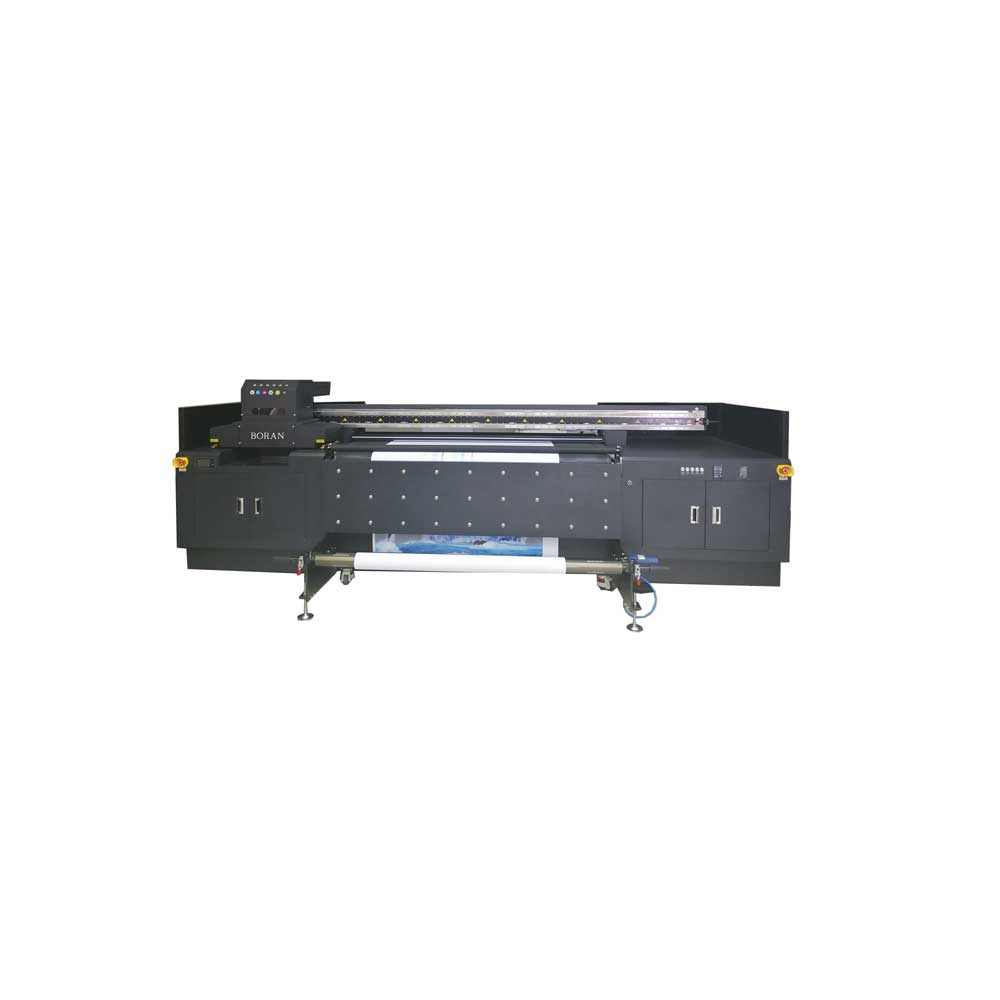

1.8m Flatbed and Roll UV Hybrid Printer for KT board, PVC, Soft Film, Leather

Flatbed and Roll UV Hybrid Printer 1.8m for KT board, PVC,soft film, leather etc

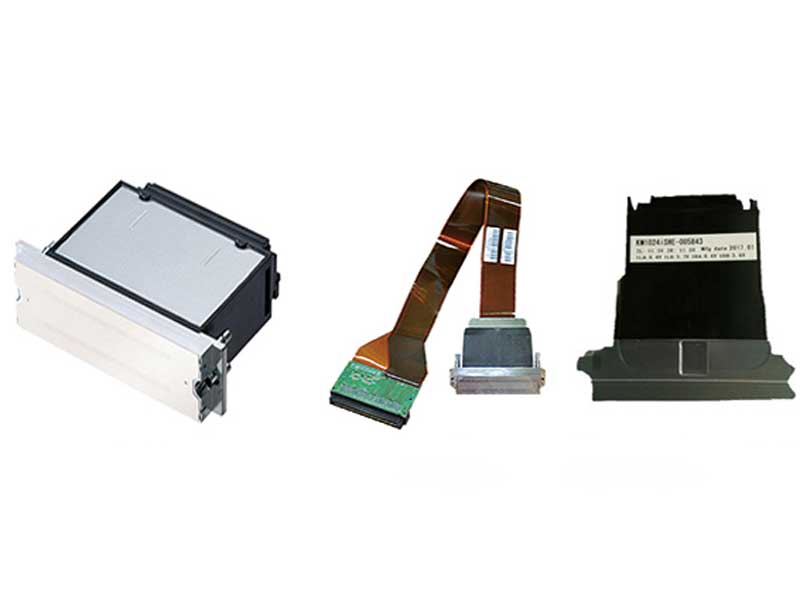

Print heads: Ricoh G5/G6 heads (2- 8 pcs, Konica 1024A heads optional)
Size: 1800mm
Color: CMYK+W/CMYK+W+V/ Double CMYK+W/ Four CMYK/CMYK+W+CMYK
Speed: 10-40㎡/h
Application: UV hybrid printer not only can print roll to roll materials, but also can print board materials. It has been widely used for acrylic, glass, metal, wood, ABS board, PVC sheet, plastic, billboard, canvas, ceramic tile, phone cover, ceramic tile, flooring leather, sample book etc.

Product Introduction

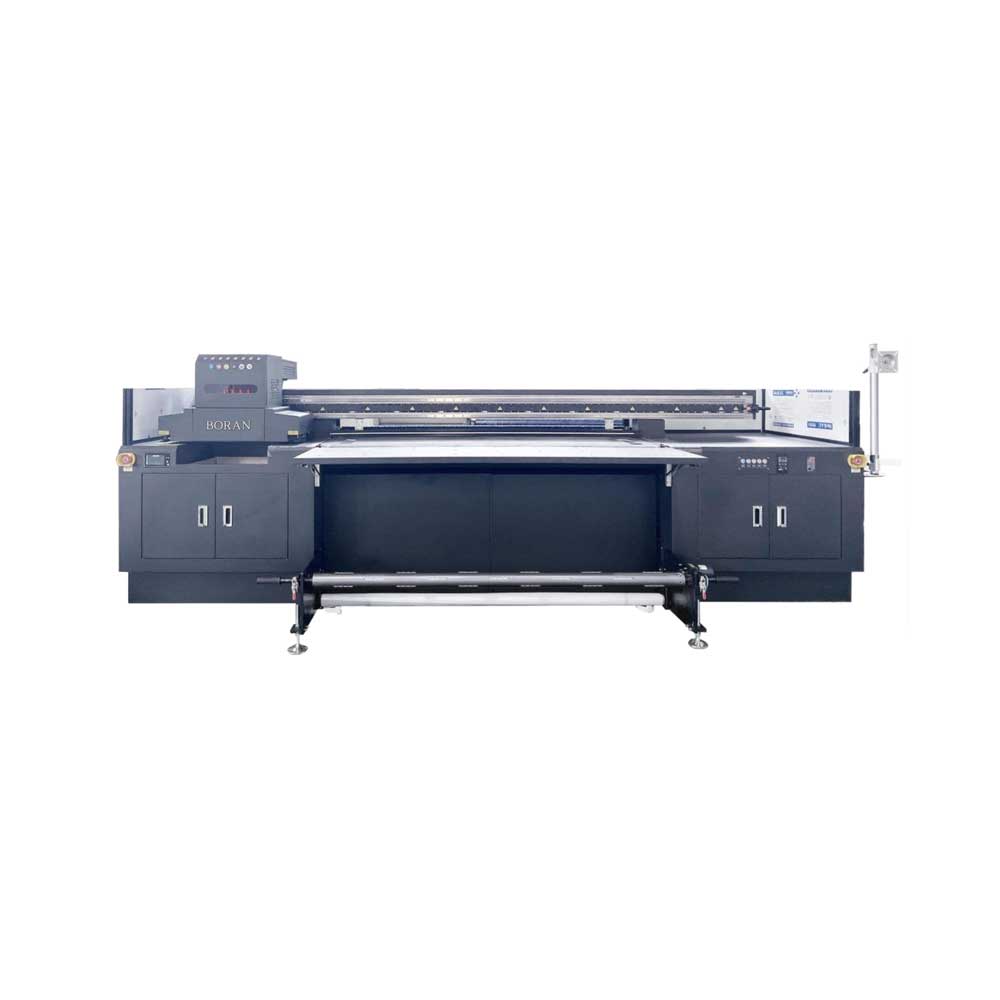

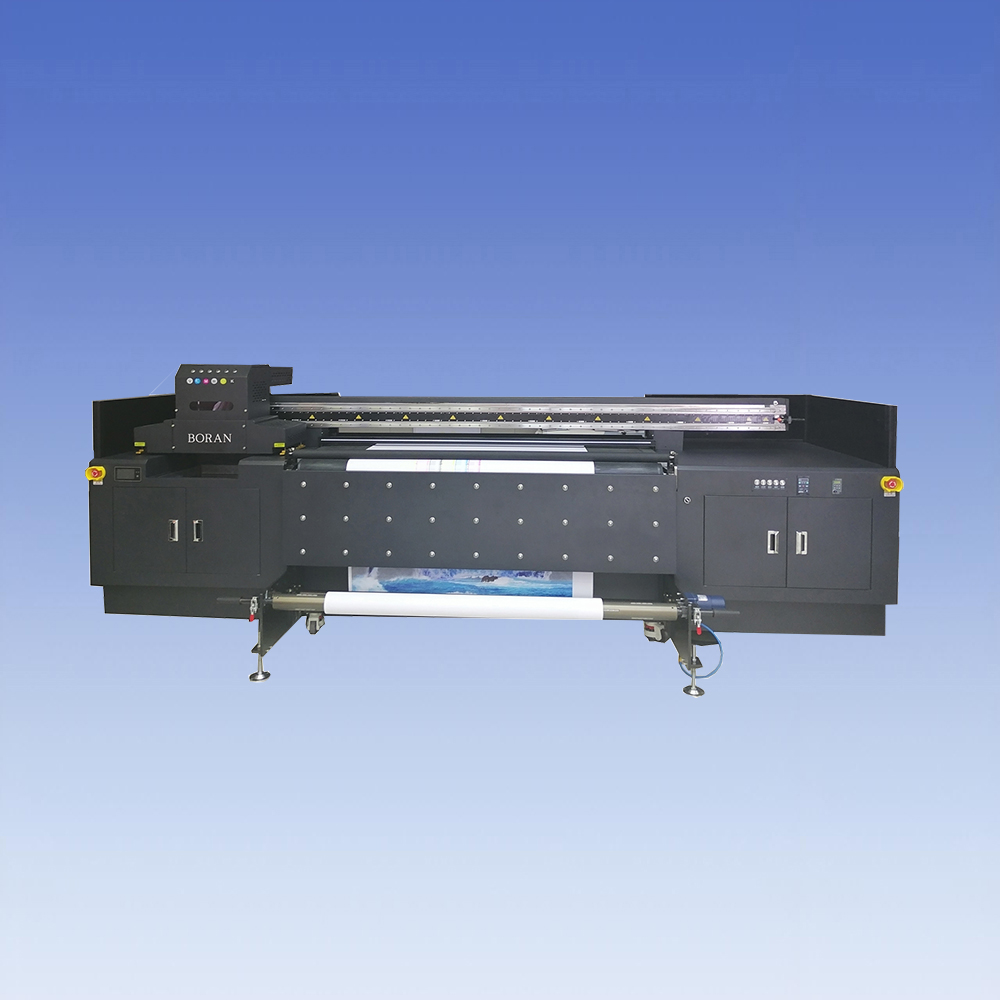

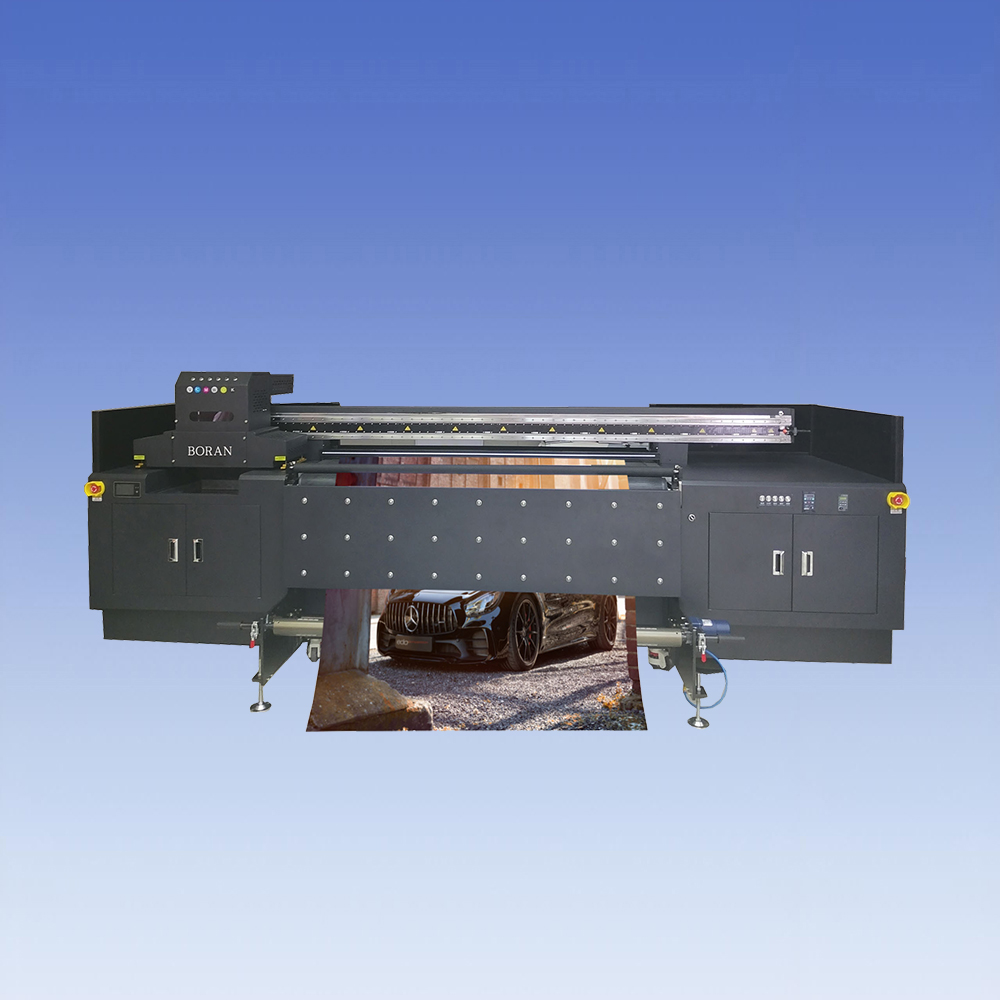

Flatbed and Roll UV Hybrid Printer 1.8m for KT board, PVC,soft film, leather is a high-quality large format UV hybrid printer for industrial-level production. Its max printing width is 1.8m. It supports 2-8pcs of Ricoh G5/G6 printheads or Konica1024A which allows for a wide range of speed requirements and more color can be optional.

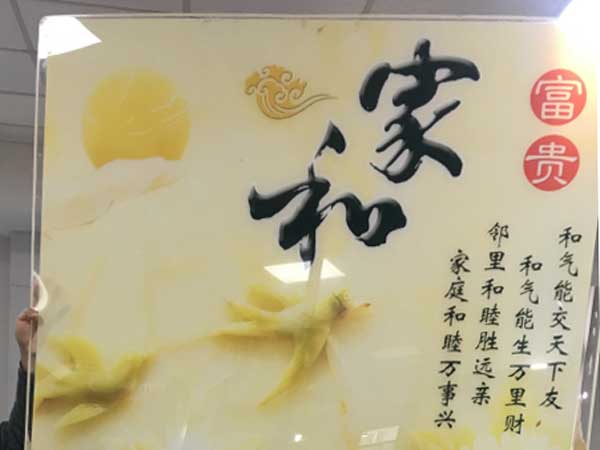

Our UV hybrid printer has been widely used for acrylic, glass, metal, wood, ABS board, PVC sheet, plastic, billboard, canvas, ceramic tile, phone cover, ceramic tile, flooring leather, brochure,sample book,bottle, cups etc.

01020304

Technical Parameters

MODEL	BR-H1800
PRINT WIDTH	1800mm
PRINT HEAD	RicohG5/ G6 Heads （Epson I3200 heads optional）
PRINTHEAD QUANTITY	3 PCS (3-8pcs optional)
PRINTHEAD HEIGHT	100mm
PRINT WEIGHT	Max Weight 100kg
PRINT PRECISION &PRINT SPEED	4pass 726dpi×600dpi	20㎡/h (3 heads)
	6pass 726dpi×900dpi	15㎡/h (3 heads)
	8pass 726dpi×1200dpi	10㎡/h (3 heads)
PRINT SPEED	20㎡/h	15㎡/h	10㎡/h
INK	UV Ink
PRINT COLOR	CMYK+W/CMYK+W+V/CMYK+W+CMYK (Double CMYK+W/3 CMYK+W/4 CMYK /CMYKLcLm+W+V optional)

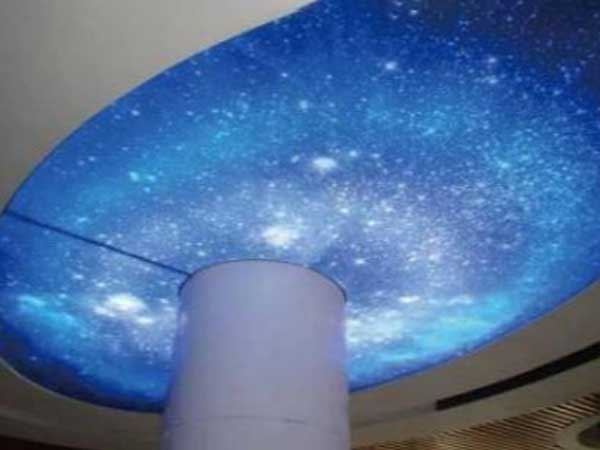

PRINT MEDIA	Banner,light sheet, PVC soft film,wallpaper,leather,mat ,PVC board, PS Board，foam board, metal, glass ,ceramic tile, acrylic,KT board ect. various types of roll to roll material & Board material

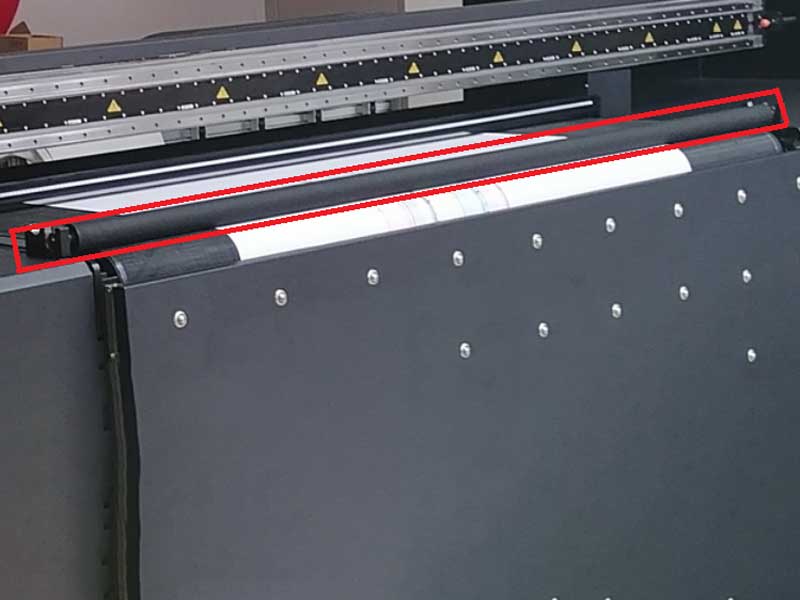

PLATFORM ADSORPTION	1500W Turbo fan
DRYING SYSTEM	UV led
RIP SOFTWARE	PHOTOPRINT
COMPUTER OPERTIAON SYSTEM	Windows 7/Windows 10
FILE FORMAT	TIFF,PDF,JPEG
POWER REQUIREMENT	AC220V(+10),50HZ~60HZ, 3.5KW
ENVIRONMENT	Temperature:20℃-32℃，Humidity:40%-60%
MACHINE SIZE	L×W×H(4100×1700×1550)MM
PACKAGE SIZE	L×W×H(4200×1800×1800)MM
