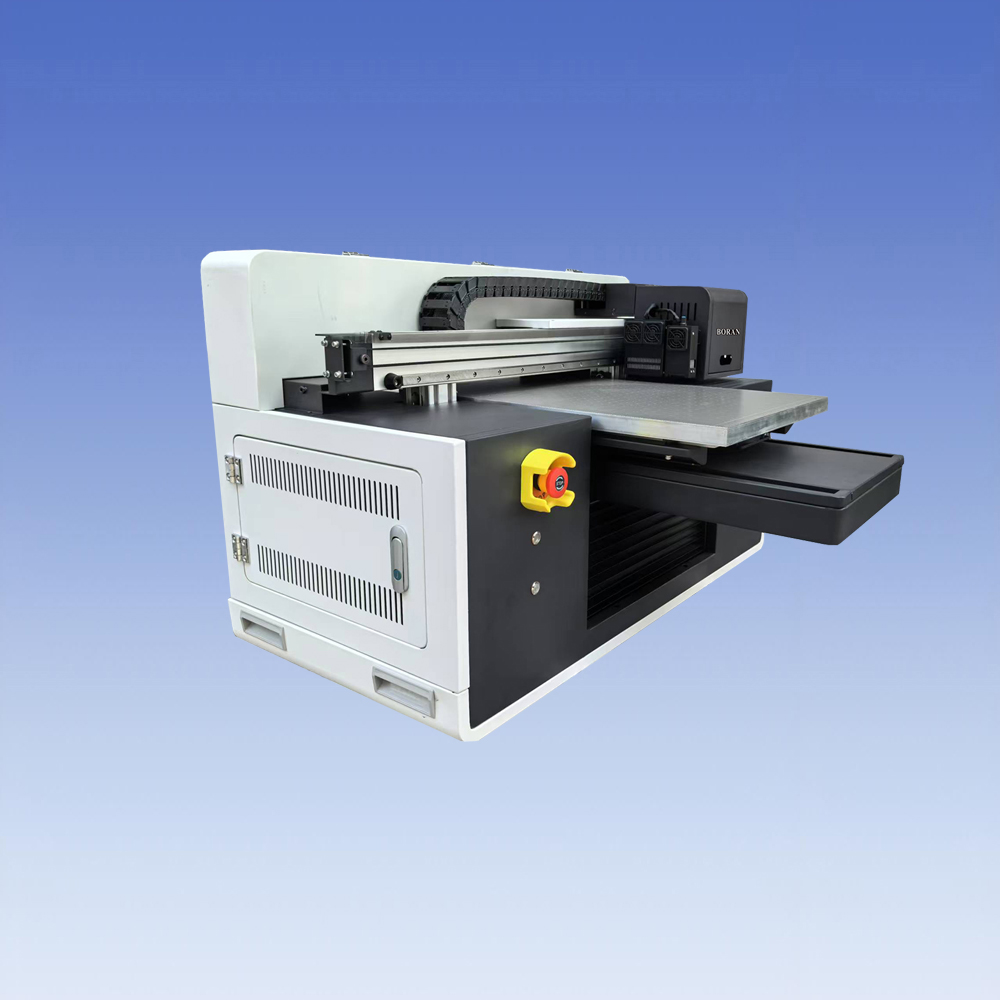

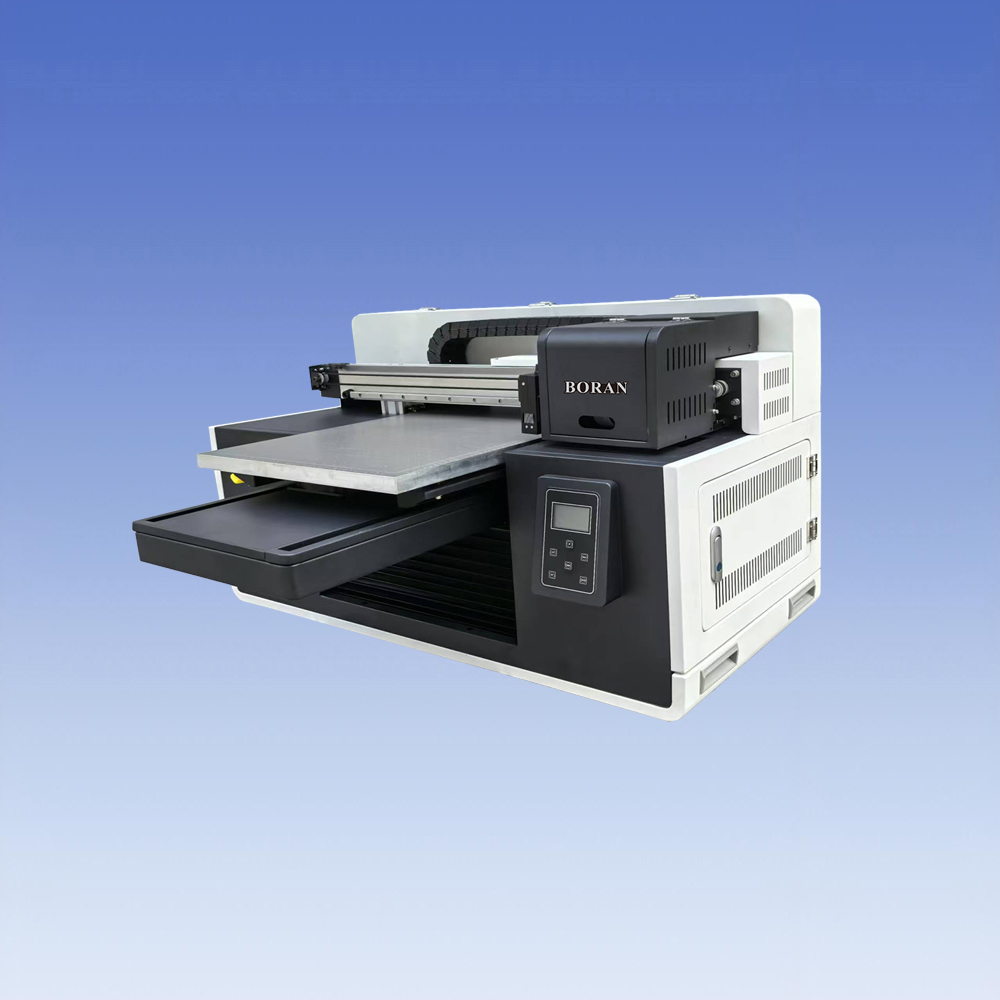

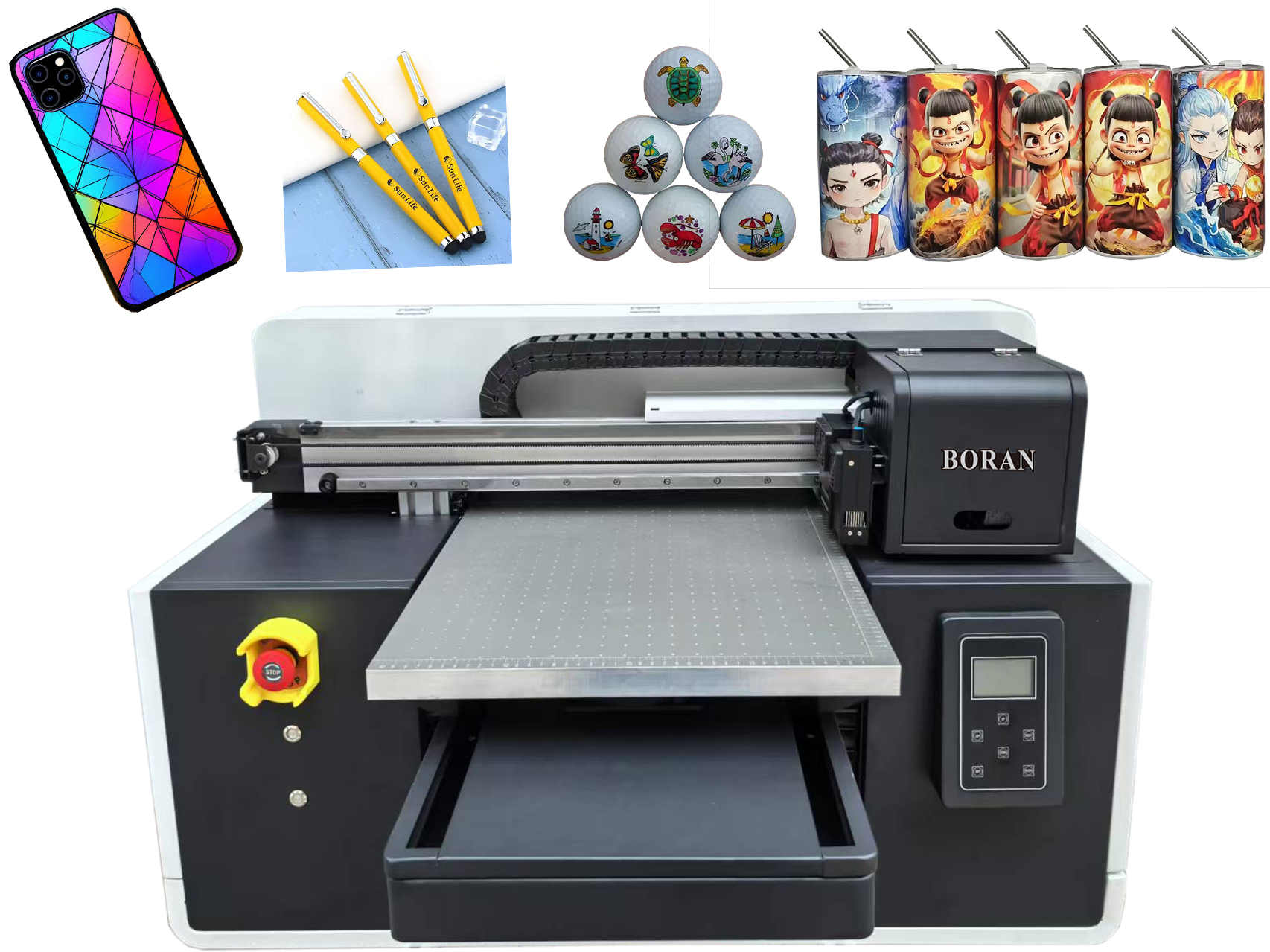

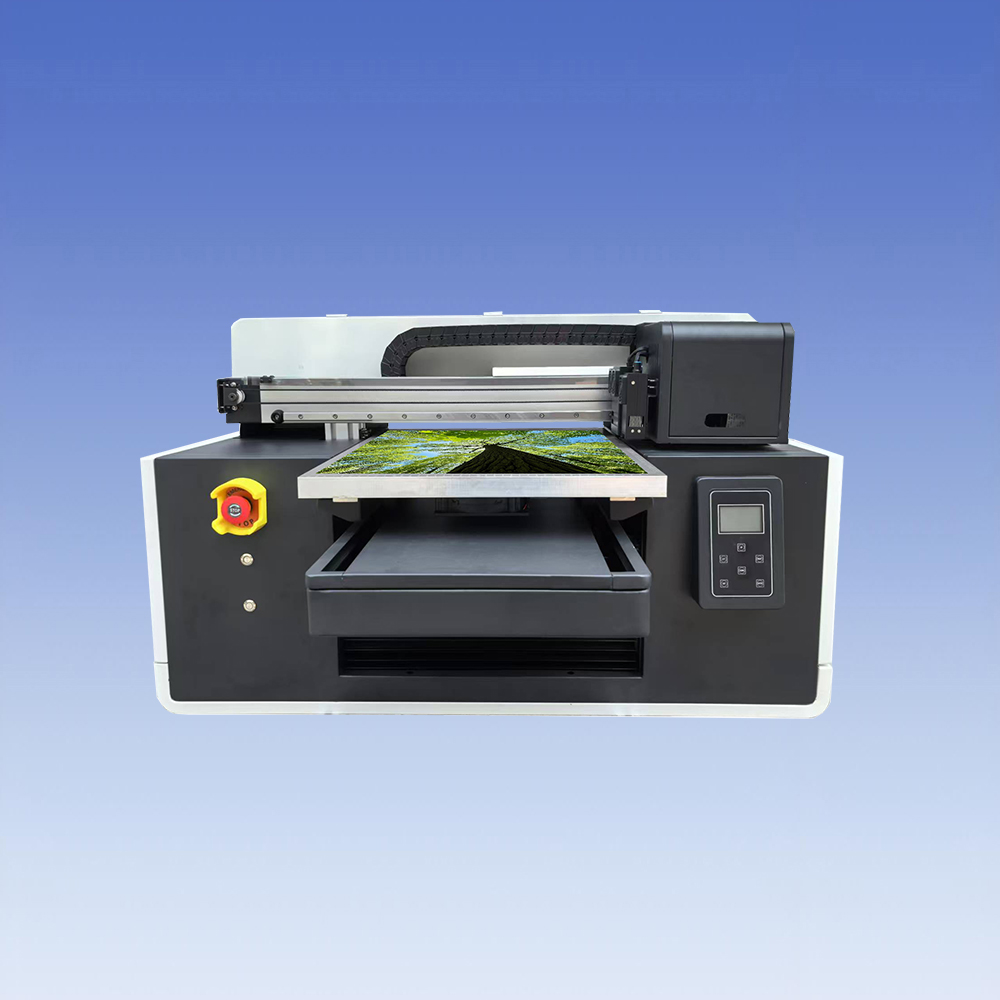

A2 UV FLATBED PRINTER 42×60cm size
A2 UV FLATBED PRINTER 42×60cm size
Technicial Parameters
|
MODEL |
BR-UV4260 |
|
|
PRINT SIZE |
420mm×600mm |
|
|
PRINT HEAD |
Epson XP600 or TX800 heads |
|
|
PRINTHEAD QUANTITY |
2PCS
|
|
|
PRINTHEAD HEIGHT |
150mm |
|
|
LIFTING FUNCTION |
Intelligent platform lifting |
|
|
Ink supply system |
Automatic ink supply |
|
|
PRINT PRECISION &PRINT SPEED |
4pass 720dpi×720dpi |
4m²/h (SKETCH MODE) |
|
|
8pass 1440dpi×720dpi |
2.5m²/h (PRODUCTION MODE) |
|
|
12pass 1440dpi×1440dpi |
1m²/h (RESOLUTION MODE) |
|
INK
|
UV ink |
|
|
PRINT COLOR
|
CMYK/dual CMYK/CMYK+W/CMYK+W+V
|
|
|
PRINT WEIGHT
|
20KG |
|
|
DRYING SYSTEM |
UV led |
|
|
RIP SOFTWARE |
MAINTOP |
|
|
COMPUTER OPERTIAON SYSTEM |
Windows 7/Windows 10 |
|
|
FILE FORMAT |
TIFF,PDF,JPEG etc. |
|
|
POWER REQUIREMENT |
AC220V(+10),50HZ~60HZ,100W |
|
|
ENVIRONMENT |
Temperature:20℃-28℃，Humidity:40%-60%, |
|
|
MACHINE SIZE |
L×W×H(1020×1000×618)MM |
|
|
PACKAGE SIZE |
L×W×H(1150×1150×850)MM |
|
Equipment Advantages
1. All aluminum fine-milling beam,Printing accuracy is more stable
2.With thickened aluminum suction platform,Corrosion resistance,not easy to deform
3.The Y-axis makes the combination of two guides more accurate
4.UV LED curing system,curing degree is better and more stable
5.Automatic height measurement function,Fast and efficient
6.Lack of ink alarm system,filling ink without stopping
7.Two print heads configuration,White/color/varnish can be inking simultaneously
8.Rotary device can be optional for printing cylinder objects
9.Printable DTF crystal label.

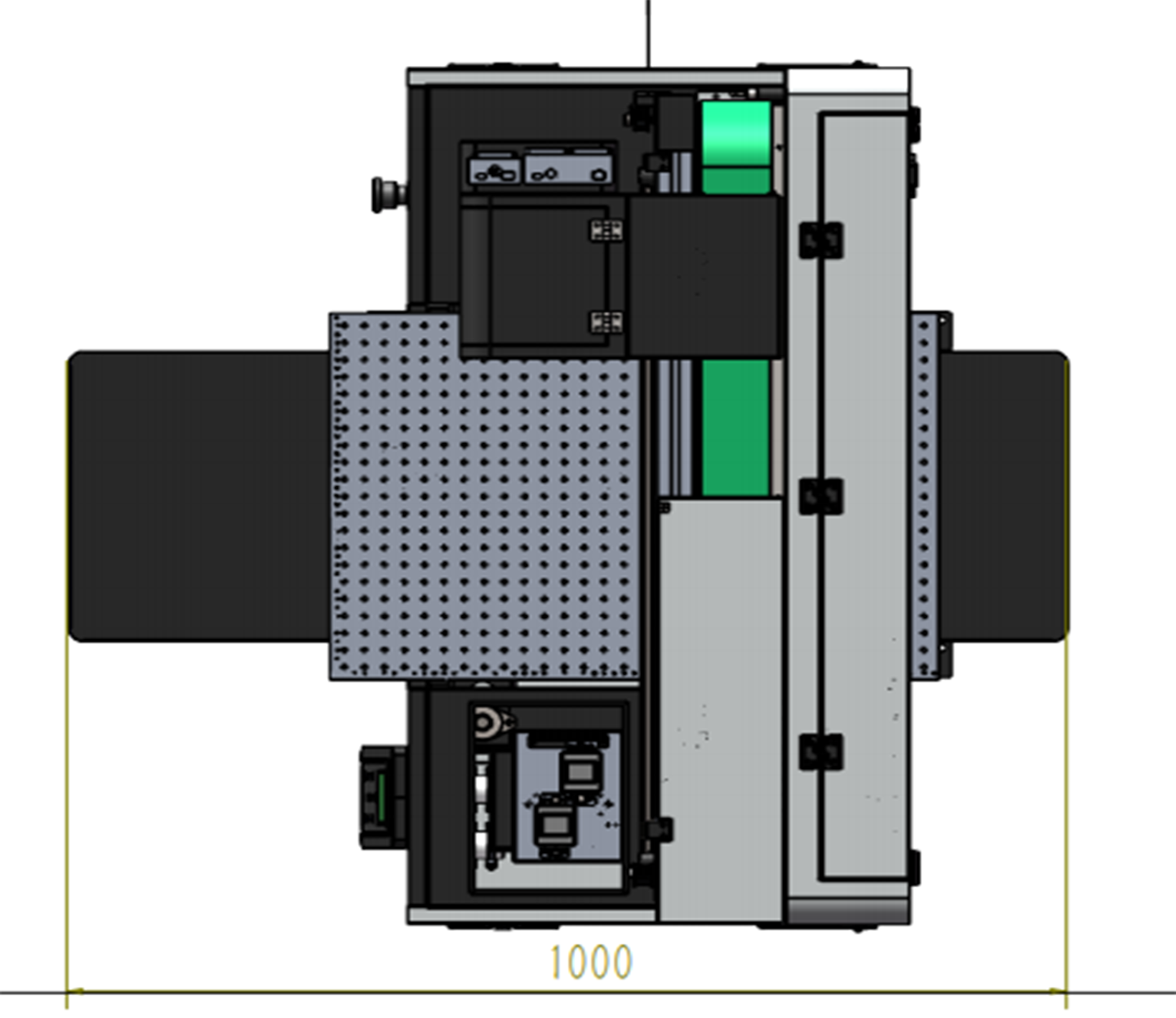

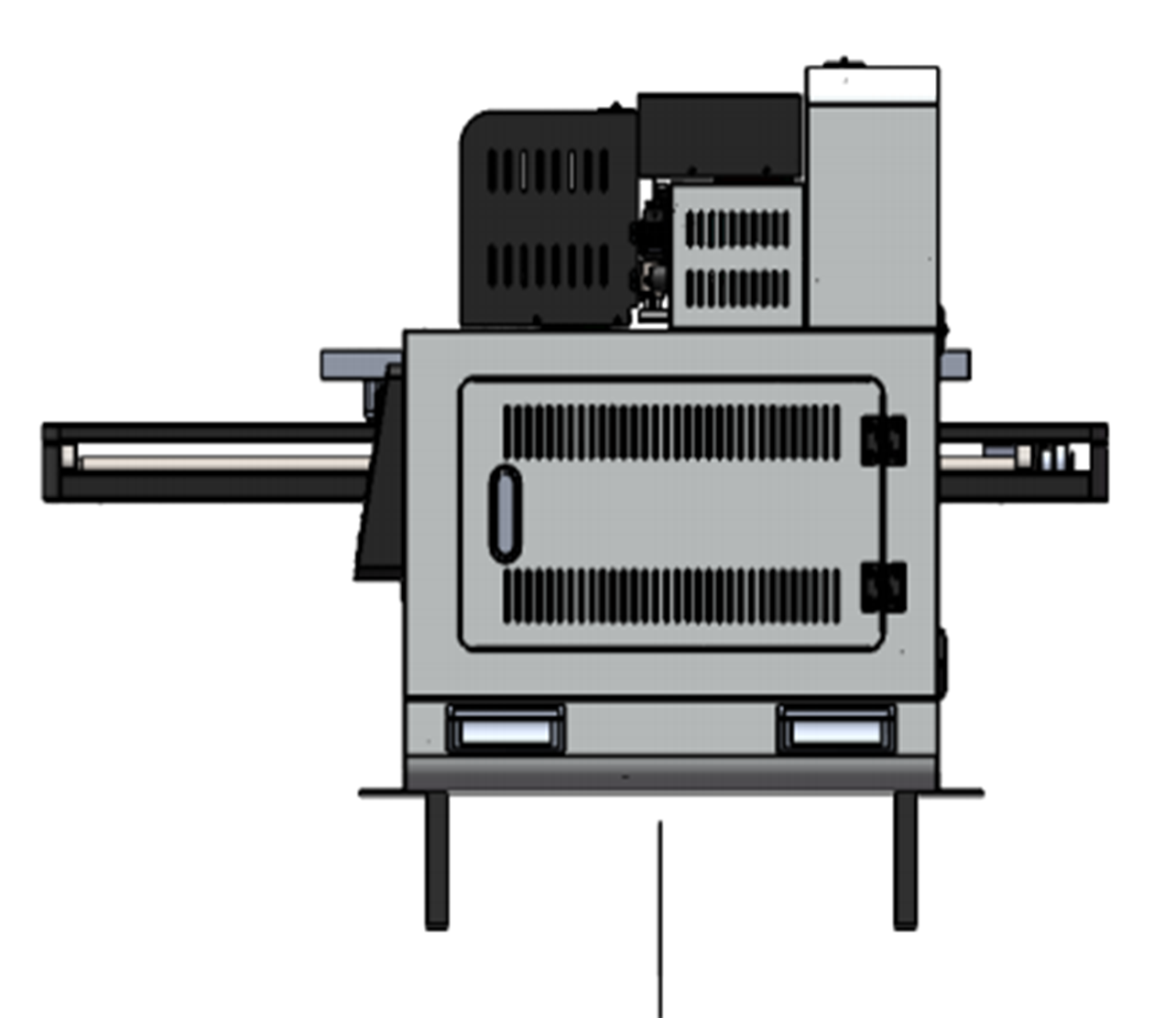

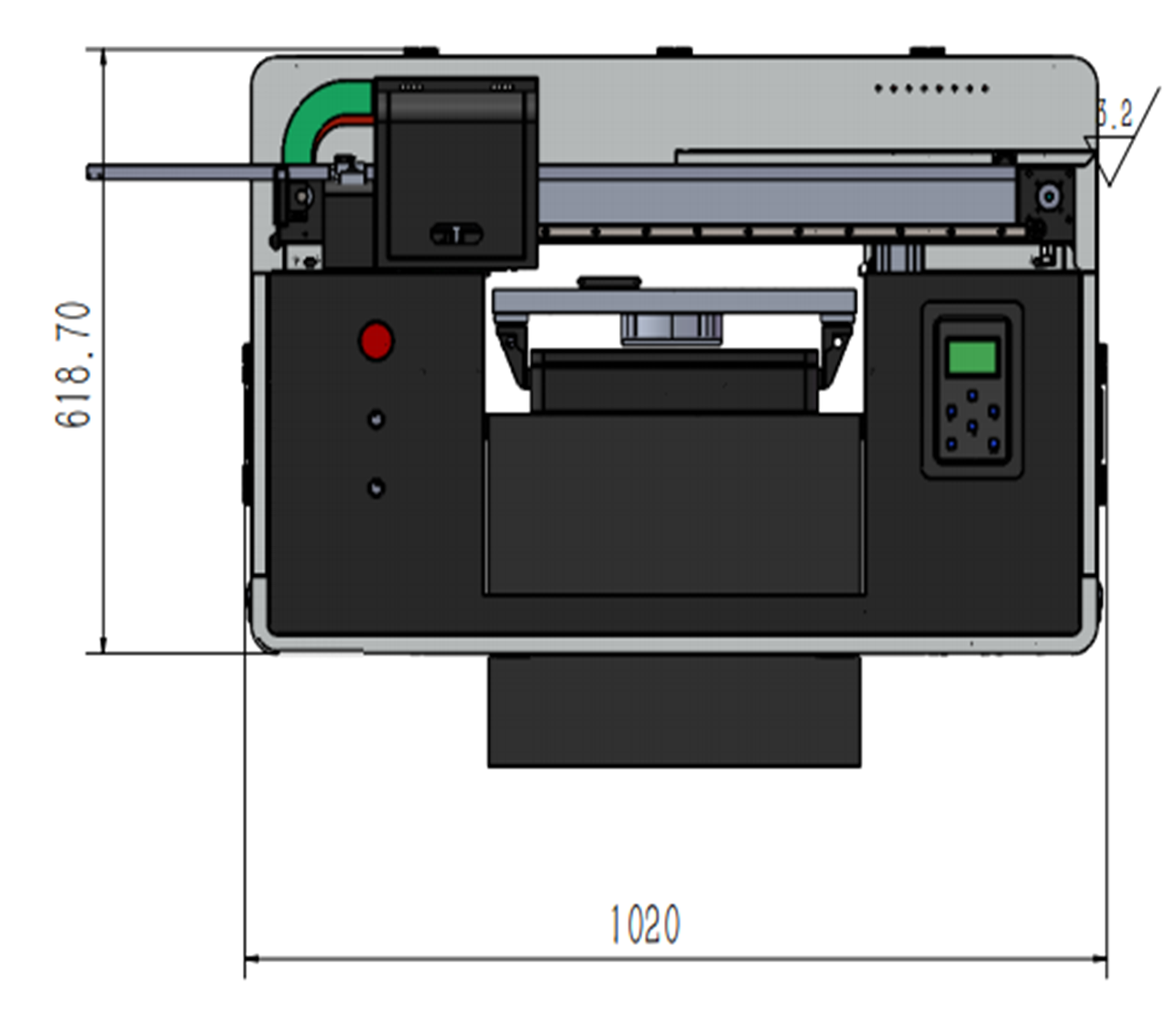

Mechanical Drawing of Product Display
-
uv printer 1
-
uv printer 2
-
uv printer 3
PRINT MIDIA
PRODUCTION APPLICATION
