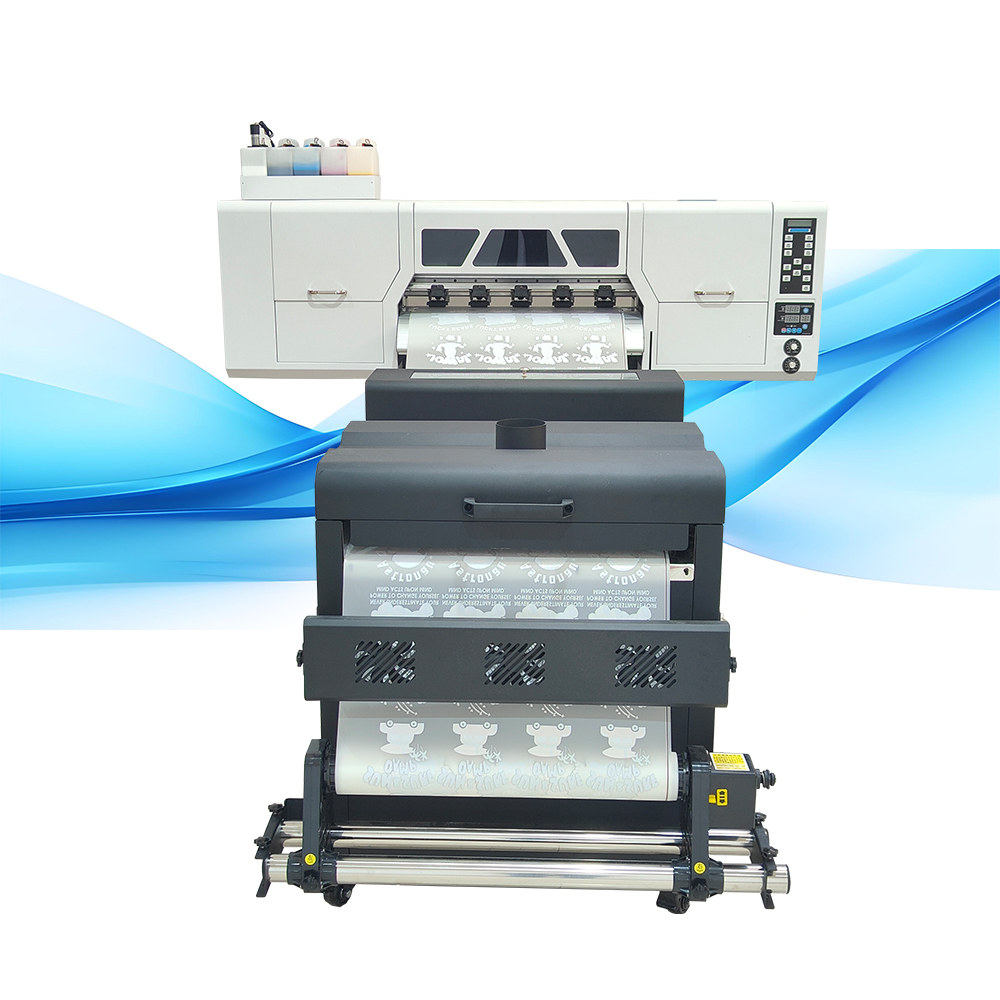

24 inch dtf transfer printing machine.jpg

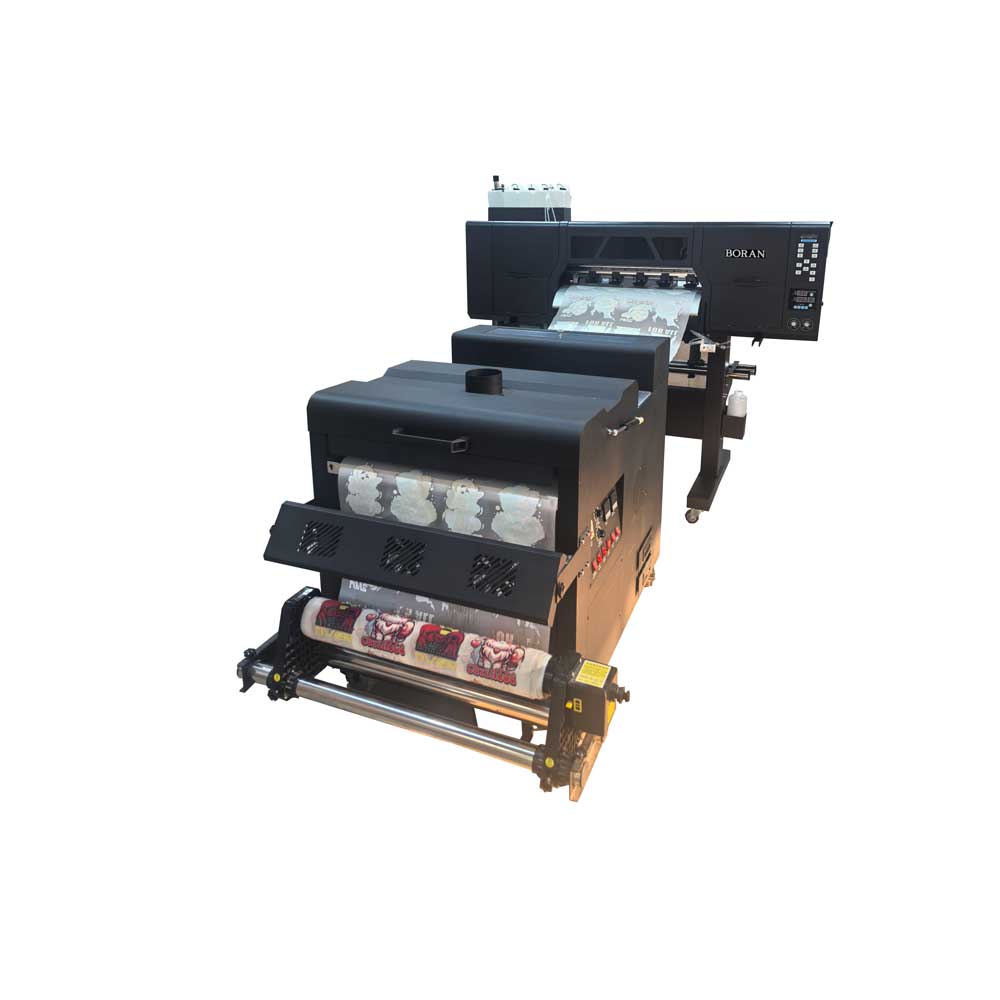

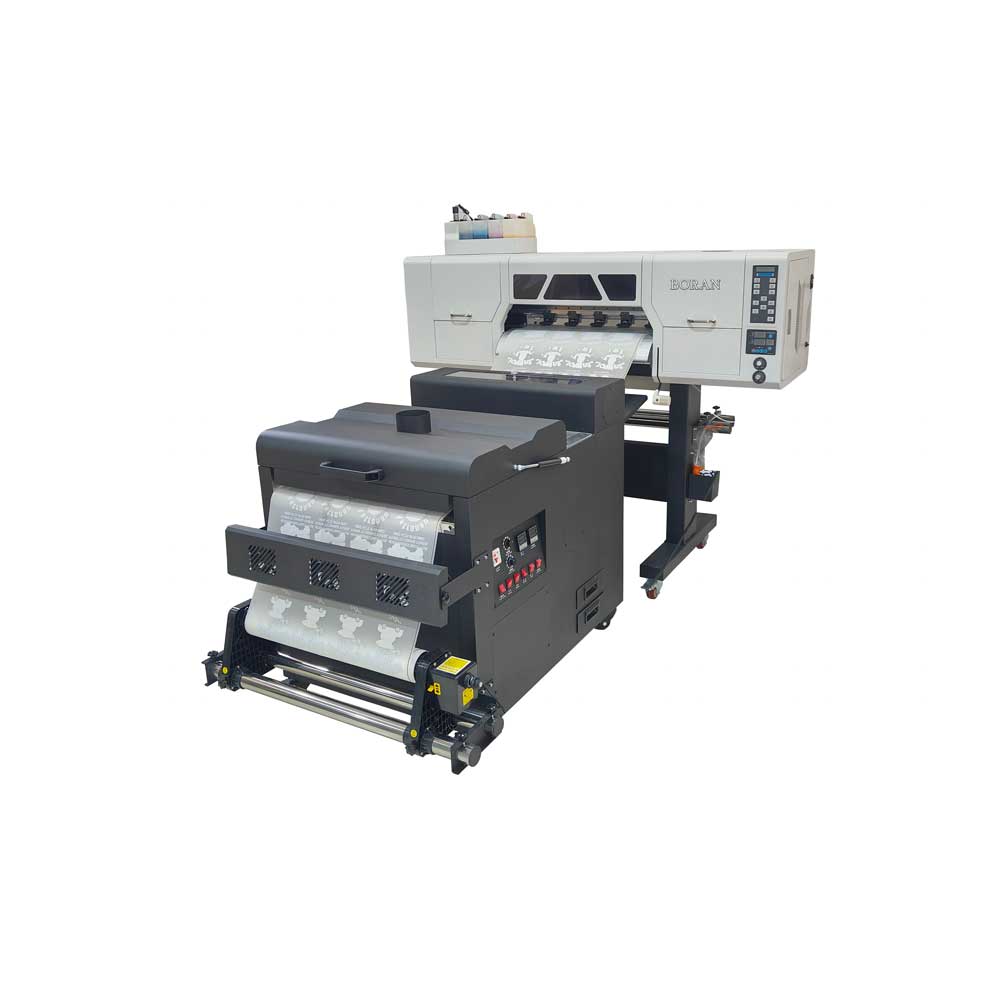

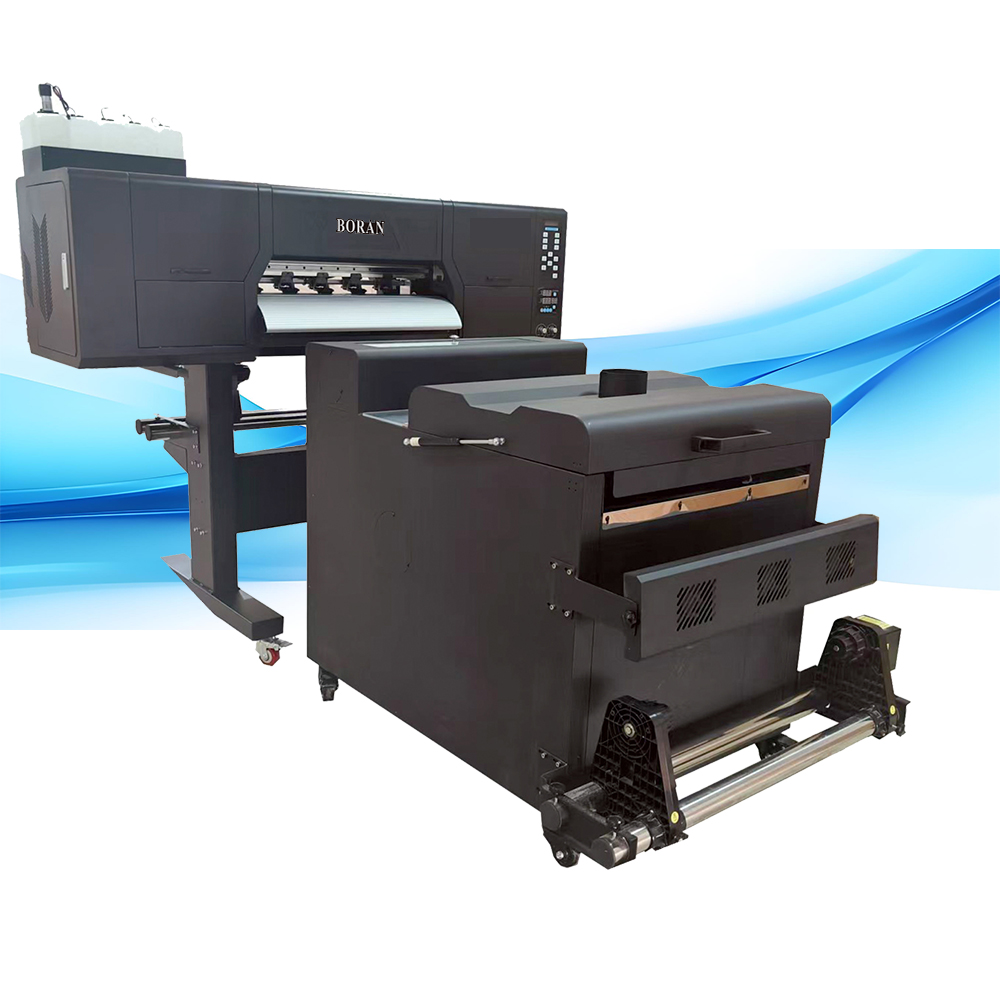

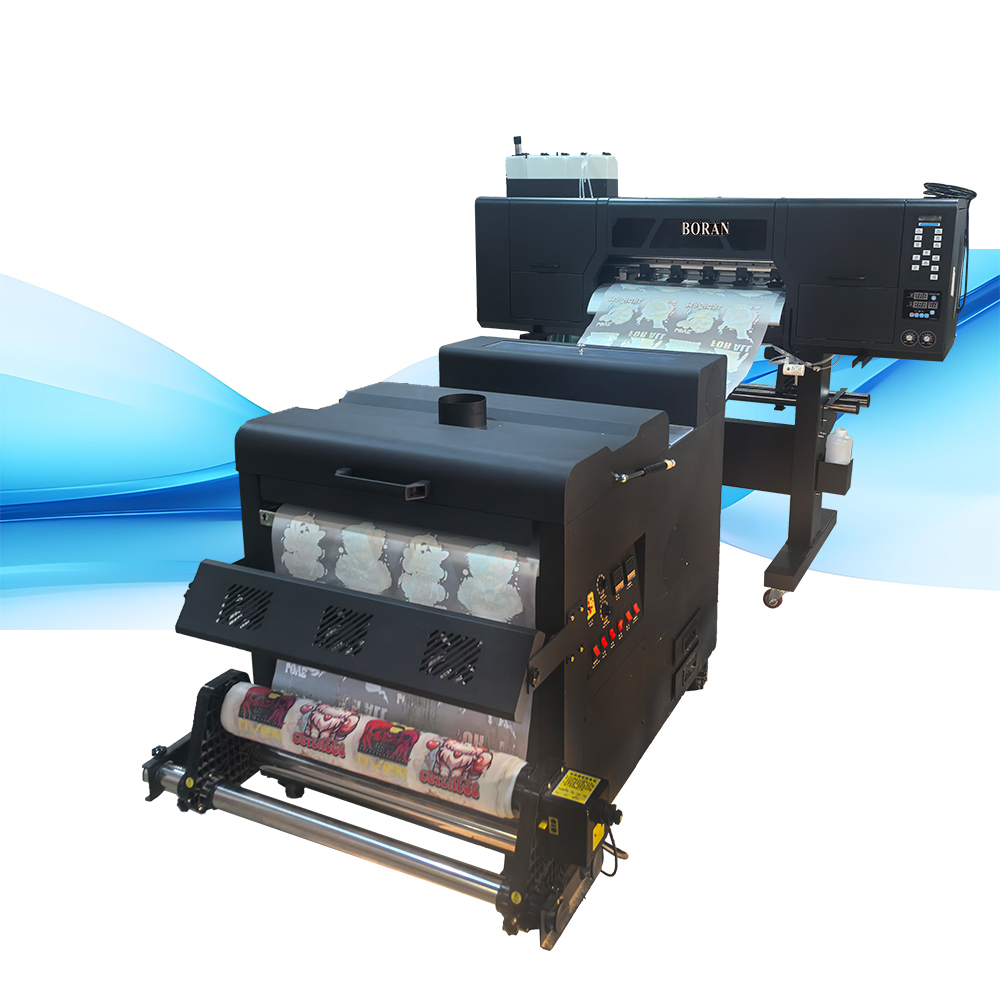

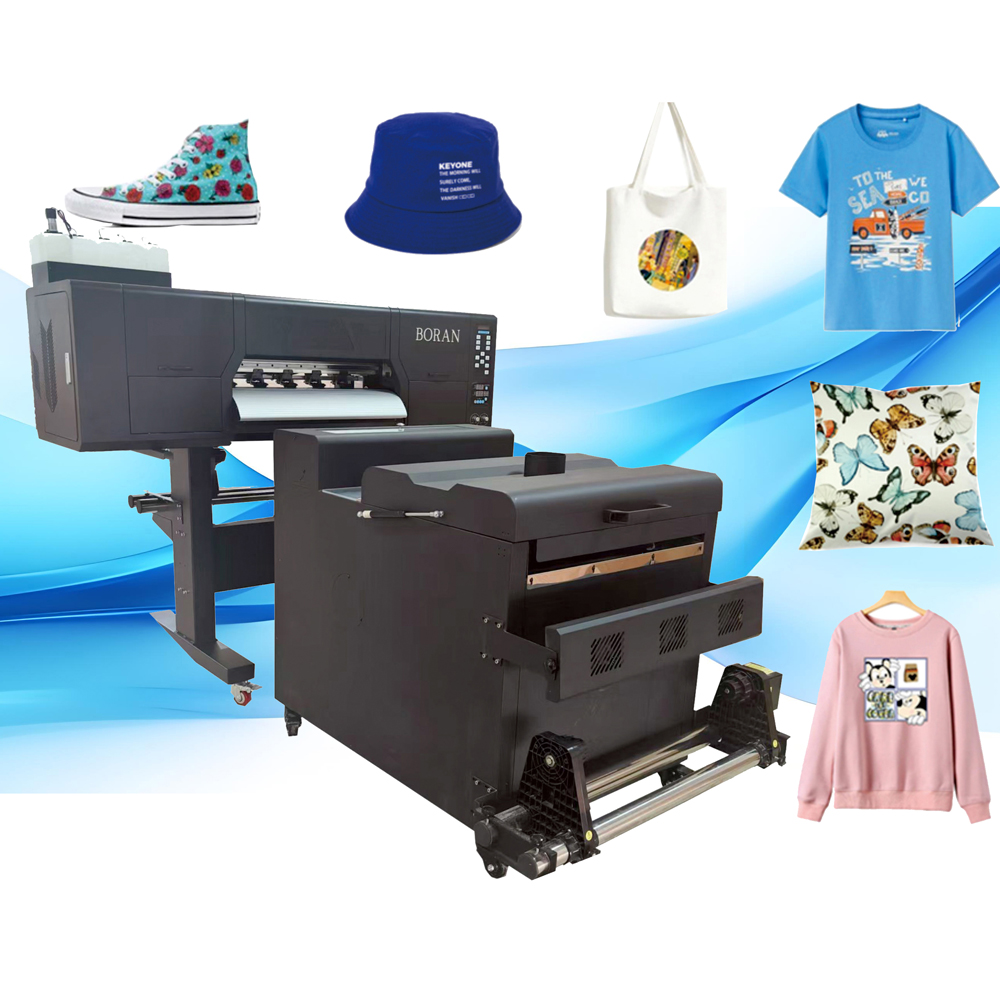

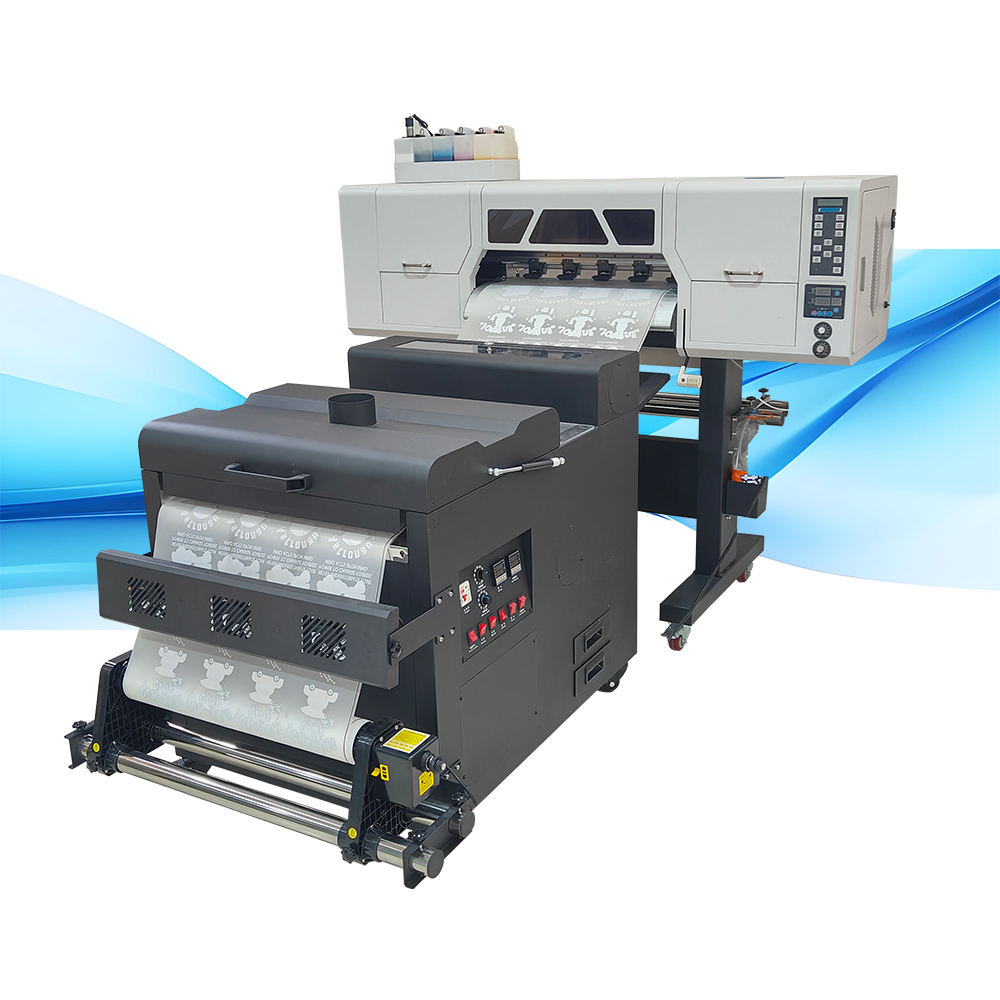

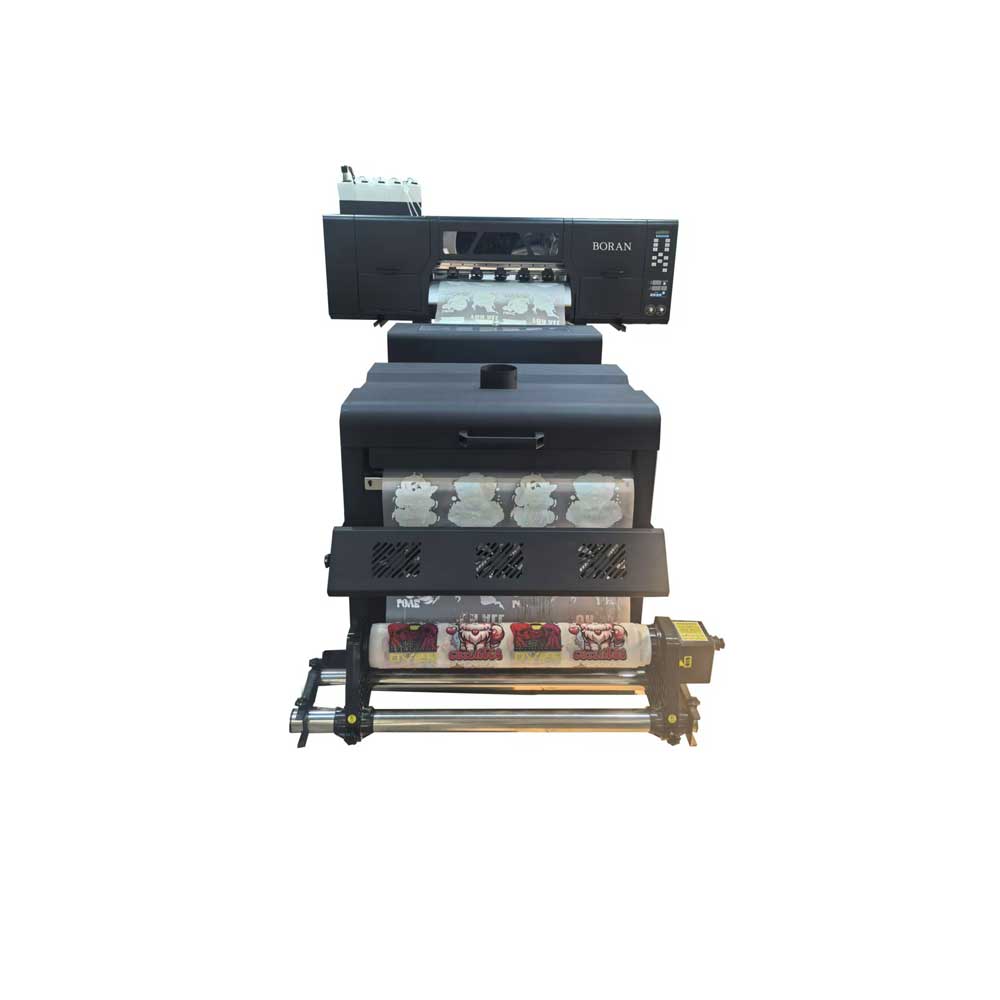

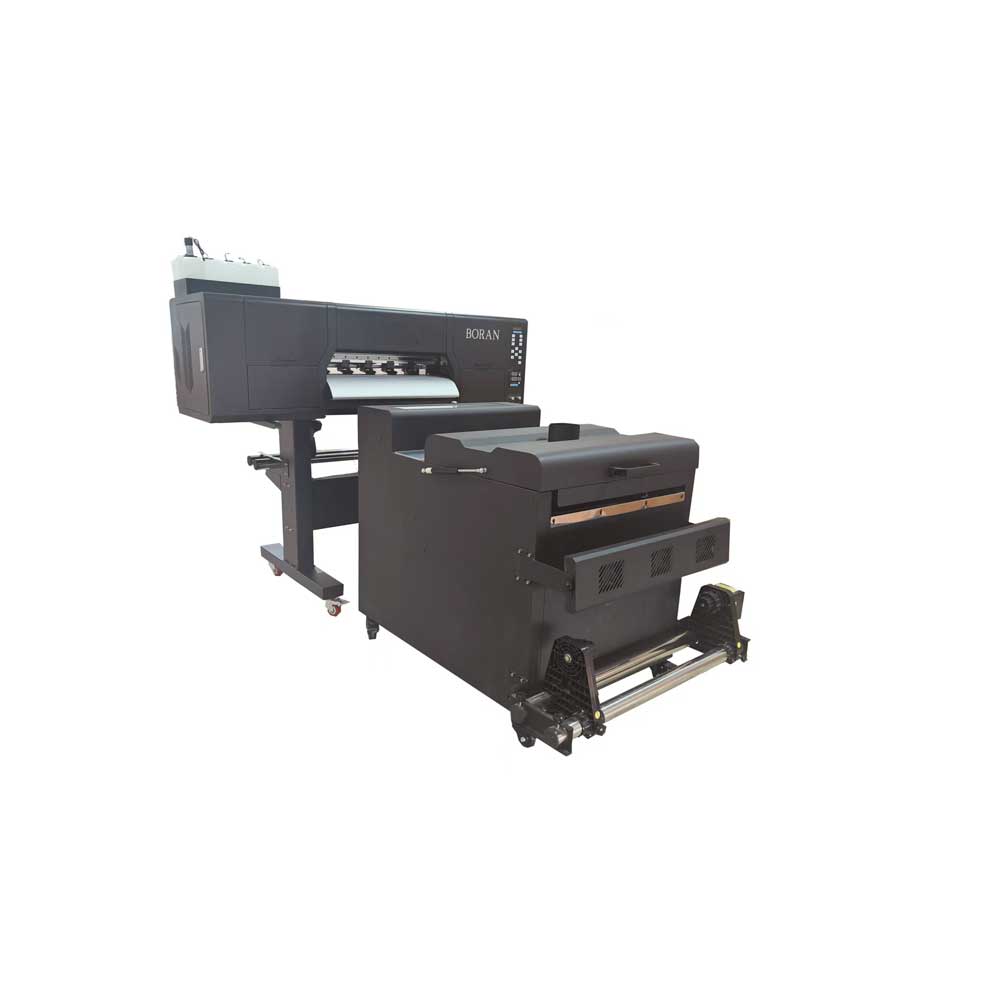

60CM A1 DTF PRINTER (DTF Transfer Film Printer)

Print heads: Epson XP600/i1600 /i3200 (2/4pcs)
Size: 60cm
Color: CMYK+white/Double CMYK+white
Speed: 10-30㎡/h
Application: 60CM A1 DTF PRINTER (DTF Transfer Film Printer) has been widely used for T-shirts .coat，socks, mouse pad.wallet, umbrella.jeans, canvas bag, caps etc.

Product Introduction

60CM A1 DTF PRINTER (DTF Transfer Film Printer) is a revolutionary new printing technique that's more affordable and accessible than screen printing and sublimation transfer. DTF required a special printer, special DTF ink, special DTF powder and DTF transfer film.

With DTF you can transfer to 100% cotton shirts and canvas, polyester, Nylon, etc. other fabric without pretreatment, saving a lot of money and time.

DTF is washable and has the better touching feel.

010203040506070809101112

Technicial Parameters

Model	BR-D600
Print Width (buffeting width)	60CM
Printhead	Epson XP600/i1600/i3200 heads
Pinthead Quantity	2 or 4 pcs
Print Media	Pet film
Ink	Textile pigment ink
Color	CMYK+W/Double CMYK+W
Color Gamut	ICC profile
Ink supply system	1.5L ink bottle with alarm function+secondary continuous ink supply system+white ink agitate and circulation
Speed	10-30m²/h
Print Media	PET Film
Heating System	Shake Powder Machine Built-in Infrared Drying
Take-up system	Automatic induction rewinding
Rip Software	maintop
Operation System	Windows 7/ Windows 10
Power Supply	AC 220V 50HZ
File Format	TIFF,JPEG，PDF
Environment	Humidity:40%-60%, Temperature:18℃-28℃
Machine Size	LWH(16507501550)MM (11009001100)MM
Package Size	LWH(1850950670)MM (12009501250)MM

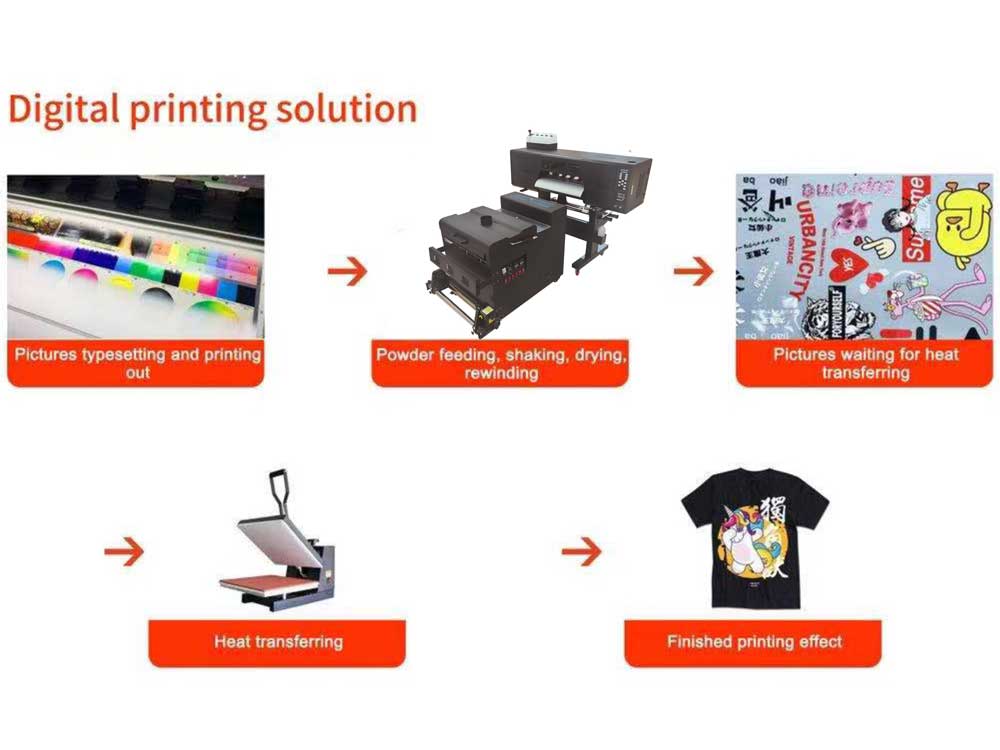

Working Process

1. Prepare design.

Printed on PET film with the printer, using CMYK+WHITE textile pigment ink.

Sprinkle powder,shake powder, heating PET film.

Transfer on T-shirt or other material with heat press machine.

Features

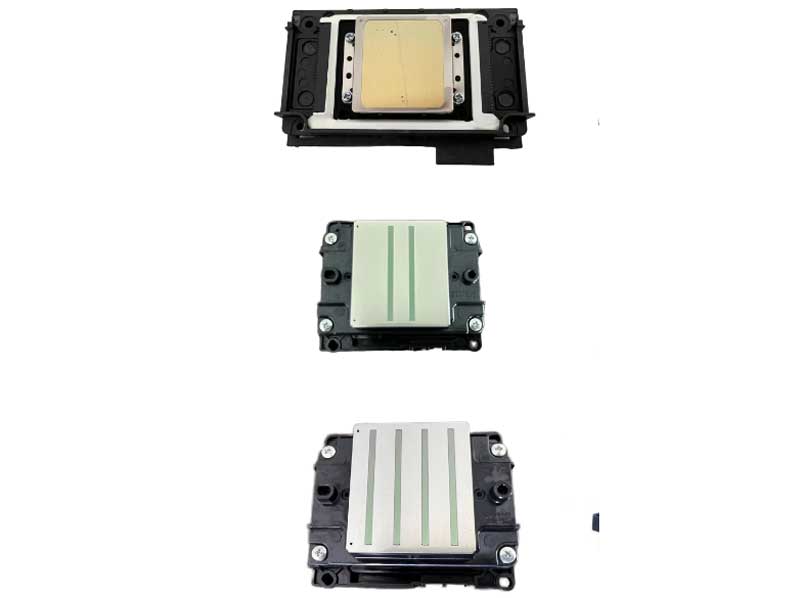

1. Brand dual or four heads

2/4 Epson XP600/i1600/i3200 heads enable efficient production and increase productivity.

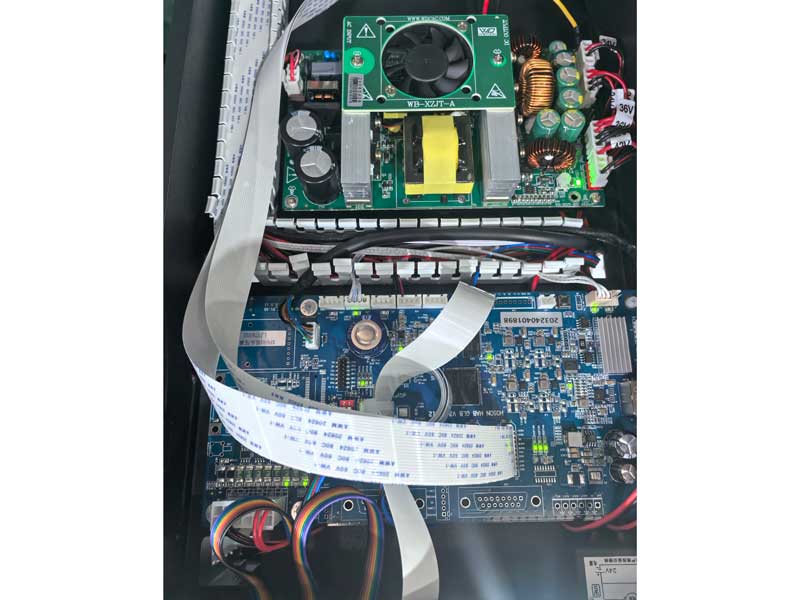

2. Stable brand boards system

Excellent brand Honson boards system, which makes printing more stable and precise.

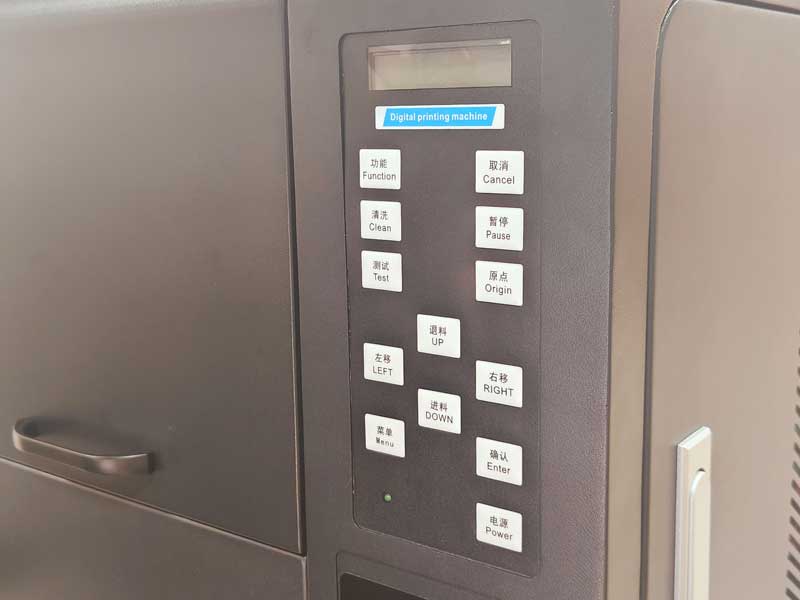

3. Intelligent control panel

English & Chinese button panel and simple operation panel , which make us easier to understand and use.

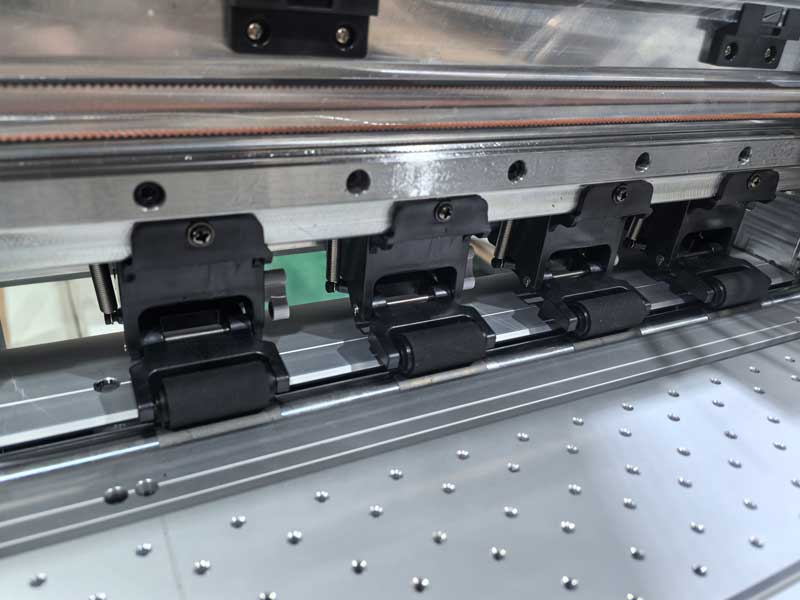

4. Heavy Pressure Rollers

Bold paper rollers and high elastic spring ,which ensures the printing more accurate and stable.

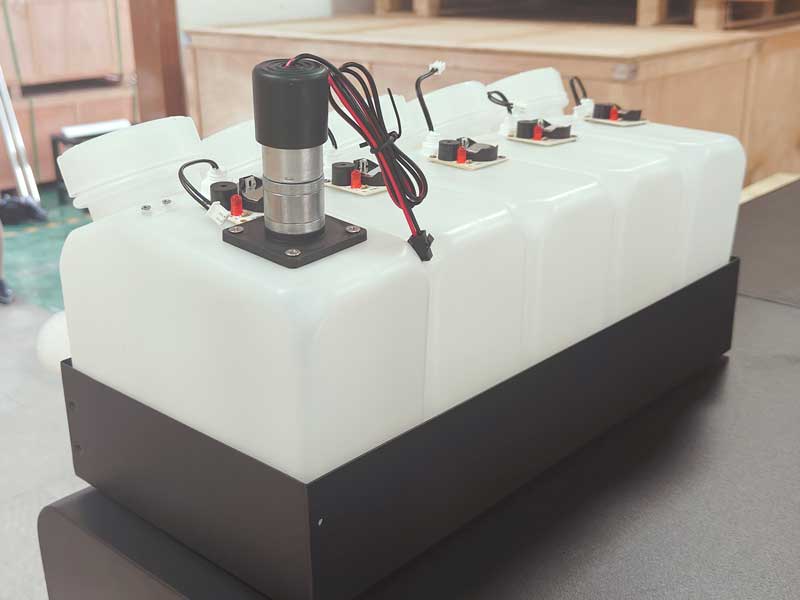

5. Ink Cartridge System

Big transparent ink cartridge with color marking and constant ink supply, which can prevent ink cut-off effectively.

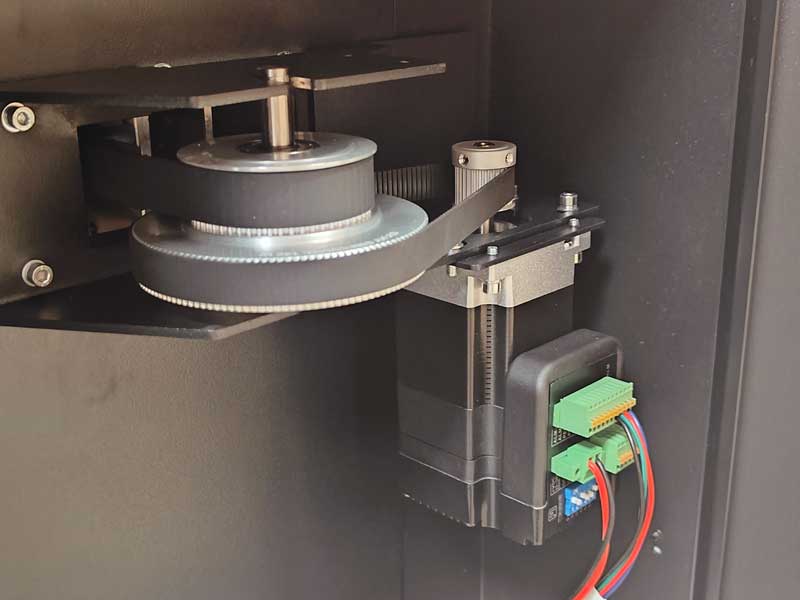

6. Brand Servo motor

High quality brand industrial servo motor system,which makes machine do printing job more stable

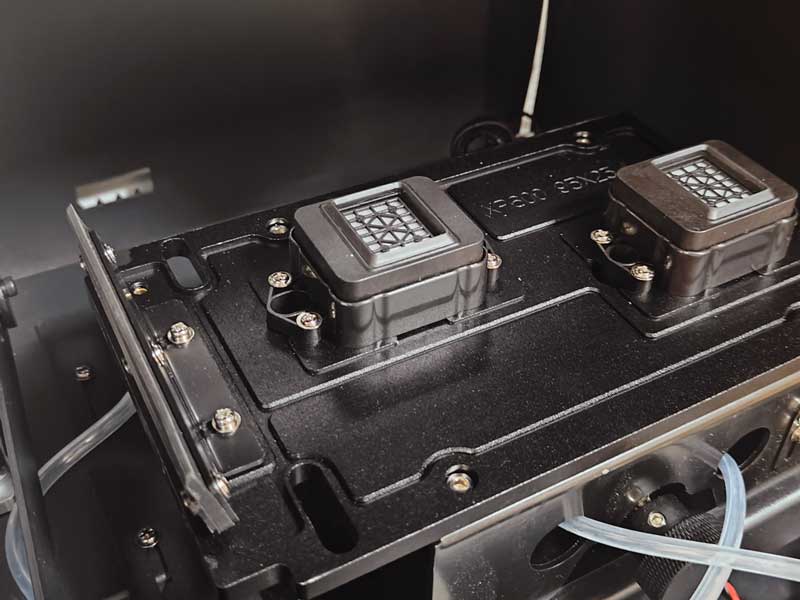

7. Capping Station Assembly

Lifting aluminum alloy capping station assembly

Intelligent automatic clean and maintain the nozzles

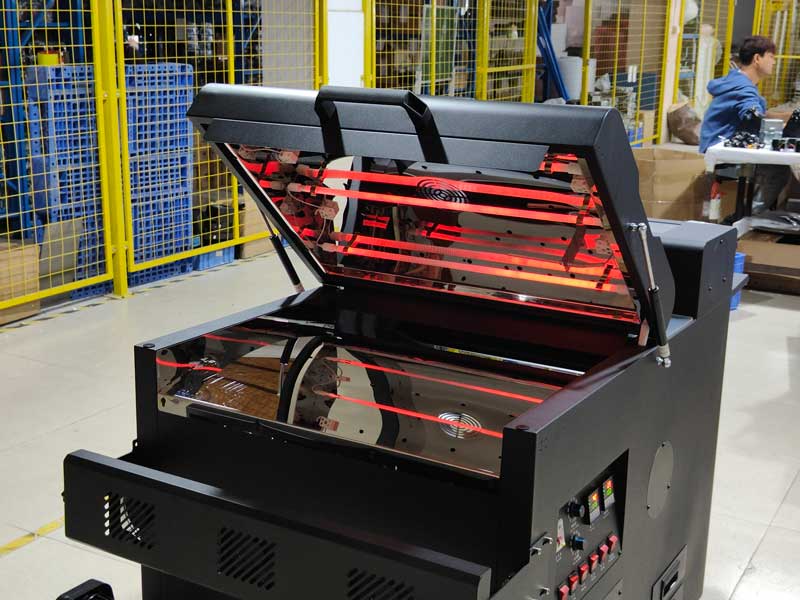

8. Drying Area of power shaker

More infrared heating tubes heating PET film more even and faster.

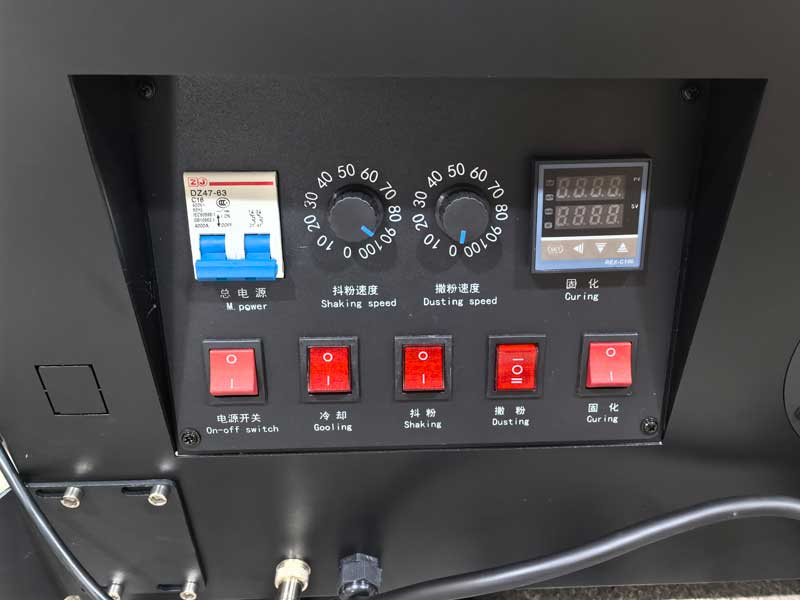

9. Intelligent control panel

Intelligent control panel can control and adjust the speed of power shaking and power can be shaken evenly and cleanly.

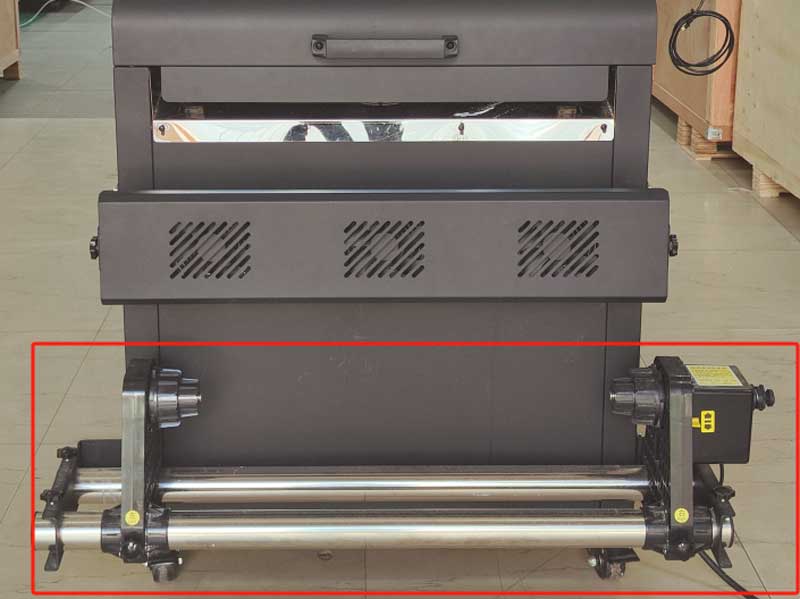

10. Automatic take up system

Automatic take up system PET film and the thickened steel pipe can get better load-bearing capacity

Application

Caps
Socks
Mouse Pad
Coat
T-shirt
Jeans
Wallet
Umbrella
Canvas bag

60CM A1 DTF PRINTER (DTF Transfer Film Printer)

Product Introduction

Technicial Parameters

Working Process

Features

1. Brand dual or four heads

2. Stable brand boards system

3. Intelligent control panel

4. Heavy Pressure Rollers

5. Ink Cartridge System

6. Brand Servo motor

7. Capping Station Assembly

8. Drying Area of power shaker

9. Intelligent control panel

10. Automatic take up system

Application

Caps

Socks

Mouse Pad

Coat

T-shirt

Jeans

Wallet

Umbrella

Canvas bag
